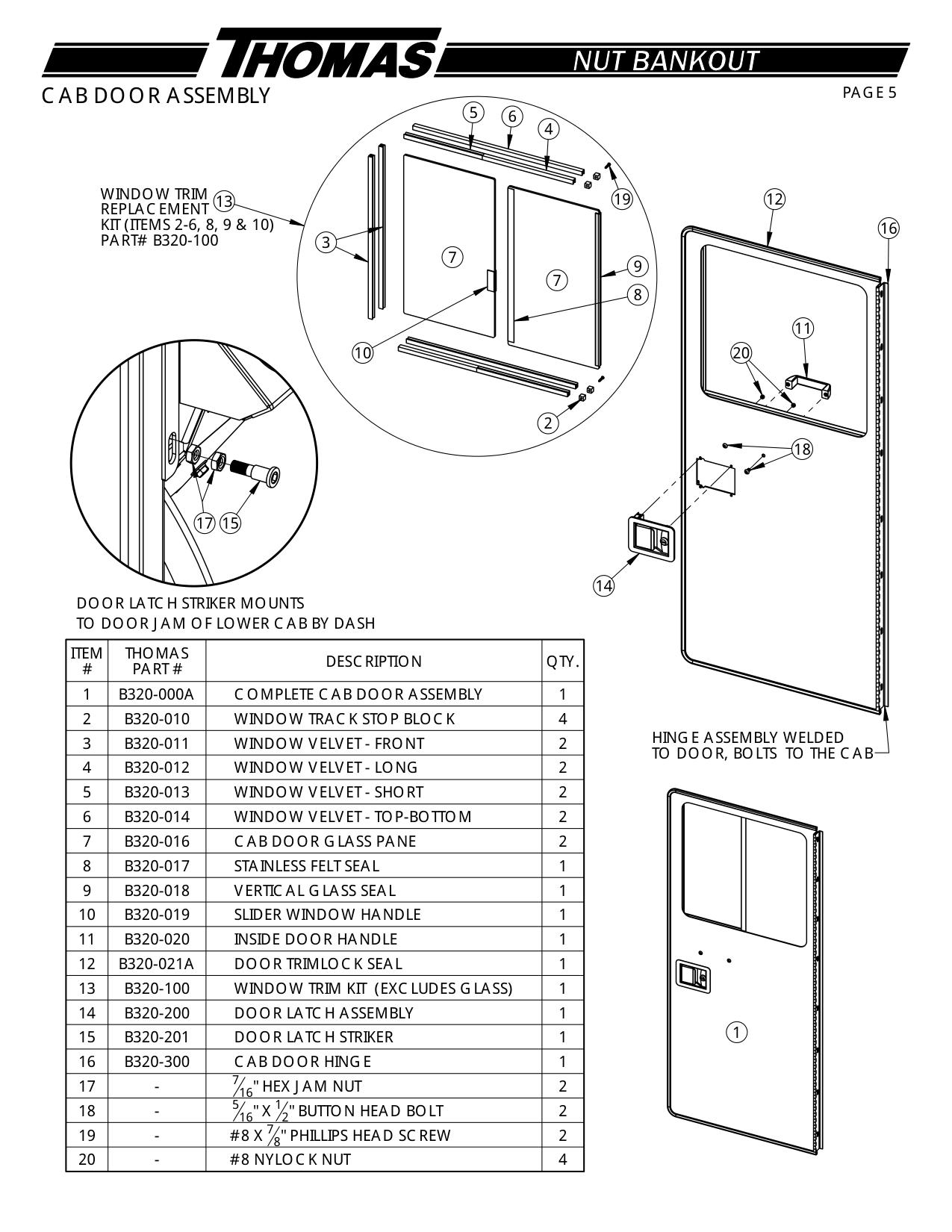

Cab Door Assembly · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B320-000A | COMPLETE CAB DOOR ASSEMBLY | 1 |
| 2 | B320-010 | WINDOW TRACK STOP BLOCK | 4 |
| 3 | B320-011 | WINDOW VELVET - FRONT | 2 |
| 4 | B320-012 | WINDOW VELVET - LONG | 2 |
| 5 | B320-013 | WINDOW VELVET - SHORT | 2 |
| 6 | B320-014 | WINDOW VELVET - TOP-BOTTOM | 2 |
| 7 | B320-016 | CAB DOOR GLASS PANE | 2 |
| 8 | B320-017 | STAINLESS FELT SEAL | 1 |
| 9 | B320-018 | VERTICAL GLASS SEAL | 1 |
| 10 | B320-019 | SLIDER WINDOW HANDLE | 1 |
| 11 | B320-020 | INSIDE DOOR HANDLE | 1 |
| 12 | B320-021A | DOOR TRIMLOCK SEAL | 1 |
| 13 | B320-100 | WINDOW TRIM KIT (EXCLUDES GLASS) | 1 |
| 14 | B320-200 | DOOR LATCH ASSEMBLY | 1 |
| 15 | B320-201 | DOOR LATCH STRIKER | 1 |
| 16 | B320-300 | CAB DOOR HINGE | 1 |
