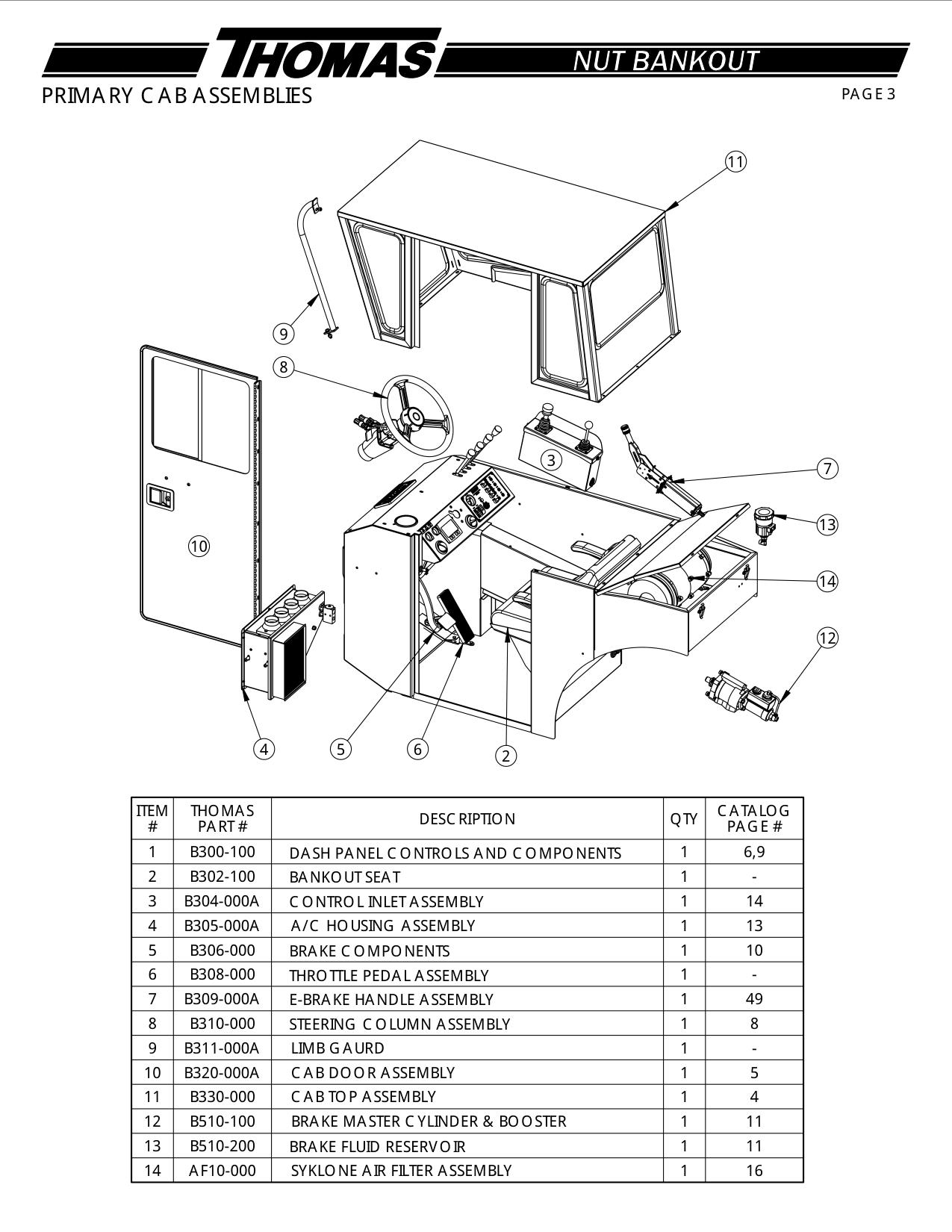

Primary Cab Assemblies · Thomas Thomas Bankout
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 1 | B300-100 | DASH PANEL CONTROLS AND COMPONENTS | 1 |
| 2 | B302-100 | BANKOUT SEAT | 1 |
| 3 | B304-000A | CONTROL INLET ASSEMBLY | 1 |
| 4 | B305-000A | A/C HOUSING ASSEMBLY | 1 |
| 5 | B306-000 | BRAKE COMPONENTS | 1 |
| 6 | B308-000 | THROTTLE PEDAL ASSEMBLY | 1 |
| 7 | B309-000A | E-BRAKE HANDLE ASSEMBLY | 1 |
| 8 | B310-000 | STEERING COLUMN ASSEMBLY | 1 |
| 9 | B311-000A | LIMB GAURD | 1 |
| 10 | B320-000A | CAB DOOR ASSEMBLY | 1 |
| 11 | B330-000 | CAB TOP ASSEMBLY | 1 |
| 12 | B510-100 | BRAKE MASTER CYLINDER & BOOSTER | 1 |
| 14 | AF10-000 | SYKLONE AIR FILTER ASSEMBLY | 1 |
