← Jackrabbit Yard Dog 36/36 Elevator (Deutz)

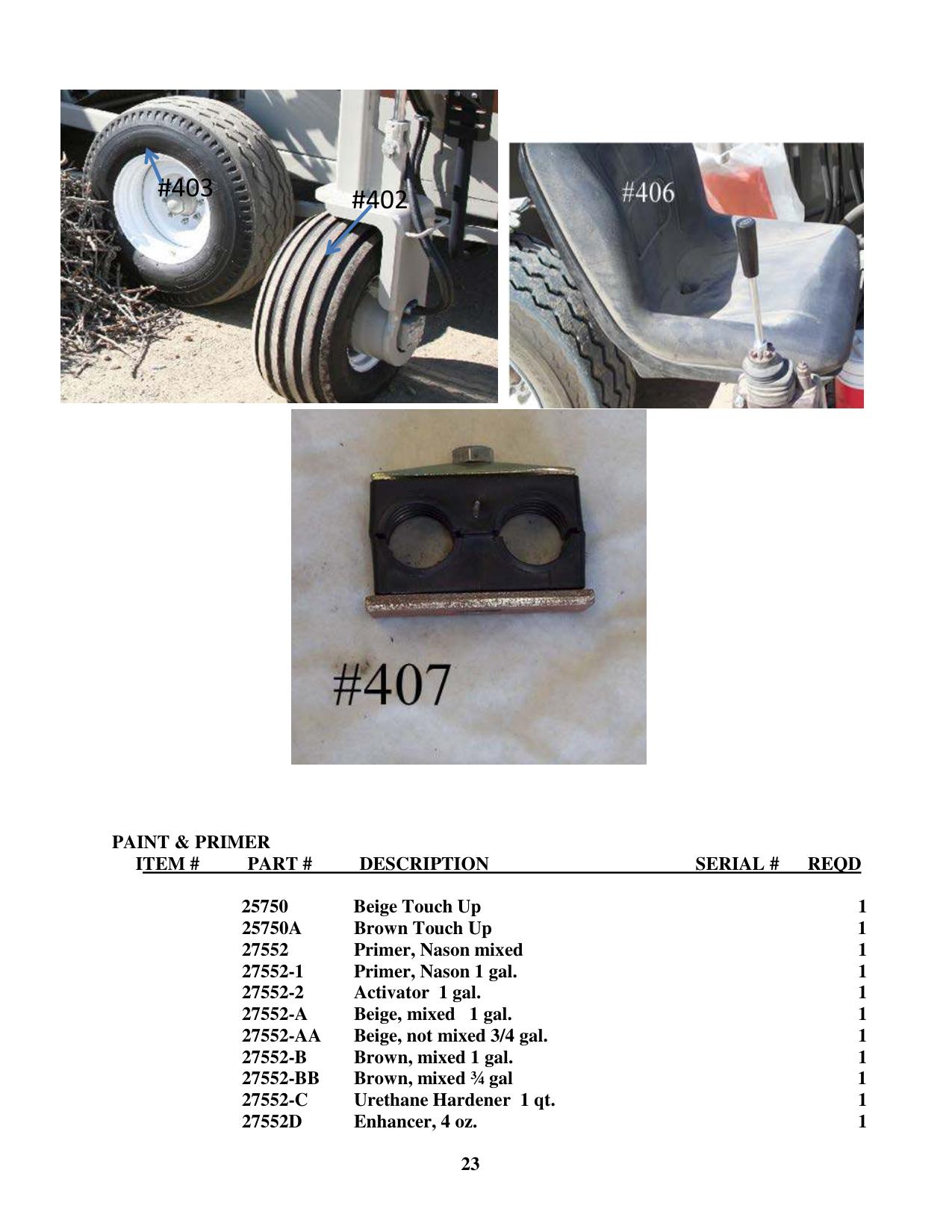

Paint & Primer · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 600 | 22977 | VAK 1” Pillow Block Bearing | 10 |
| 601 | 26201 | 6T 550 Eccentric Sprocket W/Bearing 5/8” Bore | 4 |
| 602 | 26201A | 6T 550 Concentric Sprocket W/Bearing 5/8” Bore | 2 |
| 603 | 26201B | 6T Idler Sprocket | 2 |
| 604 | 22983 | 8T 550 Idler – AETNA 5/8” Bore | 1 |
| 605 | 26202 | 11T 550 1” ID Sprocket | 4 |
| 610 | 29519 | (24” x 221”) Giant Z Incline Belt, Almonds & Walnuts | 1 |
| 615 | 27523C | 24” Lacing Pin | 1 |
| 620 | 28530A | Desticker Chain Weldment (36”) | |
| 621 | 29560 | Desticker Master Link Bar W/6 Flags | |
| 622 | 29559 | Desticker Master Link Bar W/ 5 Flags | |
| 623 | 29562 | Desticker Master Link Bar W/Fingers | |
| 624 | 26046 | Flags (Only) | |
| 627 | 25717 | CA 557 Master Link W/A4 Attachment | 2 |
