27017 Wheel Mtr. · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (Deutz)

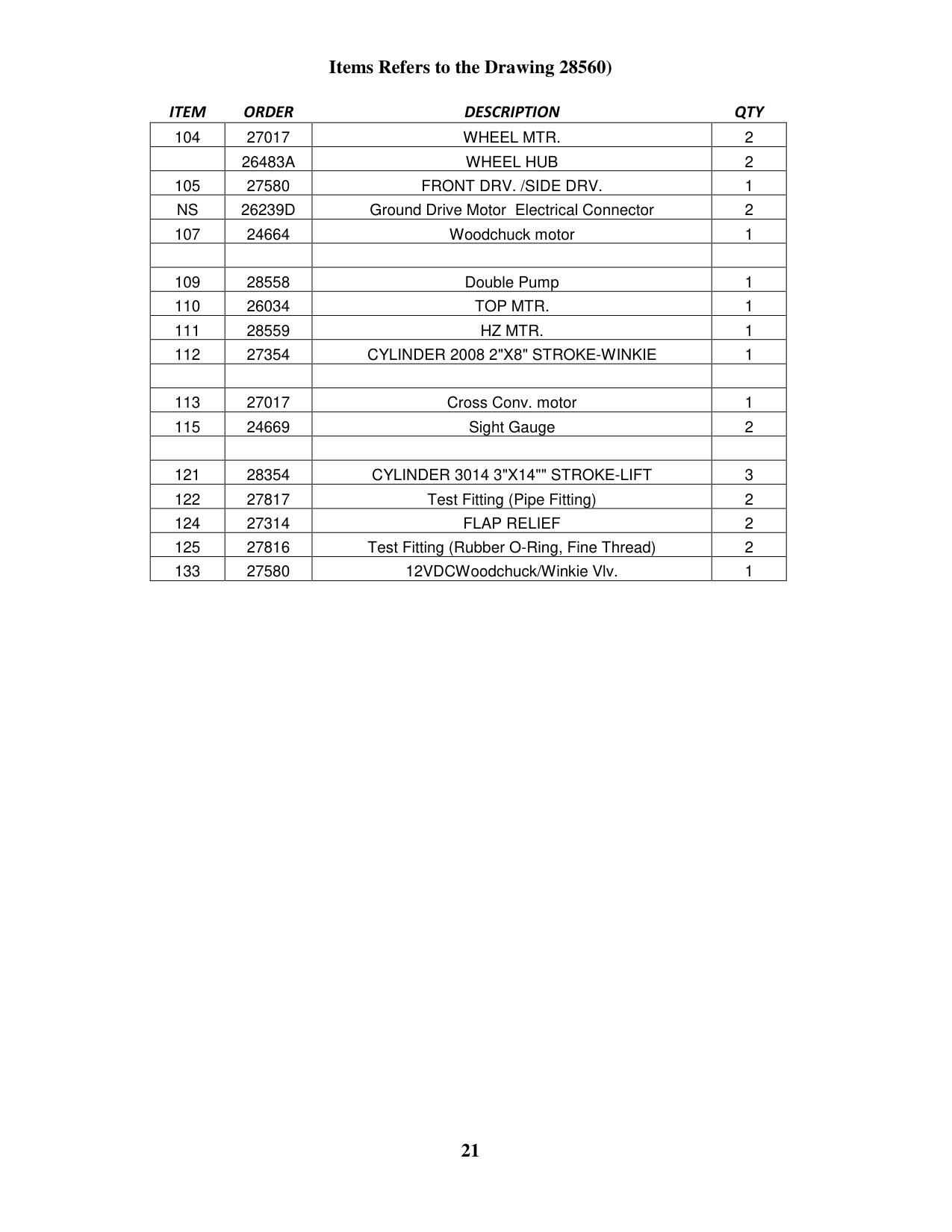

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 300 | & 9 22097 Bearing (1-1/2” Pillow Block) | 2 | |
| 301 | & 11 23524 Bearing Frangette (snub roller) | 2 | |
| 302 | & 15 26614 Bearing (Idler pulley Incline Conveyor) | 2 | |
| 303 | & 13B 27306 Bearings for Return Rollers | 16 | |
| 304 | & 32 22977 Bearings for idler Pulley (horz. Conveyor) Pillow Block 1-1/4” | 2 | |
| 305 | & 33 26464 Bearings Pad | 8 | |
| 320 | 28512 | (36” x 65’ 8”) Giant Z Incline Belt | 1 |
| 321 | 28513 | (36” x27’) Giant Z Bin Belt | 1 |
| 330 | 24538 | JackRabbit Brown 6” | 2 |
| 400 | 28335 | Axel Torflex (new 2008) | 1 |
| 400A | 28336 | Rim 16.5 x 9.75 80N 6.5” Bolt Circle | 2 |
| 400B | 27020A | Tire # 16.5-14Ply | 2 |
| 401 | 26482 | Rim Right Non Driving (side travel) | 1 |
| 402 | 26482A | Rim Left Driving (side travel) | 1 |
| 403 | 26481 | Tire 26 x 12 -12 10ply | 2 |
| 406 | 26766A | Seat #55TBL | 1 |
| 407 | 24752 | Pipe Clamp 518000 1” | 2 |
