← Jackrabbit Yard Dog 36/36 Elevator (Deutz)

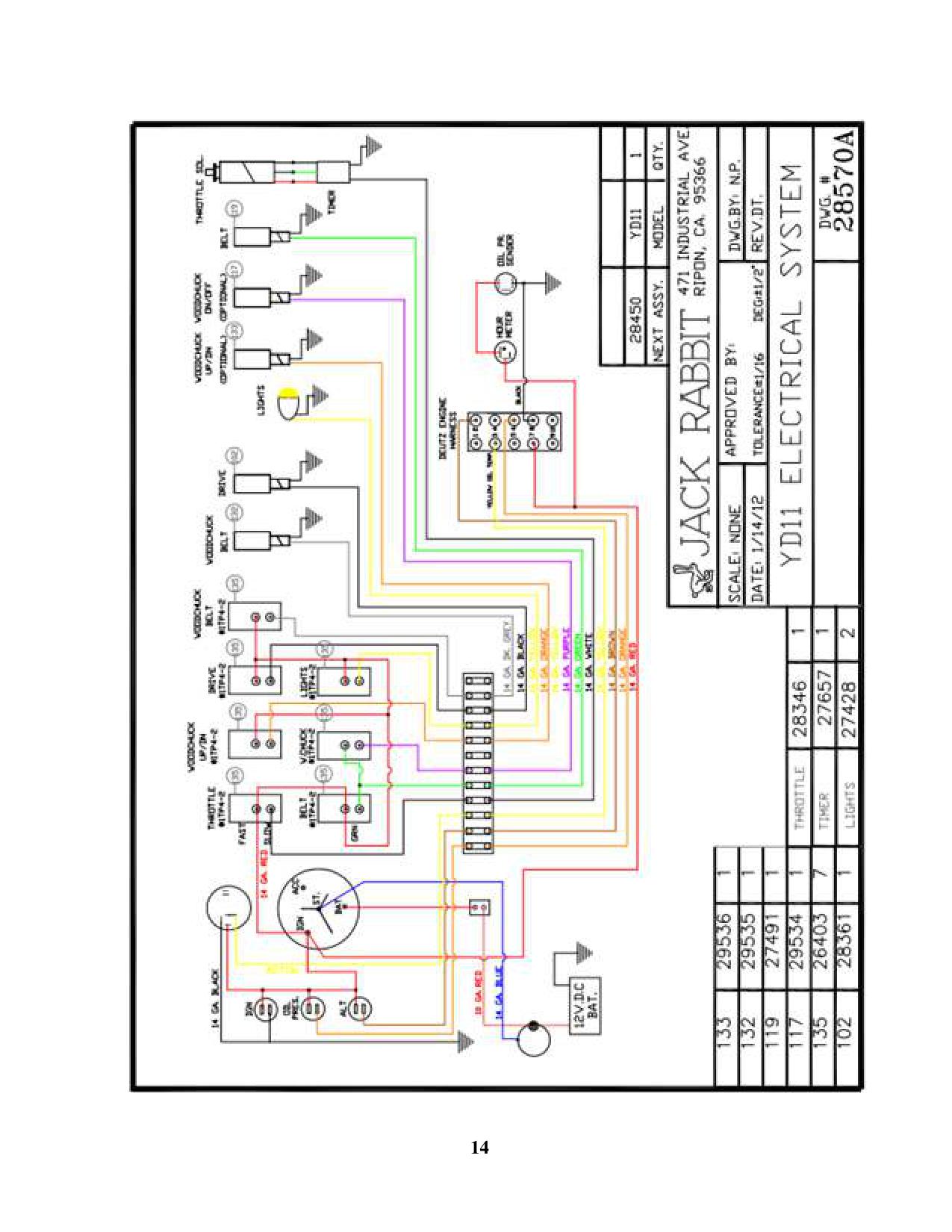

Figure 11 · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 201 | 27787 | Circuit Breaker 5 AMP | 1 |
| 202 | 22416 | Key Switch | 1 |
| 202A | 22416A | Key Polak | 1 |
| 203 | 27428 | Light (for belts & night operation) | 3 |
| 204 | & 120 28485 Oil Pressure Sender | 1 | |
| 205 | & 121 27131A Oil Temperature Gauge 2” hole | 1 | |
| 205A | & 122 28486 Oil Temperature Sender | 1 | |
| 206 | 27145 | Deutz Idiot Light Assembly (for engine monitoring) | 2 |
| 206A | 27123 | Light Bulb only | 1 |
| 208 | 26403 | Rocker Switch (1TP4-2) | 7 |
| 209 | 29619 | Terminal Strip, 12 gang | 1 |
| 251 | 22283 | Cap, Hydraulic Tank Filler | 1 |
| 252 | 28354 | Cylinder 3” x 14” Stroke (lift) 3014 | 3 |
| 254 | 27354 | Cylinder (winkie) 2” x 8” stroke | 1 |
| 256 | Filter Assembly | 1 | |
| 257 | 26945 | Cylinder 2” x 4” Stroke (flap) | 2 |
| 258 | 24403 | Flow Control FC51-3/4” SAE | 1 |
| 260 | 24669 | Gauge, Sight Level | 1 |
| 261 | 28562 | Manifold | 1 |
| 262 | 27318 | Coil | 3 |
| 263 | 27316 | Waterman Cartridge, | 1 |
| 264 | 27315 | Relief (belt) RPGC FAN | 1 |
| 265 | 27817 | Test Fitting | 2 |
| 266 | 27314 | Relief Valve RPEC | 1 |
| 267 | & 4 26034 Motor (incline belt) | 1 | |
| 268 | & 40 28559 Motor (Horz.) | 1 | |
| 269 | 28556 | Motor, wheel (forward travel) | 1 |
| 270 | 28365 | Wheel Hub, | 1 |
| 271 | 28556 | Motor, wheel (side travel) | 1 |
| 272 | 26365 | Wheel Hub | 1 |
| 273 | 28558 | Pump Double | 1 |
| 273A | 28561 | Drive Plate & Coupling, | 1 |
| 274 | 24671 | Suction Flow Strainer | 1 |
| 276 | 28335 | Valve, Relief (flaps) RPEC FAN | 2 |
| 277 | 28356 | Body FEI | 2 |
| 279 | 28359 | Valve (steering/drive control) | 1 |
| 280 | 28360 | Handle (steering/drive valve) | 1 |
| 281 | Valve for Rear Drive (SP5/1PKG328L/AET) | 1 |
