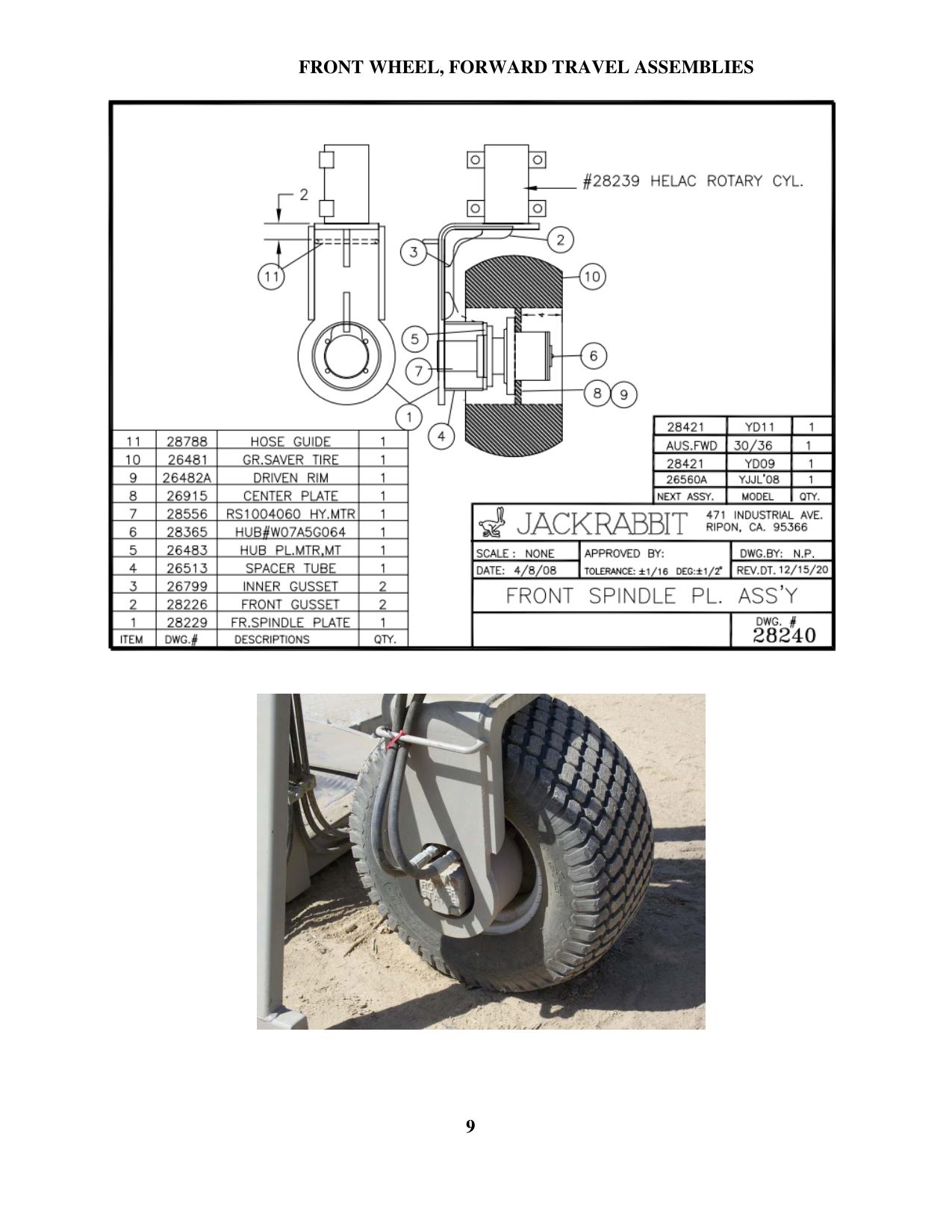

Front Wheel, Forward Travel Assemblies · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (Deutz)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 77 | 28239 | Helac Rotary Actuator | 1 |
| 78 | 28354 | Cyl #14” Stroke | 1 |
| 100 | 28330 | Air Filter Primary | 1 |
| 100A | 28331 | Air Filter Safety | 1 |
| 100B | 28339 | Air Pre- Cleaner, Best #EX30 | 1 |
| 100C | 29436 | Air Intake Tube (Short) | 1 |
| 101 | 27803B | Alternator | 1 |
| 102 | 24751 | Cap, for fuel tank | 1 |
| 105 | Dip Stick (refer to serial number on Dip Stick) | 1 | |
| 108 | 27959 | Rubber Ring Isolator Duetz Engine | 1 |
| 110 | 27168C | Fan Belt | 1 |
| 111 | 27011 | Fuel Filter Duetz for TD | 1 |
| 112 | 27943 | Fuel Strainer | 1 |
| 113 | 27490 | Fuel Gauge | 1 |
| 114 | 28481 | Fuel Injector Return Line Kit | 1 |
| 115 | 27203C | Fuel Pump | 1 |
