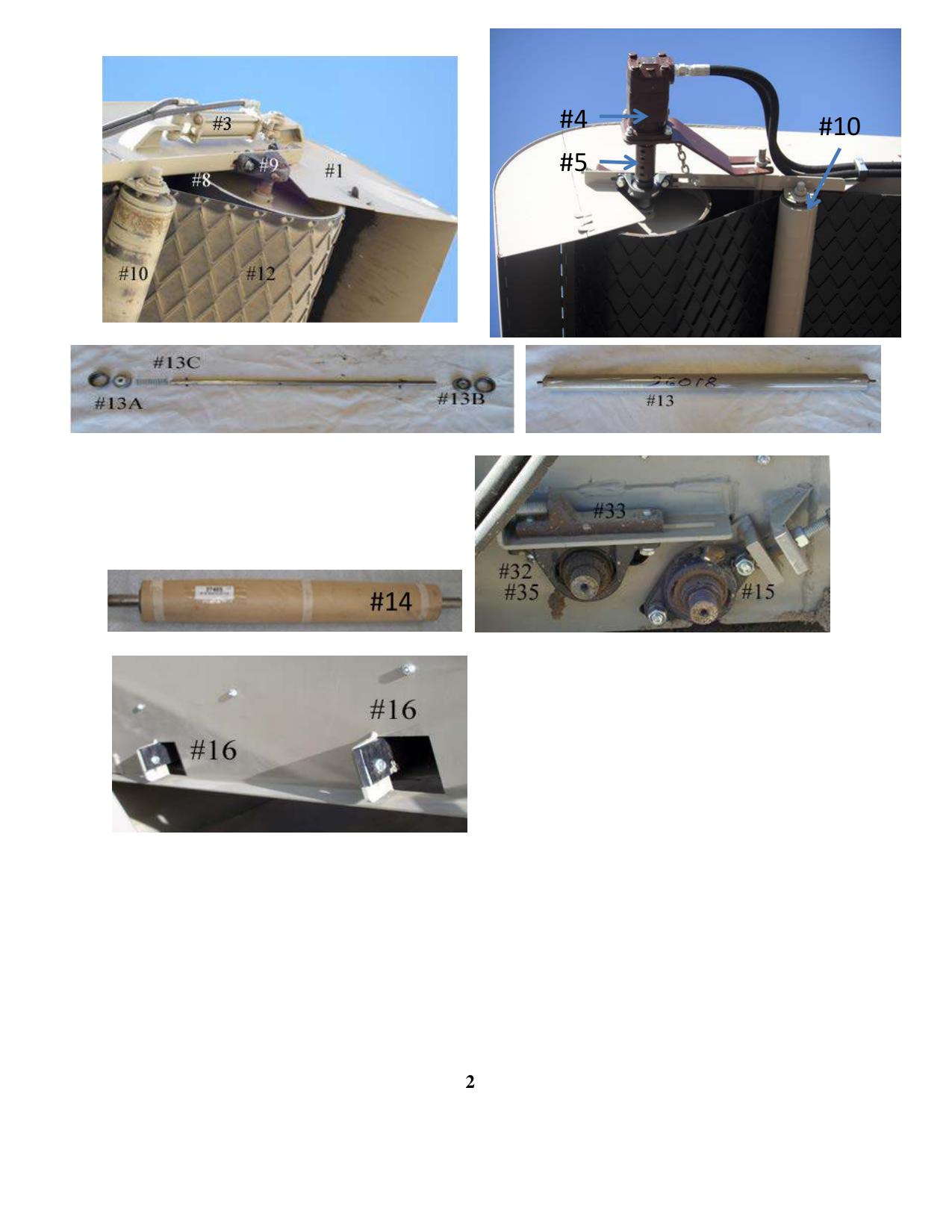

Figure 2 · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (Deutz)

Tap a circled number on the diagram to identify the part.

#	Part number	Description	Qty
30	28513	(36” X 27’) Giant Z, Bin Belt	1
30A	27523C	36” Pin (for lacing)	1
30B	29617	36” Lacing (set)	1
32	22906	Bearing VAK 1-1/4” Pillow Block (idler pulley)	2
33	26464	Bearing Pad	2
34	28413	Drive Pulley 36”	1
35	28518	Bearing (drive pulley)	2
36	25221	12T 80 Taper-Lock Sprocket	1
37	25312	12T Sprocket #80 chain drive	1
38	27457	21T Drive Sprocket 1 ¼” bore (For Wood Chuck)	1
39	25103	80 Roller Chain, 1 foot
39A	23802	Master link 80 Roller Chain	1
39B	23803	Off Set Link 80 Roller Chain	1
40	28559	Motor Drive Over Belt Motor	1
44	28355	Valve, Relief (flaps) RPEC LDN	2
45	28356	Body FEI	2
46	27816	Test Fitting	2
47	26944	Flap, upper seal 14” x 144” rubber	2
48	26763	Front Seal 4” width notched in center	1
51	28554	Longest Seal Rt. 8” x 166”	1
52	28555	Longest Seal Lt. 8” x 166”	1
53	27284	Spacer for long seal	2
54	26946	Hold-Down, front seal 1” x 16 ½”	2
55	26743	Hold-Down, 1” x 128”	4
56	26743A	Hold-Down, 1” x 128”	2
57	28302	Hold-Down-Short	2
58	27291	Horizontal Seal Support Rt & Lt 12ga. x2” x 14”	2
70	28460	Ramp Weldment	4
80	28425	Skid Pan
80A	28429	Spreader Pan-A	1
80B	28430	Spreader Pan-B	1
80C	28536	Slider Pan 23 ¾” X 35 11/16”
