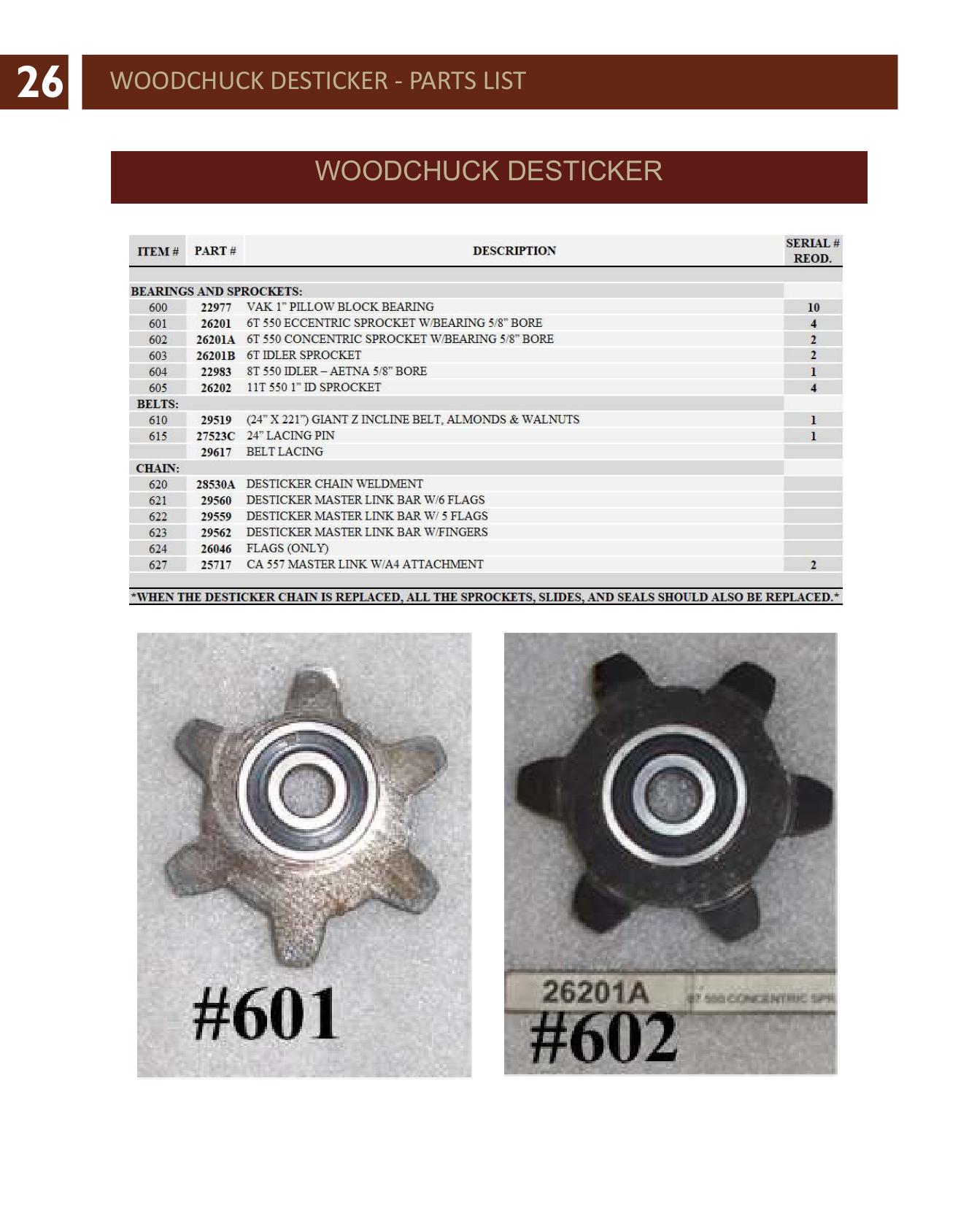

Woodchuck Desticker - Parts List · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 29617 | BELT LACING | ||
| 28896 | DRIVE SHAFT FOR DESTICKER CHAIN (1" X 40 3/4?") | 1 | |
| 28897 | IDLER SHAFT FOR DESTICKER CHAIN (1" X 36 3/4?") | 1 | |
| 24395E | TORQUE ARM, CONVEYORS | 2 | |
| 600 | 22977 | VAK 1" PILLOW BLOCK BEARING | 10 |
| 601 | 26201 | 6T 550 ECCENTRIC SPROCKET W/BEARING 5/8" BORE | 4 |
| 602 | 26201A | 6T 550 CONCENTRIC SPROCKET W/BEARING 5/8" BORE | 2 |
| 603 | 26201B | 6T IDLER SPROCKET | 2 |
| 604 | 22983 | 8T 550 IDLER - AETNA 5/8" BORE | 1 |
| 605 | 26202 | 11T 550 1" ID SPROCKET | 4 |
| 610 | 29519 | (24" X 221") GIANT Z INCLINE BELT, ALMONDS & WALNUTS | 1 |
| 615 | 27523C | 24" LACING PIN | 1 |
| 620 | 28530A | DESTICKER CHAIN WELDMENT | |
| 621 | 29560 | DESTICKER MASTER LINK BAR W/6 FLAGS | |
| 622 | 29559 | DESTICKER MASTER LINK BAR W/ 5 FLAGS | |
| 623 | 29562 | DESTICKER MASTER LINK BAR W/FINGERS | |
| 624 | 26046 | FLAGS (ONLY) | |
| 627 | 25717 | CA 557 MASTER LINK W/A4 ATTACHMENT | 2 |
| 650 | 29409A | CROSS CONV. SEAL | 1 |
| 651 | 27583 | WARNING (DECAL) | 2 |
| 652 | 26231 | SHIELD FOR SPROCKETS, UHMW | 2 |
| 653 | 26232 | OUTER SHIELD FOR SPROCKETS, METAL | 4 |
| 660 | 26157A | DRIVE PULLEY (CONVEYOR) 24" | 1 |
| 661 | 26158A | IDLER PULLEY (CONVEYOR) 24" | 1 |
| 668 | 26493 | CLIMAX COUPLER 1" (CC-100-100) | 3 |
| 669 | 24395D | TORQUE ARM, WOODCHUCK | 1 |
| 670 | 26622 | SIDE SEAL 6" X 24" | 2 |
| 671 | 27373 | SLIDE KIT (#472-475) | 1 |
| 673 | 26129 | UPPER CHAIN SLIDE | 4 |
| 674 | 25386 | SHORT UPPER SLIDE | 4 |
| 675 | 24491 | EXHAUST SLIDE (INCLINE) | 2 |
