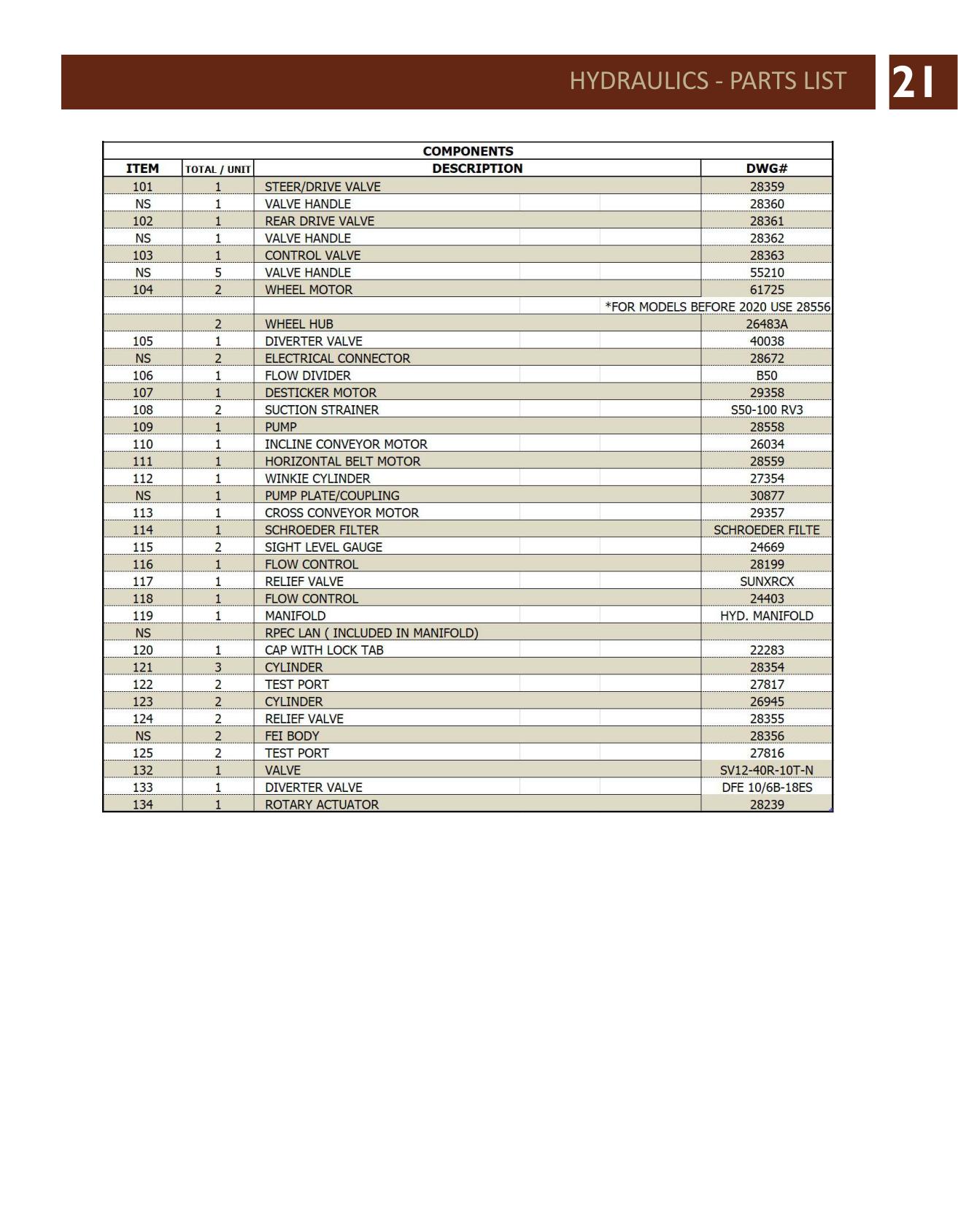

Tap a circled number on the diagram to identify the part.

#	Part number	Description	Qty
NS	28360	VALVE HANDLE	1
NS	28362	VALVE HANDLE	1
NS	55210	VALVE HANDLE	5
	26483A	WHEEL HUB	2
NS	28672	ELECTRICAL CONNECTOR	2
NS	30877	PUMP PLATE/COUPLING	1
NS	28356	FEI BODY	2
101	28359	STEER/DRIVE VALVE	1
102	28361	REAR DRIVE VALVE	1
103	28363	CONTROL VALVE	1
104	61725	WHEEL MOTOR (*FOR MODELS BEFORE 2020 USE 28556)	2
105	40038	DIVERTER VALVE	1
106	B50	FLOW DIVIDER	1
107	29358	DESTICKER MOTOR	1
108	S50-100 RV3	SUCTION STRAINER	2
109	28558	PUMP	1
110	26034	INCLINE CONVEYOR MOTOR	1
111	28559	HORIZONTAL BELT MOTOR	1
112	27354	WINKIE CYLINDER	1
113	29357	CROSS CONVEYOR MOTOR	1
114	SCHROEDER FILTE?	SCHROEDER FILTER (DWG# truncado en la tabla)	1
115	24669	SIGHT LEVEL GAUGE	2
116	28199	FLOW CONTROL	1
117	SUNXRCX	RELIEF VALVE	1
118	24403	FLOW CONTROL	1
120	22283	CAP WITH LOCK TAB	1
121	28354	CYLINDER	3
122	27817	TEST PORT	2
123	26945	CYLINDER	2
124	28355	RELIEF VALVE	2
125	27816	TEST PORT	2
132	SV12-40R-10T-N	VALVE	1
133	DFE 10/6B-18ES	DIVERTER VALVE	1
134	28239	ROTARY ACTUATOR	1
