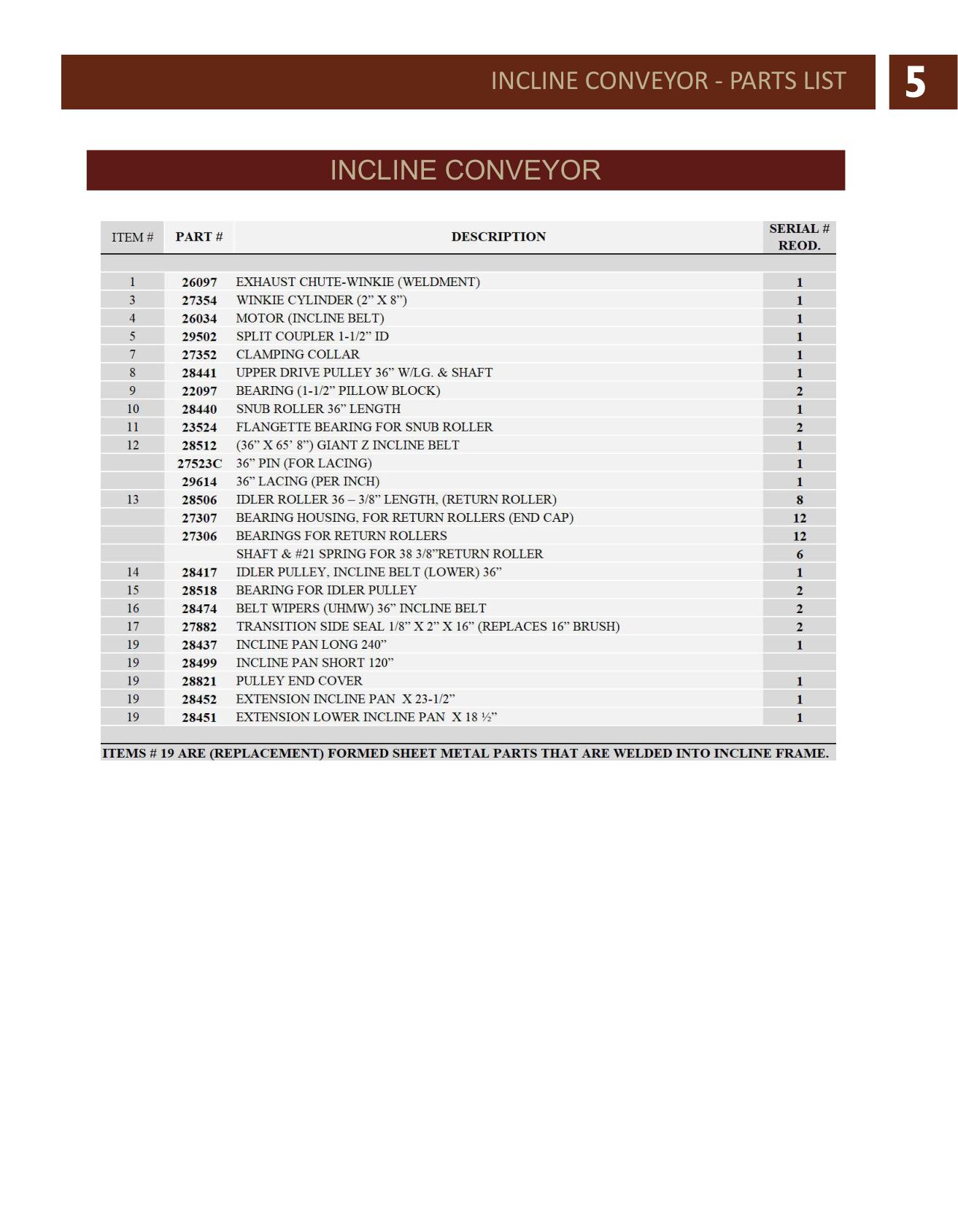

Incline Conveyor - Parts List · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 27523C | 36" PIN (FOR LACING) | 1 | |
| 29614 | 36" LACING (PER INCH) | 1 | |
| 27307 | BEARING HOUSING, FOR RETURN ROLLERS (END CAP) | 12 | |
| 27306 | BEARINGS FOR RETURN ROLLERS | 12 | |
| 1 | 26097 | EXHAUST CHUTE-WINKIE (WELDMENT) | 1 |
| 3 | 27354 | WINKIE CYLINDER (2" X 8") | 1 |
| 4 | 26034 | MOTOR (INCLINE BELT) | 1 |
| 5 | 29502 | SPLIT COUPLER 1-1/2" ID | 1 |
| 7 | 27352 | CLAMPING COLLAR | 1 |
| 8 | 28441 | UPPER DRIVE PULLEY 36" W/LG. & SHAFT | 1 |
| 9 | 22097 | BEARING (1-1/2" PILLOW BLOCK) | 2 |
| 10 | 28440 | SNUB ROLLER 36" LENGTH | 1 |
| 11 | 23524 | FLANGETTE BEARING FOR SNUB ROLLER | 2 |
| 12 | 28512 | (36" X 65' 8") GIANT Z INCLINE BELT | 1 |
| 13 | 28506 | IDLER ROLLER 36 - 3/8" LENGTH, (RETURN ROLLER) | 8 |
| 14 | 28417 | IDLER PULLEY, INCLINE BELT (LOWER) 36" | 1 |
| 15 | 28518 | BEARING FOR IDLER PULLEY | 2 |
| 16 | 28474 | BELT WIPERS (UHMW) 36" INCLINE BELT | 2 |
| 17 | 27882 | TRANSITION SIDE SEAL 1/8" X 2" X 16" (REPLACES 16" BRUSH) | 2 |
| 19 | 28437 | INCLINE PAN LONG 240" | 1 |
| 19 | 28499 | INCLINE PAN SHORT 120" | |
| 19 | 28821 | PULLEY END COVER | 1 |
| 19 | 28452 | EXTENSION INCLINE PAN X 23-1/2" | 1 |
| 19 | 28451 | EXTENSION LOWER INCLINE PAN X 18 1/2" | 1 |
