← Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)

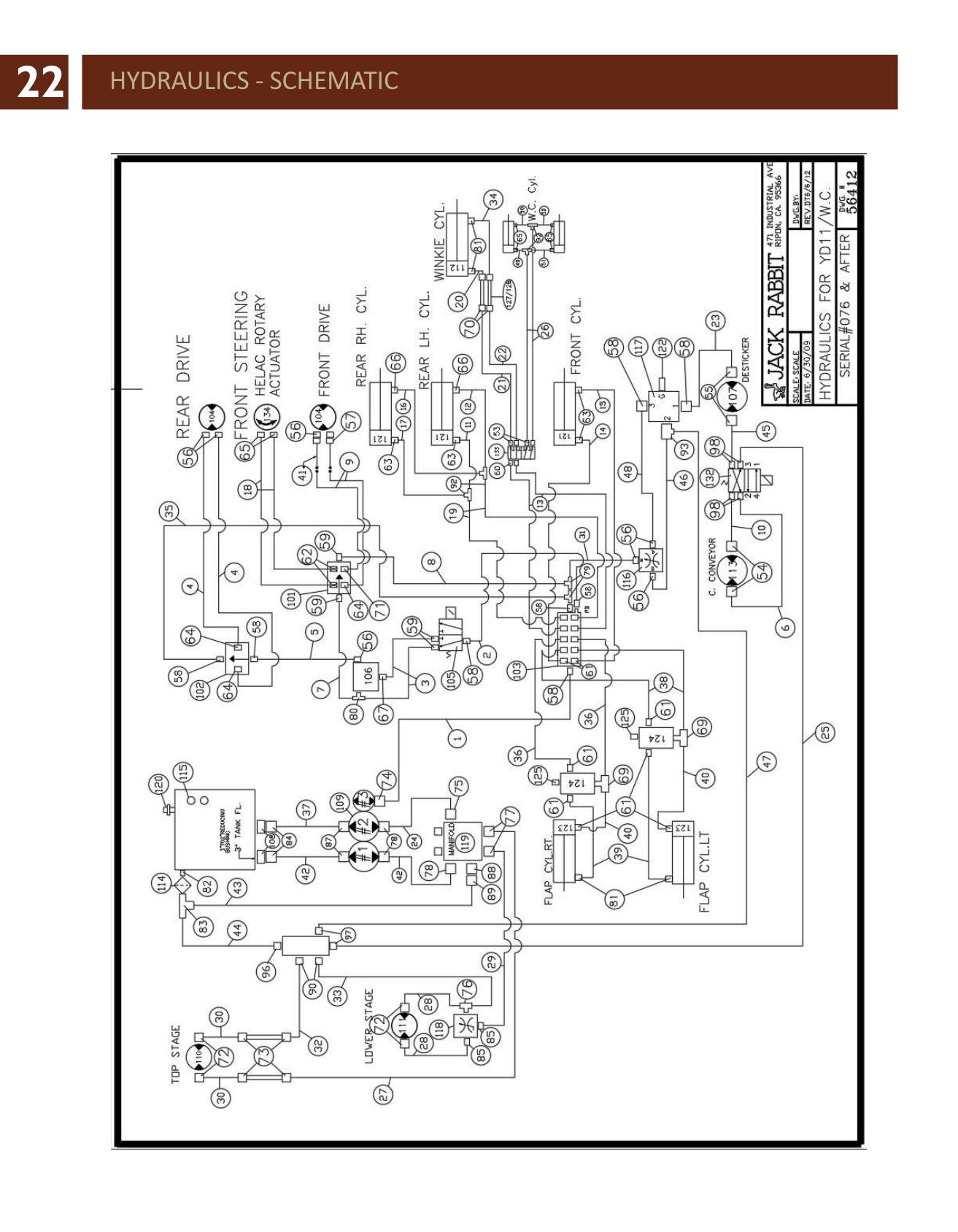

Hydraulics - Schematic (Hydraulics For Yd11/W.C. Serial#076 & After, Dwg 56412; · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 24537 | JACKRABBIT WHITE 6" | 2 | |
| 24549 | HYDRAULICS | 1 | |
| 26879A | REAR, WINKIE, FLAP, FRONT, UP, DOWN | 1 | |
| 28554/55 | LONG SEAL | 2 | |
| 27284 | SPACER FOR LONGER SEAL | 2 | |
| 26944 | UPPER SEAL | 2 | |
| 26950 | PIPE CLAMP DBL 3/8" | 2 | |
| 25278 | PIPE CLAMP DBL 3/4" | 2 | |
| 26199 | PIPE CLAMP DBL 1" | 2 | |
| 300 & 9 | 22097 | BEARING (1-1/2" PILLOW BLOCK) | 2 |
| 301 & 11 | 23524 | BEARING FRANGETTE (SNUB ROLLER) | 2 |
| 302 & 15 | 26614 | BEARING (IDLER PULLEY INCLINE CONVEYOR) | 2 |
| 303 & 13B | 27306 | BEARINGS FOR RETURN ROLLERS | 16 |
| 304, 32 & 35 | 28518 | BEARING VCJT 1 1/4" DRIVE PULLEY (HORZ. CONVEYOR) | 2 |
| 304 & 32 | 22977 | BEARINGS FOR IDLER PULLEY (HORZ. CONVEYOR) PILLOW BLOCK 1-1? | 2 |
| 305 & 33 | 26464 | BEARINGS PAD | 8 |
| 320 | 28512 | (36" X 65' 8") GIANT Z INCLINE BELT | 1 |
| 321 | 28513 | (36" X 27') GIANT Z BIN BELT | 1 |
| 330 | 24538 | JACKRABBIT BROWN 6" | 2 |
| 400 | 28335 | AXEL TORFLEX (NEW 2008) | 1 |
| 400A | 28336 | RIM 16.5 X 9.75 80N 6.5" BOLT CIRCLE | 2 |
| 400B | 27020A | TIRE # 16.5-14PLY | 2 |
| 401 | 26482 | RIM RIGHT NON DRIVING (SIDE TRAVEL) | 1 |
| 402 | 26482A | RIM LEFT DRIVING (SIDE TRAVEL) | 1 |
| 403 | 26481 | TIRE 26 X 12 -12 10PLY | 2 |
| 406 | 26766A | SEAT #55TBL | 1 |
| 407 | 24752 | PIPE CLAMP 518000 1" | 2 |
