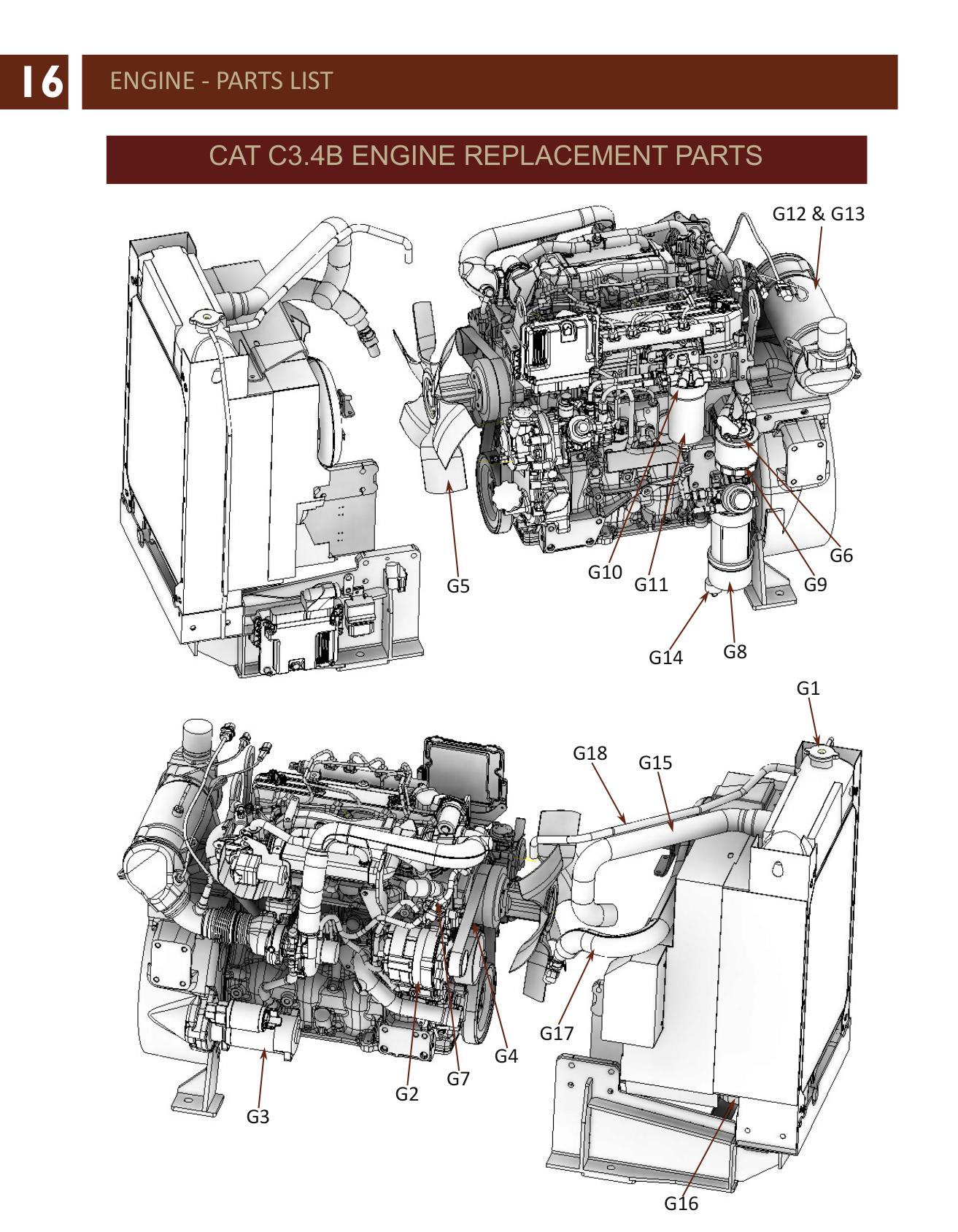

Cat C3.4B Engine Replacement Parts (Render Con Referencias G1-G18, Sin Numeros D · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 201 | 26399 | CIRCUIT BREAKER 30 AMP | 1 |
| 202 | 22416 | KEY SWITCH | 1 |
| 202A | 22416A | KEY POLAK | 1 |
| 203 | 27428 | LIGHT (FOR BELTS & NIGHT OPERATION) | 3 |
| 206 | 30862 | CAT 3.8 ENG DISPLAY MVP-312 | 1 |
| 208 | 27527 | ON AND OFF SWITCH | 7 |
| 281 | 28361 | VALVE FOR REAR DRIVE | 1 |
| 283 | 28363 | VALVE FOR CONTROLS | 1 |
| 284 | 28359 | VALVE FOR FRONT WHEEL | 1 |
