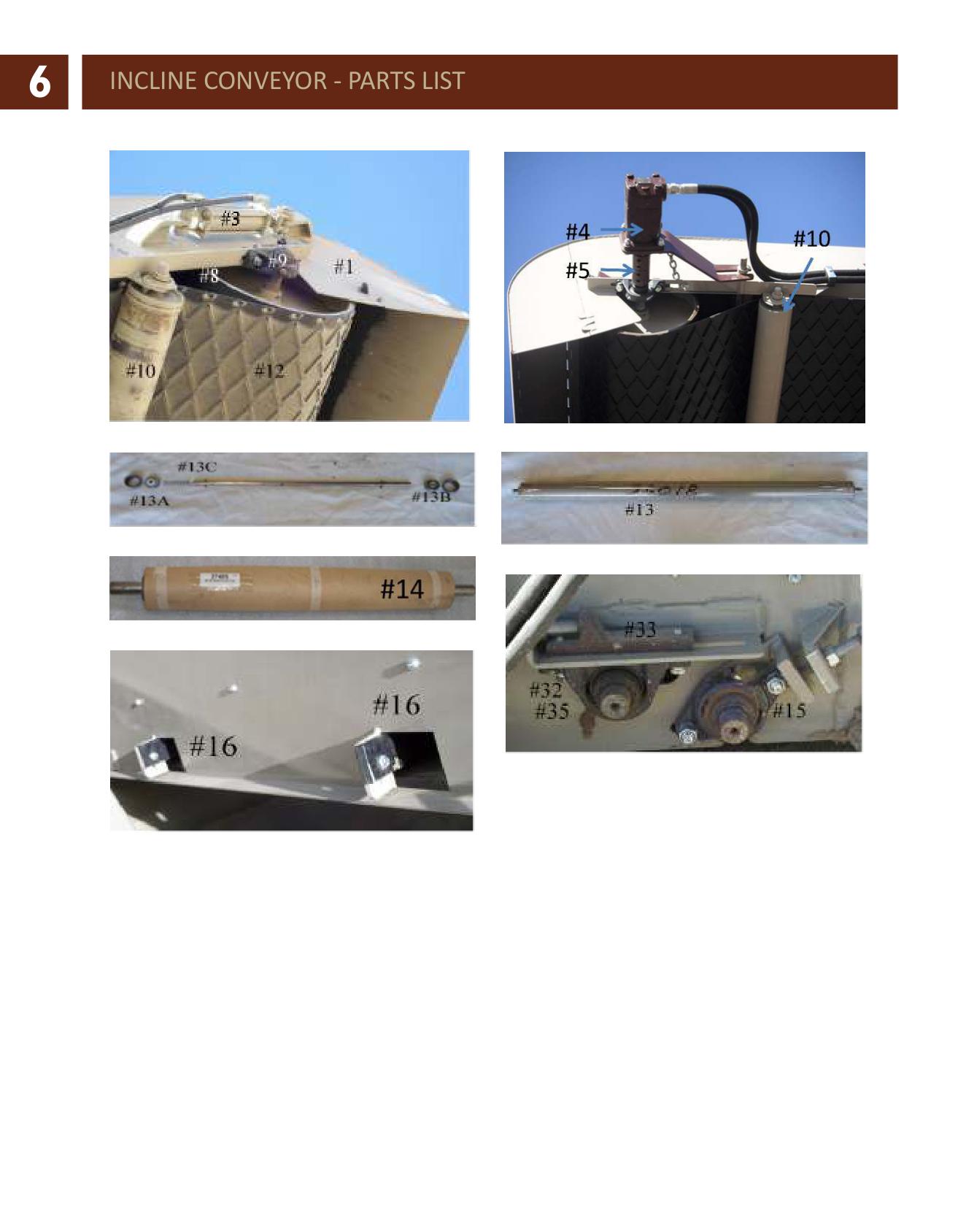

Incline Conveyor - Parts List (Fotos Con Referencias De Item #1-#35, Sin Numeros · Jackrabbit Jackrabbit Yard Dog 36/36 Elevator (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| 30 | 28513 | (36" X 27') GIANT Z, BIN BELT | 1 |
| 30A | 27523C | 36" PIN (FOR LACING) | 1 |
| 30B | 29617 | 36" LACING (SET) | 1 |
| 32 | 22906 | BEARING VAK 1-1/4" PILLOW BLOCK (IDLER PULLEY) | 2 |
| 33 | 26464 | BEARING PAD | 2 |
| 34 | 28413 | DRIVE PULLEY 36" | 1 |
| 35 | 28518 | BEARING (DRIVE PULLEY) | 2 |
| 37 | 25312 | 12T SPROCKET #80 CHAIN DRIVE (FOR MODELS WITH WOODCHUCK 10T SPROCKET) | 1 |
| 38 | 28743 | 1615 TAPER LOCK BUSHING 1 1/2" BORE | 1 |
| 39 | 25103 | 80 ROLLER CHAIN, 1 FOOT | |
| 39A | 23802 | MASTER LINK 80 ROLLER CHAIN | 1 |
| 39B | 23803 | OFF SET LINK 80 ROLLER CHAIN | 1 |
| 40 | 28559 | MOTOR DRIVE OVER BELT MOTOR | 1 |
| 41 | 27457 | 21T DRIVE SPROCKET 1 1/2" (FOR WOOD CHUCK) | 1 |
| 42 | 22712 | 2517 TAPER LOCK BUSHING 1 1/2" BORE | |
| 44 | 28355 | VALVE, RELIEF (FLAPS) RPEC LDN | 2 |
| 45 | 28356 | BODY FEI | 2 |
| 46 | 27816 | TEST FITTING | 2 |
| 47 | 26944 | FLAP, UPPER SEAL 14" X 144" RUBBER | 2 |
| 48 | 26763 | FRONT SEAL 4" WIDTH NOTED IN CENTER | 1 |
| 51 | 28554 | LONGEST SEAL RT. 8" X 166" | 1 |
| 52 | 28555 | LONGEST SEAL LT. 8" X 166" | 1 |
| 53 | 27284 | SPACER FOR LONG SEAL | 2 |
| 54 | 26946 | HOLD-DOWN, FRONT SEAL 1" X 16 1/2" | 2 |
| 55 | 26743 | HOLD-DOWN, 1" X 128" | 4 |
| 56 | 26743A | HOLD-DOWN, 1" X 128" | 2 |
| 57 | 28302 | HOLD-DOWN-SHORT | 2 |
| 58 | 27291 | HORIZONTAL SEAL SUPPORT RT & LT 12GA. X2" X 14" | 2 |
| 70 | 28460 | RAMP WELDMENT | 4 |
| 80 | 28425 | SKID PAN | |
| 80A | 28429 | SPREADER PAN-A | 1 |
| 80B | 28430 | SPREADER PAN-B | 1 |
| 80C | 28536 | SLIDER PAN 23 3/4" X 35 11/16" |
