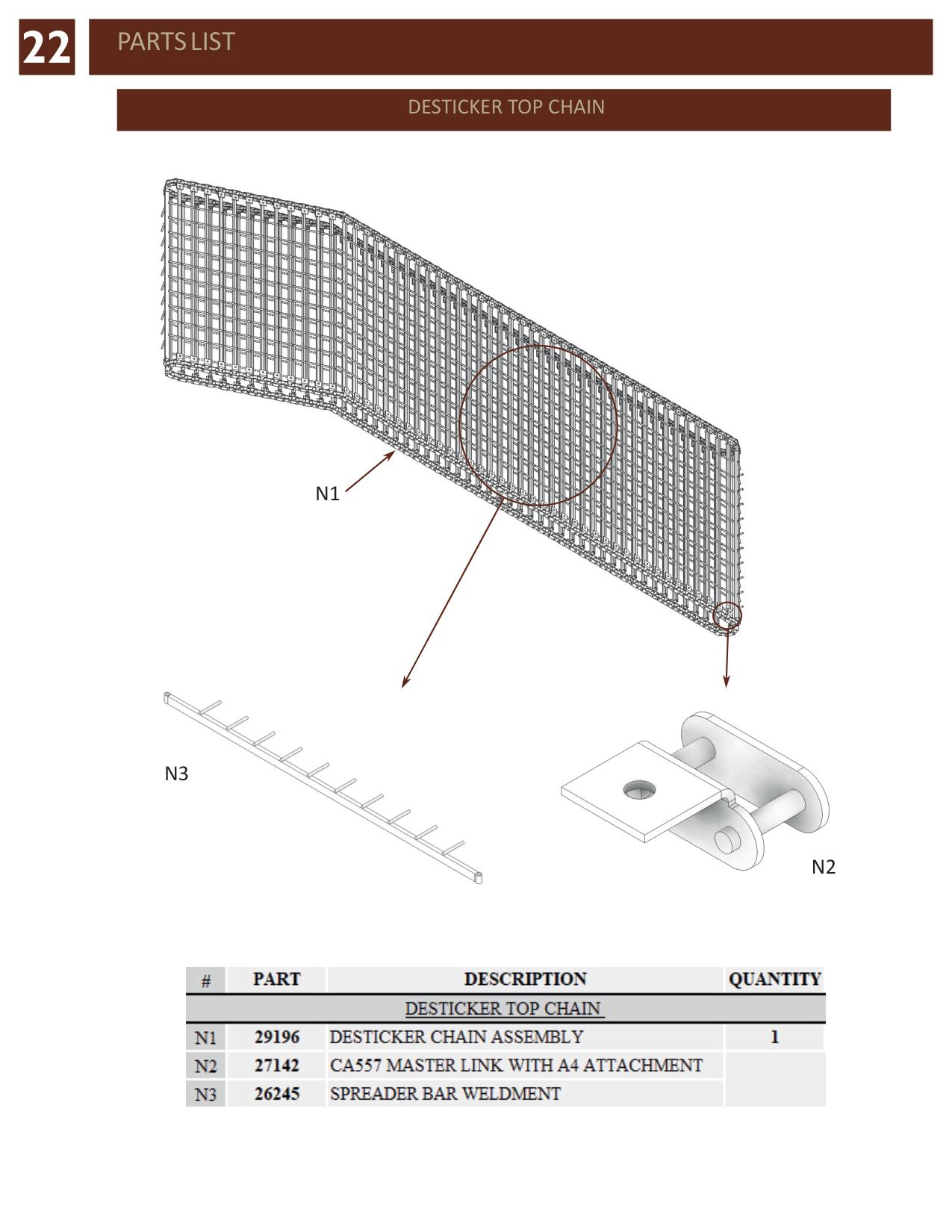

Desticker Top Chain · Jackrabbit Jackrabbit Wedge 10
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N1 | 29196 | DESTICKER CHAIN ASSEMBLY | 1 |
| N2 | 27142 | CA557 MASTER LINK WITH A4 ATTACHMENT | |
| N3 | 26245 | SPREADER BAR WELDMENT | |
| O1 | 29147 | CROSS CONVEYOT BELT | 1 |
| O2 | 24395B | TORQUE ARM MOTOR STOP | 1 |
| O3 | 27017 | CROSS CONVEYOR MOTOR | 1 |
| O4 | 22977 | BRG PILLOW BLOCK 1" | 4 |
| O5 | 26158 | DRIVE PULLEY ASSEMBLY | 1 |
