Tire & Hubs · Jackrabbit Jackrabbit Wedge 10

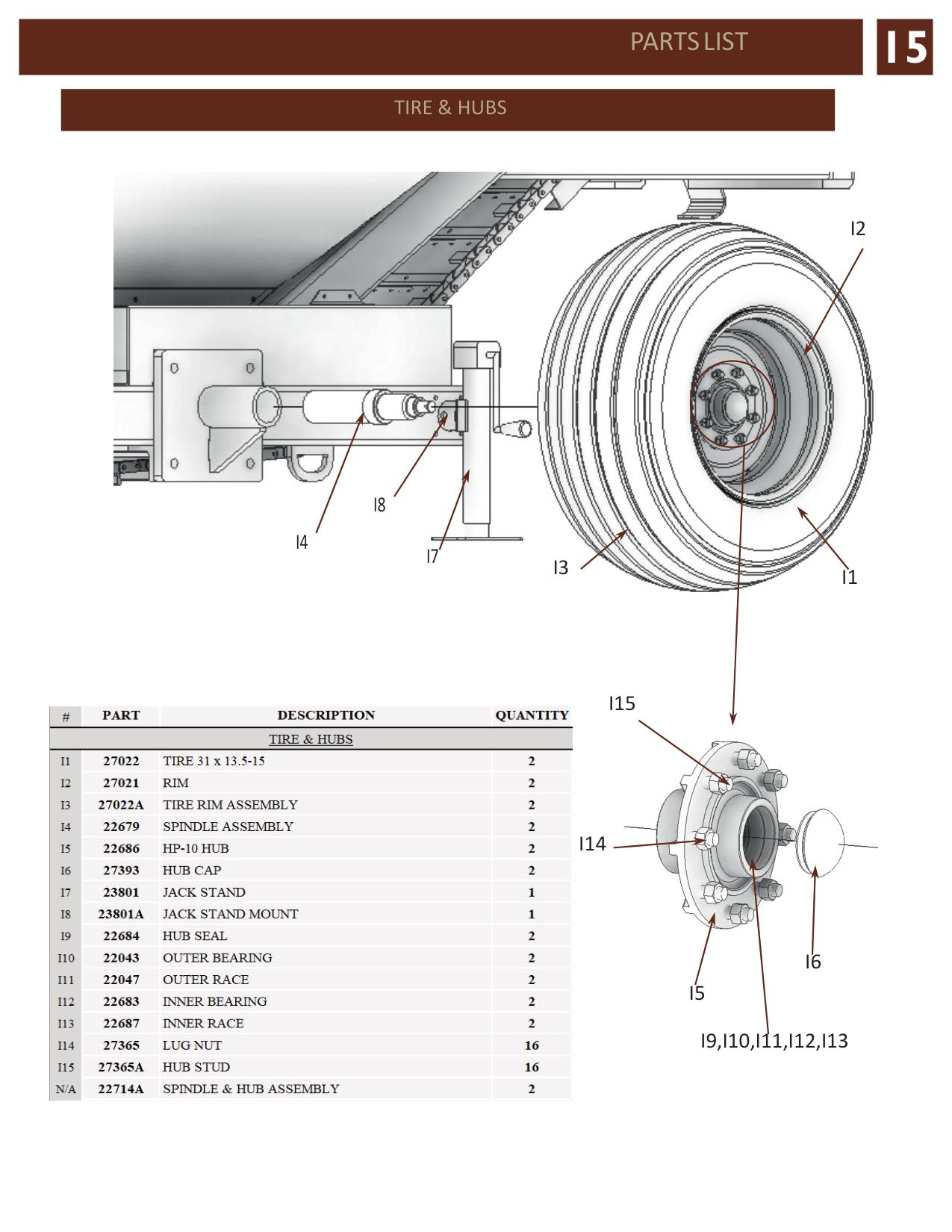

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| I1 | 27022 | TIRE 31 x 13.5-15 | 2 |
| I2 | 27021 | RIM | 2 |
| I3 | 27022A | TIRE RIM ASSEMBLY | 2 |
| I4 | 22679 | SPINDLE ASSEMBLY | 2 |
| I5 | 22686 | HP-10 HUB | 2 |
| I6 | 27393 | HUB CAP | 2 |
| I7 | 23801 | JACK STAND | 1 |
| I8 | 23801A | JACK STAND MOUNT | 1 |
| I9 | 22684 | HUB SEAL | 2 |
| I10 | 22043 | OUTER BEARING | 2 |
| I11 | 22047 | OUTER RACE | 2 |
| I12 | 22683 | INNER BEARING | 2 |
| I13 | 22687 | INNER RACE | 2 |
| I14 | 27365 | LUG NUT | 16 |
| I15 | 27365A | HUB STUD | 16 |
| N/A | 22714A | SPINDLE & HUB ASSEMBLY | 2 |
| J1 | 27127 | DOCK BUMPER | 2 |
| J2 | 28173 | RUNNER VALVE ASSEMBLY O-RING BOSS | 1 |
| J3 | 27557B | RUNNER VALVE O-RING BOSS | 1 |
| J4 | 27557C | HANDLE WELDMENT | 1 |
| J5 | 26076 | ACT. PLUNGER WELDMENT | 1 |
| J6 | 26078 | ACT. TUBE WELDMENT | 1 |
| J7 | 26068 | VALVE MOUNT PLATE | 1 |
| J8 | 24403 | FLOW CONTROL FC-12 O-RING | 1 |
| J9 | 26066 | HZ. SUPPORT TUBE | 1 |
| J10 | 27170 | COMPRESSION SPRING | 1 |
| J11 | 27169 | EXTENSION SPRING | 1 |
| J12 | 33147 | 3 LINK CHAIN | 1 |
| J13 | 30393 | RUNNER VALVE | 1 |
