Sprockets, Shafts & Bearings (Front) · Jackrabbit Jackrabbit Wedge 10

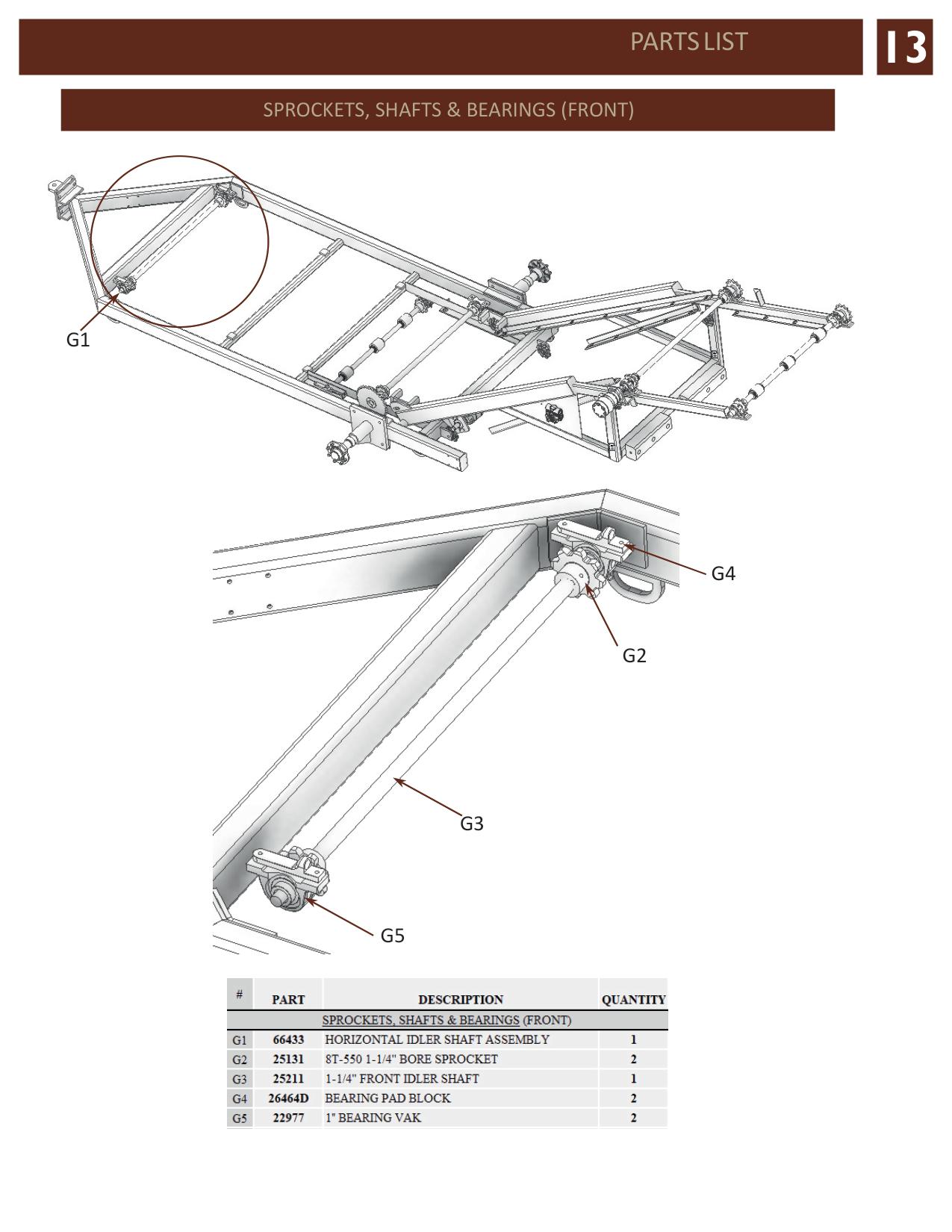

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G1 | 66433 | HORIZONTAL IDLER SHAFT ASSEMBLY | 1 |
| G2 | 25131 | 8T-550 1-1/4" BORE SPROCKET | 2 |
| G3 | 25211 | 1-1/4" FRONT IDLER SHAFT | 1 |
| G4 | 26464D | BEARING PAD BLOCK | 2 |
| G5 | 22977 | 1" BEARING VAK | 2 |
| H1 | 25272D | AUGER ASSEMBLY LEFT | 1 |
| H2 | 25271D | AUGER ASSEMBLY RIGHT | 1 |
| H3 | 22098 | 1-1/2" BEARING VCJ | 2 |
| H4 | 28408 | IDLER END SHAFT | 2 |
| H5 | 25240 | AUGER TUBE WELDMENT | 2 |
| H6 | 24499 | AUGER LEFT 12"x36" | 1 |
| H7 | 24501 | AUGER RIGHT 12"x36" | 1 |
| H8 | 22611 | AUGER LEFT 9"x18" | 1 |
| H9 | 22613 | AUGER RIGHT 9"x18" | 1 |
| H10 | 24395A | TORQUE ARM | 2 |
| H11 | 29358 | AUGER MOTOR (RS/WR-18) | 2 |
| H12 | 29486 | AUGER TORQUE MOUNT PLATE | 2 |
| H13 | 26493 | 1 COUPLER | 2 |
| N/A | 24664A | RS/WR 18 SEAL KIT | 2 |
| N/A | 22613A | AUGER SET SCREW STAINLESS | 2 |
