Sprockets, Shafts & Bearings (Rear) · Jackrabbit Jackrabbit Wedge 10

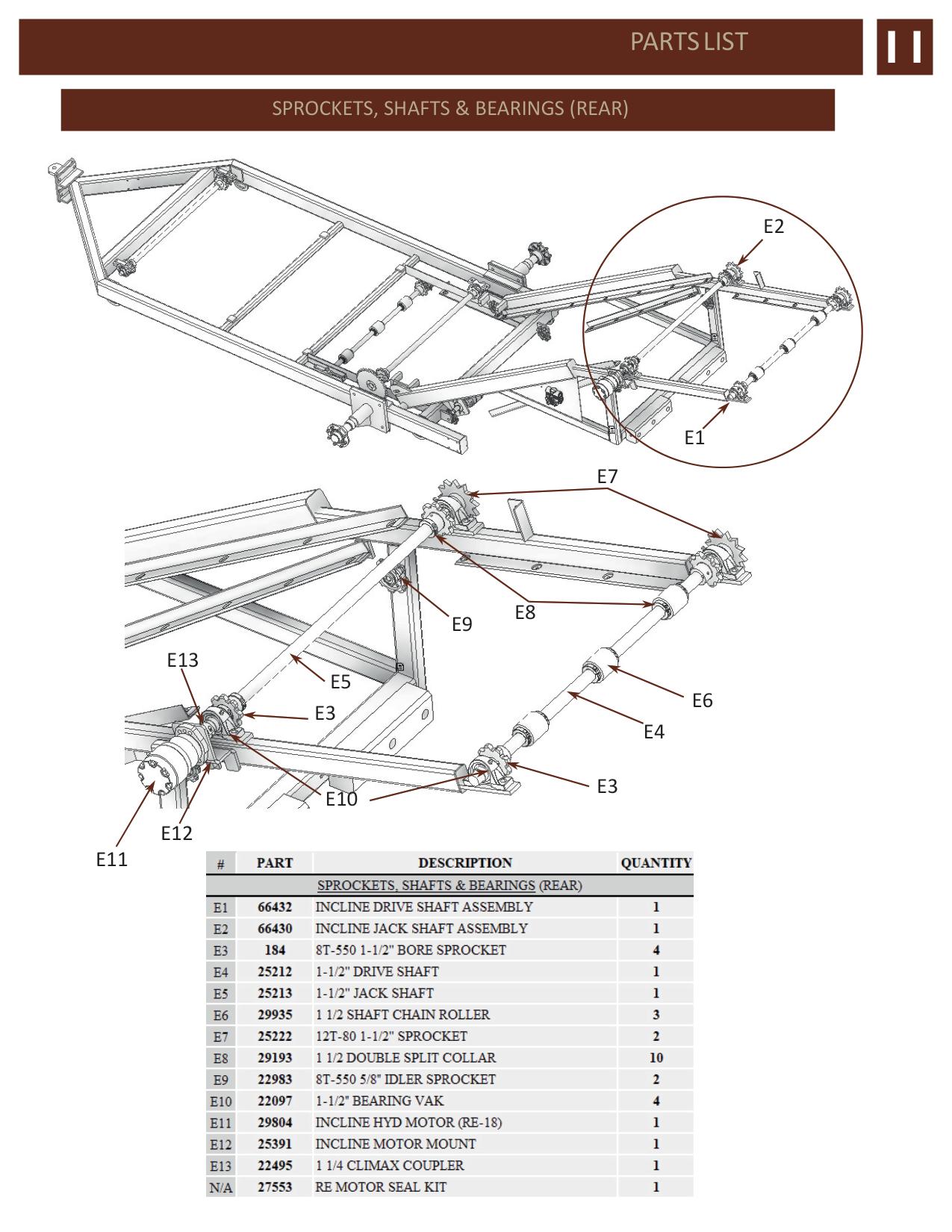

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 66432 | INCLINE DRIVE SHAFT ASSEMBLY | 1 |
| E2 | 66430 | INCLINE JACK SHAFT ASSEMBLY | 1 |
| E3 | 184 | 8T-550 1-1/2" BORE SPROCKET | 4 |
| E4 | 25212 | 1-1/2" DRIVE SHAFT | 1 |
| E5 | 25213 | 1-1/2" JACK SHAFT | 1 |
| E6 | 29935 | 1 1/2 SHAFT CHAIN ROLLER | 3 |
| E7 | 25222 | 12T-80 1-1/2" SPROCKET | 2 |
| E8 | 29193 | 1 1/2 DOUBLE SPLIT COLLAR | 10 |
| E9 | 22983 | 8T-550 5/8" IDLER SPROCKET | 2 |
| E10 | 22097 | 1-1/2" BEARING VAK | 4 |
| E11 | 29804 | INCLINE HYD MOTOR (RE-18) | 1 |
| E12 | 25391 | INCLINE MOTOR MOUNT | 1 |
| E13 | 22495 | 1 1/4 CLIMAX COUPLER | 1 |
| N/A | 27553 | RE MOTOR SEAL KIT | 1 |
| F1 | 66434 | HORIZONTAL DRIVE SHAFT ASSEMBLY | 1 |
| F2 | 66431 | INCLINE IDLER SHAFT ASSEMBLY | 1 |
| F3 | 184 | 8T-550 1-1/2" BORE SPROCKET | 2 |
| F4 | 25227 | 32T-80 SPROCKET | 1 |
| F5 | 22712 | 1-1/2 TAPER LOCK BUSHING | 1 |
| F6 | 25212 | 1-1/2" DRIVE SHAFT | 1 |
| F7 | 25211 | 1-1/4" FRONT IDLER SHAFT | 1 |
| F8 | 29193A | 1 1/4 DOUBLE SPLIT COLLAR | 6 |
| F9 | 29934 | 1 1/4 SHAFT CHAIN ROLLER | 3 |
| F10 | 25131 | 8T-550 1-1/4" BORE SPROCKET | 2 |
| F11 | 22977 | 1" BEARING VAK | 2 |
| F12 | 22097 | 1-1/2" BEARING VAK | 2 |
| F13 | 22983 | 8T-550 5/8" IDLER SPROCKET | 4 |
| F14 | 26464D | BEARING PAD BLOCK | 1 |
| F15 | 25256 | HORIZONTAL MOTOR MOUNT | 1 |
| F16 | 29802 | HORIZONTAL HYD MOTOR (RE-32) | 1 |
| F17 | 29825 | SPROCKET 14TX1 BORE RD/DSD | 1 |
| F18 | 24678 | HORIZONTAL DRIVE CHAIN TENSION SPROCKET | 1 |
