Horizontal Walnut Chain · Jackrabbit Jackrabbit Wedge 10

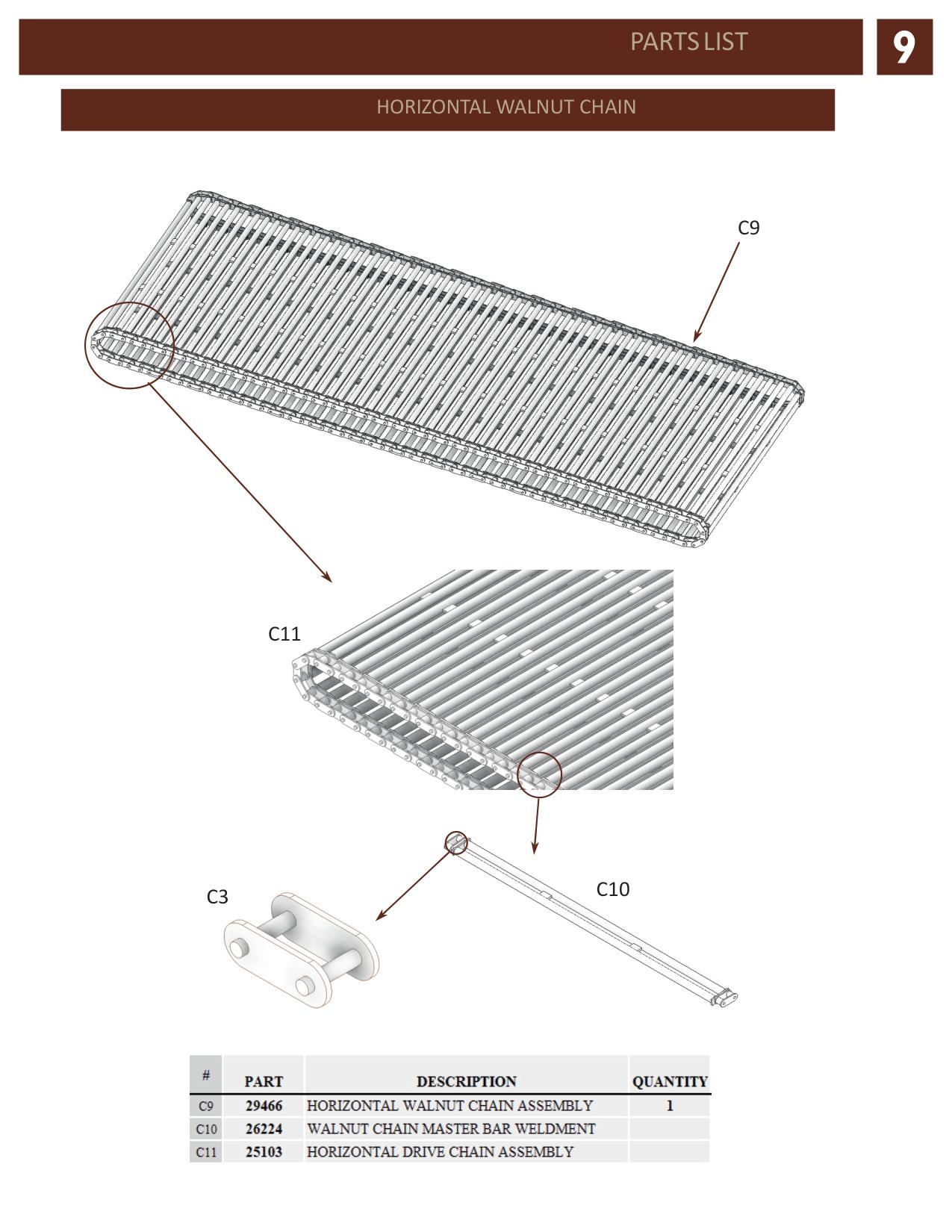

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C9 | 29466 | HORIZONTAL WALNUT CHAIN ASSEMBLY | 1 |
| C10 | 26224 | WALNUT CHAIN MASTER BAR WELDMENT | |
| C11 | 25103 | HORIZONTAL DRIVE CHAIN ASSEMBLY | |
| D6 | 29465 | INCLINE WALNUT CHAIN ASSEMBLY | 1 |
| D7 | 27087 | END TUBE WELDMENT | |
| D8 | 25104 | INCLINE DRIVE CHAIN ASSEMBLY |
