Horizontal Almond Chain · Jackrabbit Jackrabbit Wedge 10

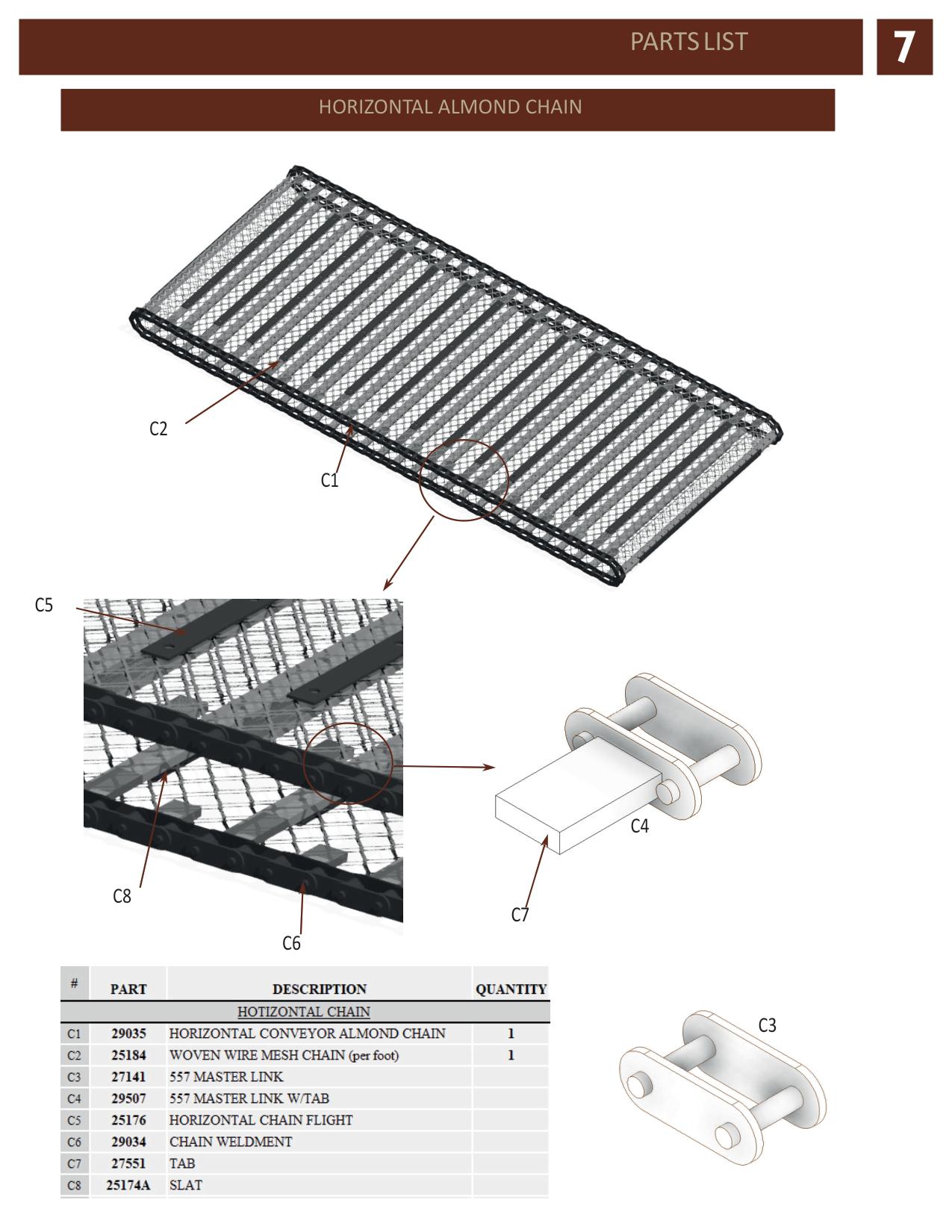

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C1 | 29035 | HORIZONTAL CONVEYOR ALMOND CHAIN | 1 |
| C2 | 25184 | WOVEN WIRE MESH CHAIN (per foot) | 1 |
| C3 | 27141 | 557 MASTER LINK | |
| C4 | 29507 | 557 MASTER LINK W/TAB | |
| C5 | 25176 | HORIZONTAL CHAIN FLIGHT | |
| C6 | 29034 | CHAIN WELDMENT | |
| C7 | 27551 | TAB | |
| C8 | 25174A | SLAT | |
| D1 | 29036 | INCLINE ALMOND 557 CHAIN | 1 |
| D2 | 25177 | INCLINE CHAIN FLIGHT | |
| D3 | 25174 | INCLINE CHAIN SLAT | |
| D4 | 25183A | INCLINE CHAIN-557 | |
| D5 | 25184 | WIRE MESH CHAIN | 1 |
