Slide Kit For Hp 10 #29086 · Jackrabbit Jackrabbit Wedge 10

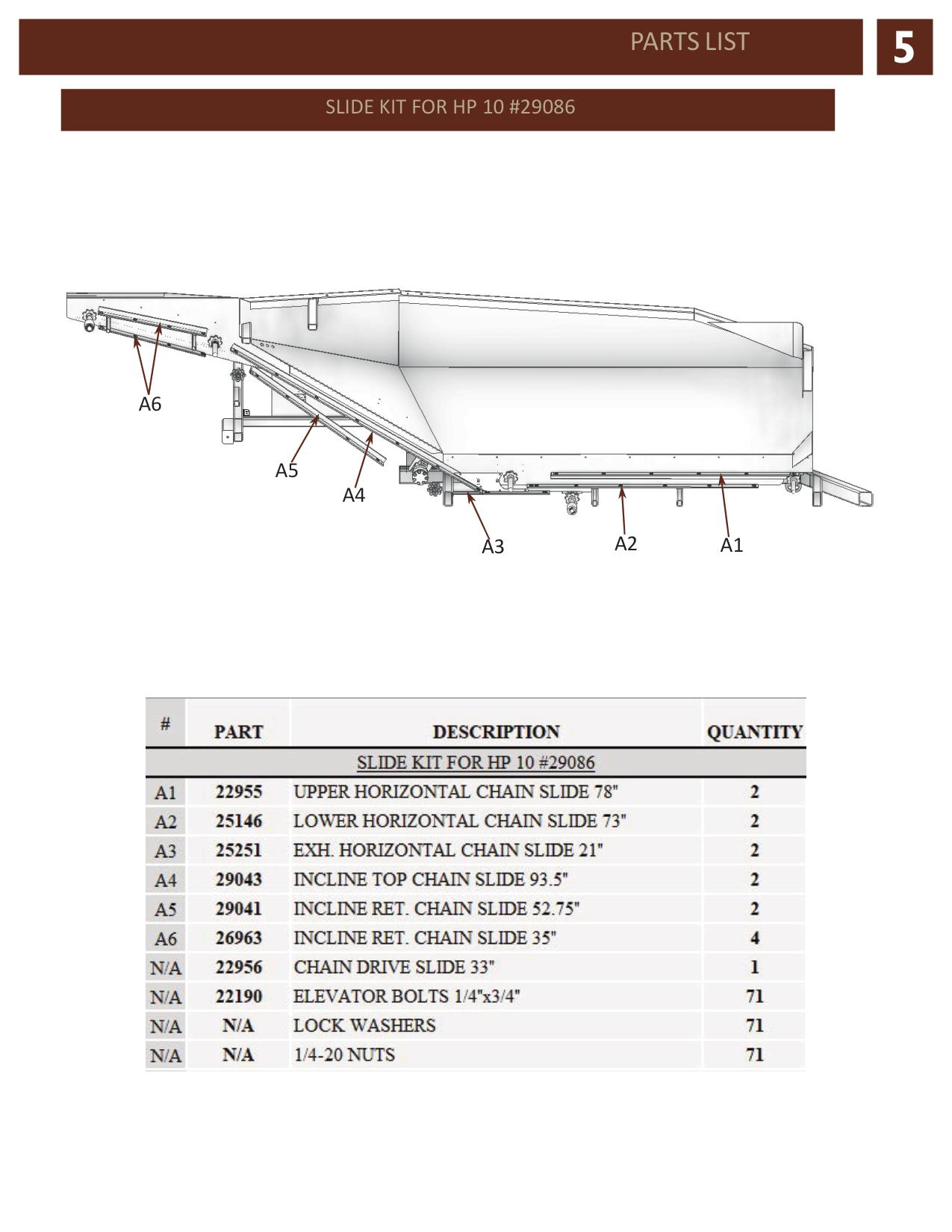

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 22955 | UPPER HORIZONTAL CHAIN SLIDE 78" | 2 |
| A2 | 25146 | LOWER HORIZONTAL CHAIN SLIDE 73" | 2 |
| A3 | 25251 | EXH. HORIZONTAL CHAIN SLIDE 21" | 2 |
| A4 | 29043 | INCLINE TOP CHAIN SLIDE 93.5" | 2 |
| A5 | 29041 | INCLINE RET. CHAIN SLIDE 52.75" | 2 |
| A6 | 26963 | INCLINE RET. CHAIN SLIDE 35" | 4 |
| N/A | 22956 | CHAIN DRIVE SLIDE 33" | 1 |
| N/A | 22190 | ELEVATOR BOLTS 1/4"x3/4" | 71 |
| N/A | N/A | LOCK WASHERS | 71 |
| N/A | N/A | 1/4-20 NUTS | 71 |
| B1 | 27044 | FRONT SEAL | 1 |
| B2 | 29051 | HORIZONTAL BIN SEAL RIGHT | 1 |
| B3 | 29052 | HORIZONTAL BIN SEAL LEFT | 1 |
| B4 | 29044 | INCLINE SEAL RIGHT | 1 |
| B5 | 29045 | INCLINE SEAL LEFT | 1 |
| B6 | 27047 | EXHAUST SEAL RIGHT | 2 |
| B7 | 29048 | LOWER TRANSITION SEAL RUBBER | 2 |
| B8 | 29055A | OUTTER TRANSITION SEAL PLATE | 2 |
| B9 | 29054A | INNER TRANSITION SEAL PLATE | 2 |
| B10 | 27049 | FRONT BUMPER NOTCHED RD-10/ DSD-10 | 1 |
| B11 | 29058 | LOWER LEFT TRANSITION SEAL ASSEMBLY | 1 |
| N/A | 29059 | LOWER RIGHT TRANSITION SEAL ASSEMBLY | 1 |
