Desticker Top · Jackrabbit Jackrabbit Wedge 10

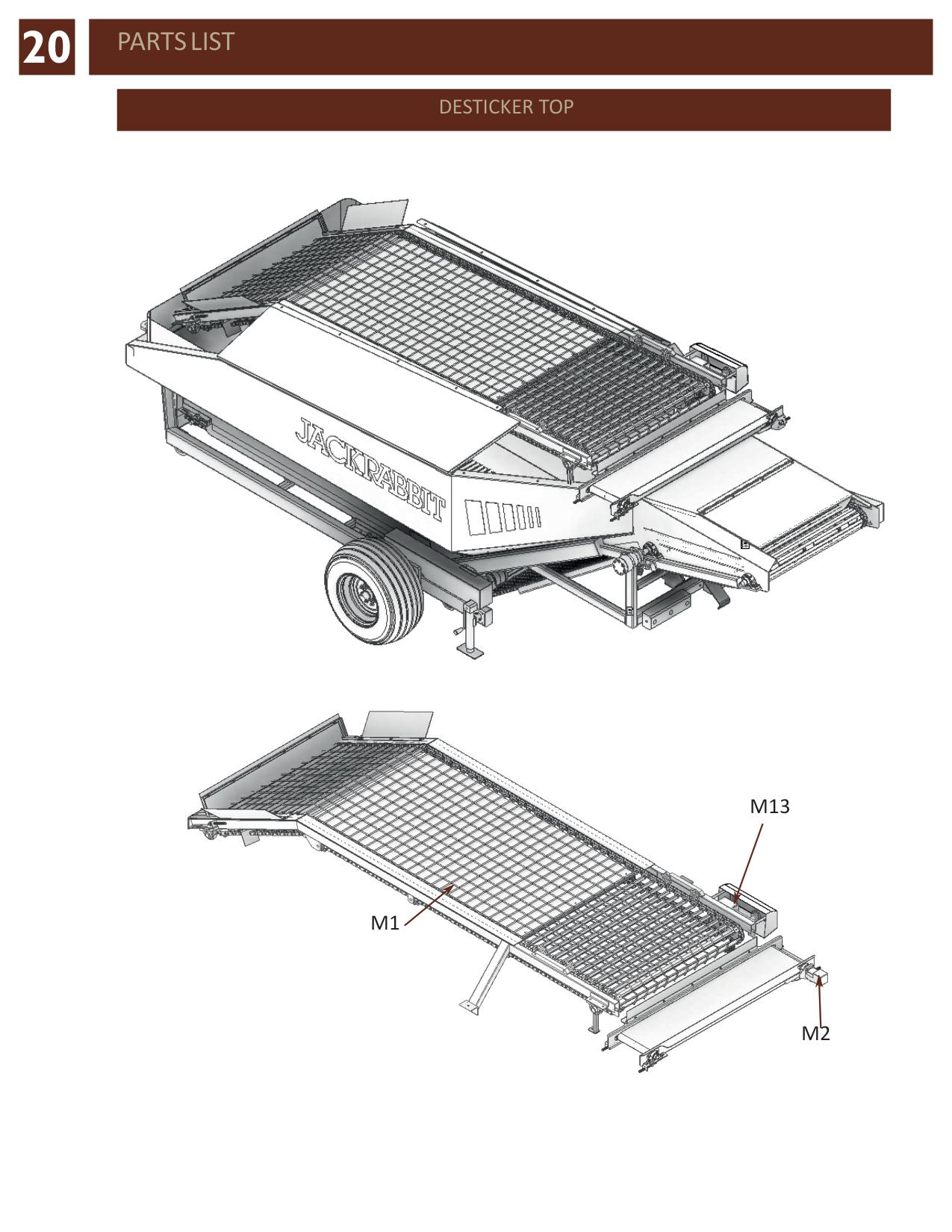

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| M1 | 26446 | FLOOR SLIDE | 1 |
| M2 | 27017 | CROSS CONVEYOR MOTOR | 1 |
| M3 | 22096 | 1 1/4" PILLOW BLOCK | 4 |
| M4 | 22983 | 8T550 IDLER SPROCKET | 8 |
| M5 | 26201A | 6T550 CONCENTRIC SPROCKET | 4 |
| M6 | 26585 | 11T 1 1/4" BORE SPROCKET WELDMENT | 4 |
| M7 | 26467 | DRIVE SHAFT | 1 |
| M8 | 29822 | DRIVE SHAFT SPROCKET | 1 |
| M9 | 25196 | SPACER TUBE | 5 |
| M10 | 25382 | SLIDE - INCLINE CHAIN | 2 |
| M11 | 29155 | SLIDE - INCLINE CHAIN-SMALL | 2 |
| M12 | 25744 | FRONT IDLER SHAFT | 1 |
| M13 | 24664 | DESTICKER TOP CHAIN DRIVE MOTOR (RS-18) | 1 |
