Draper Top · Jackrabbit Jackrabbit Wedge 10

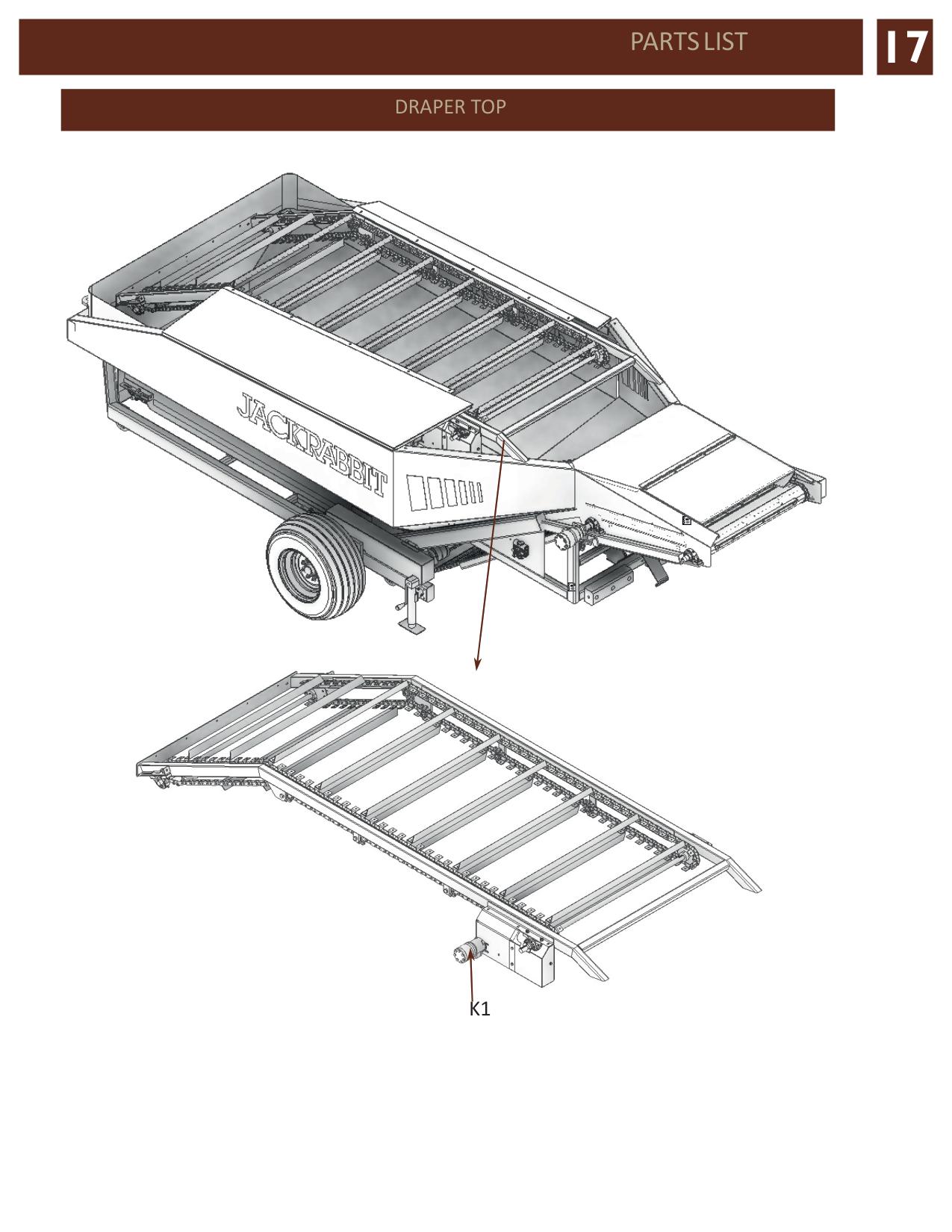

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| K1 | 29358 | RS-18 MOTOR | 1 |
| K2 | 22096 | PILLOW BLOCK 1-1/4" | 4 |
| K3 | 22983 | 8T-550 IDLER 5/8" BORE SPROCKET | 8 |
| K4 | 29822 | 14T 1.25" BORE SPROCKET | 2 |
| K5 | 26585 | 11T 550 1-1/4" BORE SPROCKET | 4 |
| K6 | 25743 | 1-1/4" DRIVE SHAFT | 1 |
| K7 | 25744 | 1-1/4" FRONT IDLER SHAFT | 1 |
| K8 | 29532 | DRAPER TOP HORIZONTAL CHAIN SLIDE | 2 |
| K9 | 27191 | DRAPER TOP INCLINED CHAIN SLIDE | 2 |
