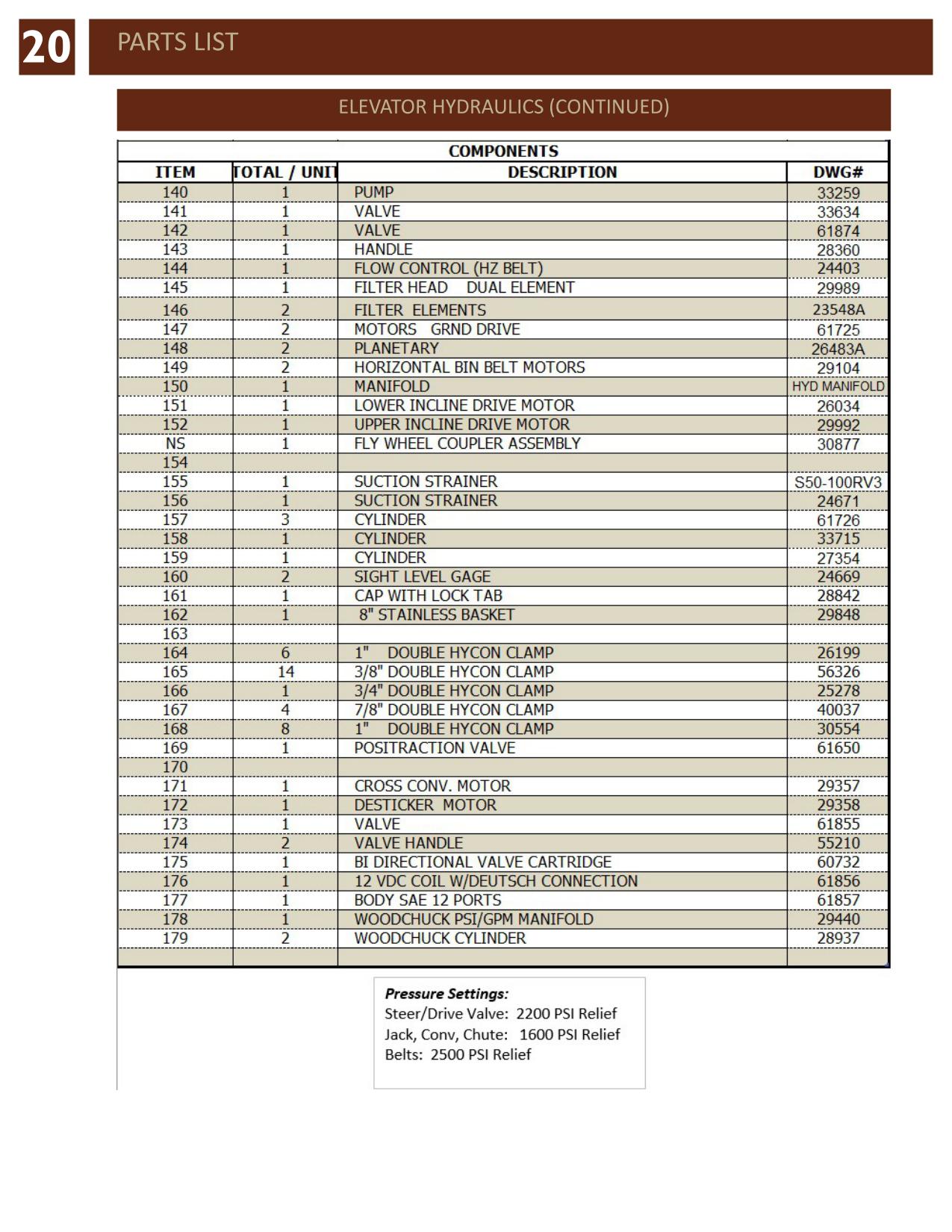

Elevator Hydraulics (Continued) - Components (Items 154, 163 Y 170 Vacios En El · Jackrabbit Jackrabbit RA 20-30/30
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| NS | 30877 | FLY WHEEL COUPLER ASSEMBLY | 1 |
| 140 | 33259 | PUMP | 1 |
| 141 | 33634 | VALVE | 1 |
| 142 | 61874 | VALVE | 1 |
| 143 | 28360 | HANDLE | 1 |
| 144 | 24403 | FLOW CONTROL (HZ BELT) | 1 |
| 145 | 29989 | FILTER HEAD DUAL ELEMENT | 1 |
| 146 | 23548A | FILTER ELEMENTS | 2 |
| 147 | 61725 | MOTORS GRND DRIVE | 2 |
| 148 | 26483A | PLANETARY | 2 |
| 149 | 29104 | HORIZONTAL BIN BELT MOTORS | 2 |
| 150 | HYD MANIFOLD | MANIFOLD | 1 |
| 151 | 26034 | LOWER INCLINE DRIVE MOTOR | 1 |
| 152 | 29992 | UPPER INCLINE DRIVE MOTOR | 1 |
| 155 | S50-100RV3 | SUCTION STRAINER | 1 |
| 156 | 24671 | SUCTION STRAINER | 1 |
| 157 | 61726 | CYLINDER | 3 |
| 158 | 33715 | CYLINDER | 1 |
| 159 | 27354 | CYLINDER | 1 |
| 160 | 24669 | SIGHT LEVEL GAGE | 2 |
| 161 | 28842 | CAP WITH LOCK TAB | 1 |
| 162 | 29848 | 8" STAINLESS BASKET | 1 |
| 164 | 26199 | 1" DOUBLE HYCON CLAMP | 6 |
| 165 | 56326 | 3/8" DOUBLE HYCON CLAMP | 14 |
| 166 | 25278 | 3/4" DOUBLE HYCON CLAMP | 1 |
| 167 | 40037 | 7/8" DOUBLE HYCON CLAMP | 4 |
| 168 | 30554 | 1" DOUBLE HYCON CLAMP | 8 |
| 169 | 61650 | POSITRACTION VALVE | 1 |
| 171 | 29357 | CROSS CONV. MOTOR | 1 |
| 172 | 29358 | DESTICKER MOTOR | 1 |
| 173 | 61855 | VALVE | 1 |
| 174 | 55210 | VALVE HANDLE | 2 |
| 175 | 60732 | BI DIRECTIONAL VALVE CARTRIDGE | 1 |
| 176 | 61856 | 12 VDC COIL W/DEUTSCH CONNECTION | 1 |
| 177 | 61857 | BODY SAE 12 PORTS | 1 |
| 178 | 29440 | WOODCHUCK PSI/GPM MANIFOLD | 1 |
| 179 | 28937 | WOODCHUCK CYLINDER | 2 |
