Miscellaneous Parts · Jackrabbit Jackrabbit RA 20-30/30

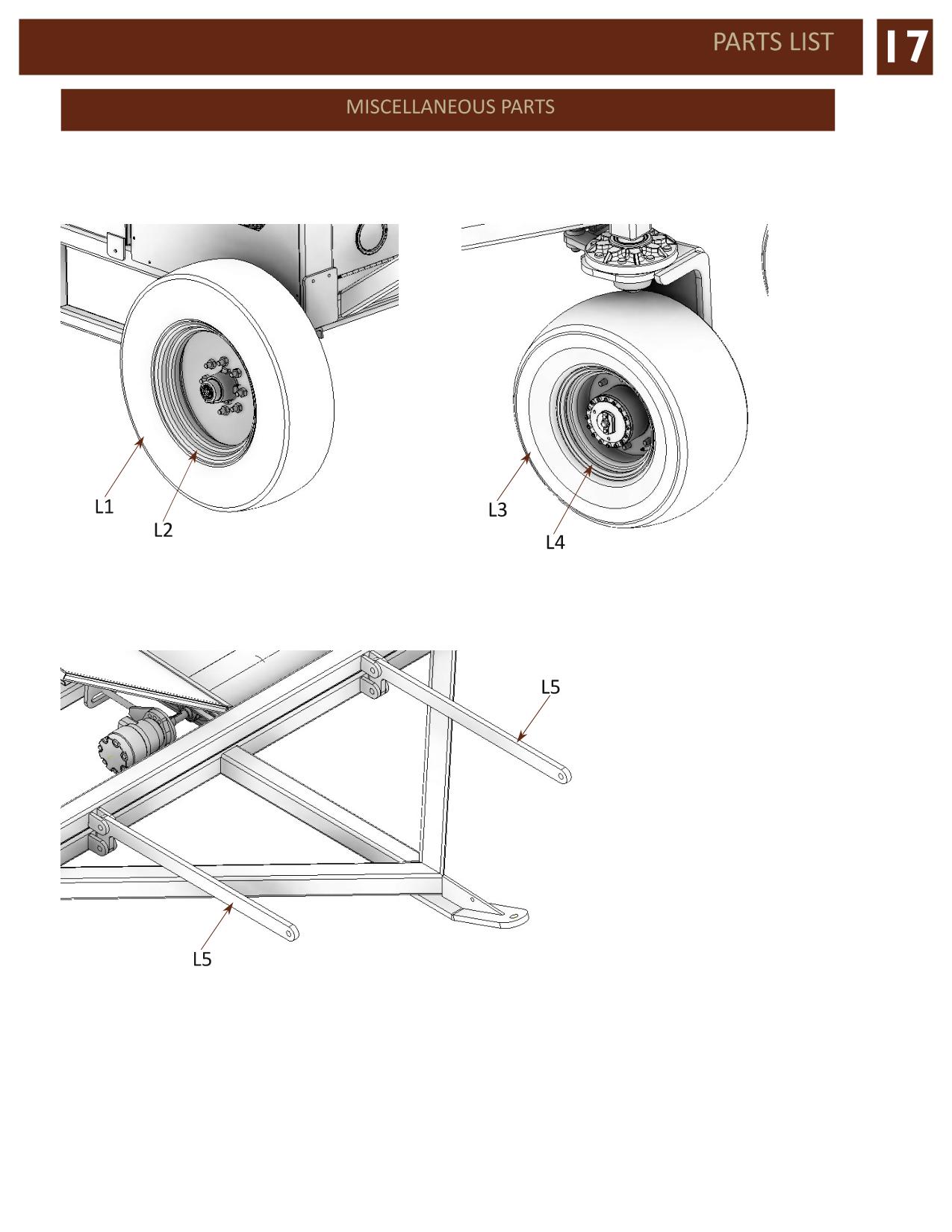

Tap a circled number on the diagram to identify the part.

diagram
✕
#Part numberDescriptionQty
L1 61748 TBL REAR TIRE
L2 61749 TBL REAR RIM
L3 26481A DRIVE/JACK TIRE
L4 26482A DRIVE/JACK RIM
L5 61879 TRANSIT LINK
1 30535 W46-32-32 U 1
2 30536 W46-16-16 U 2
31 40034 FVL3XGIU527470 (POWER BEYOND) 1
38 27388 KLF 375 SBC (FLOW CONTROL) 1
