Woodchuck Cross Conveyor · Jackrabbit Jackrabbit RA 20-30/30

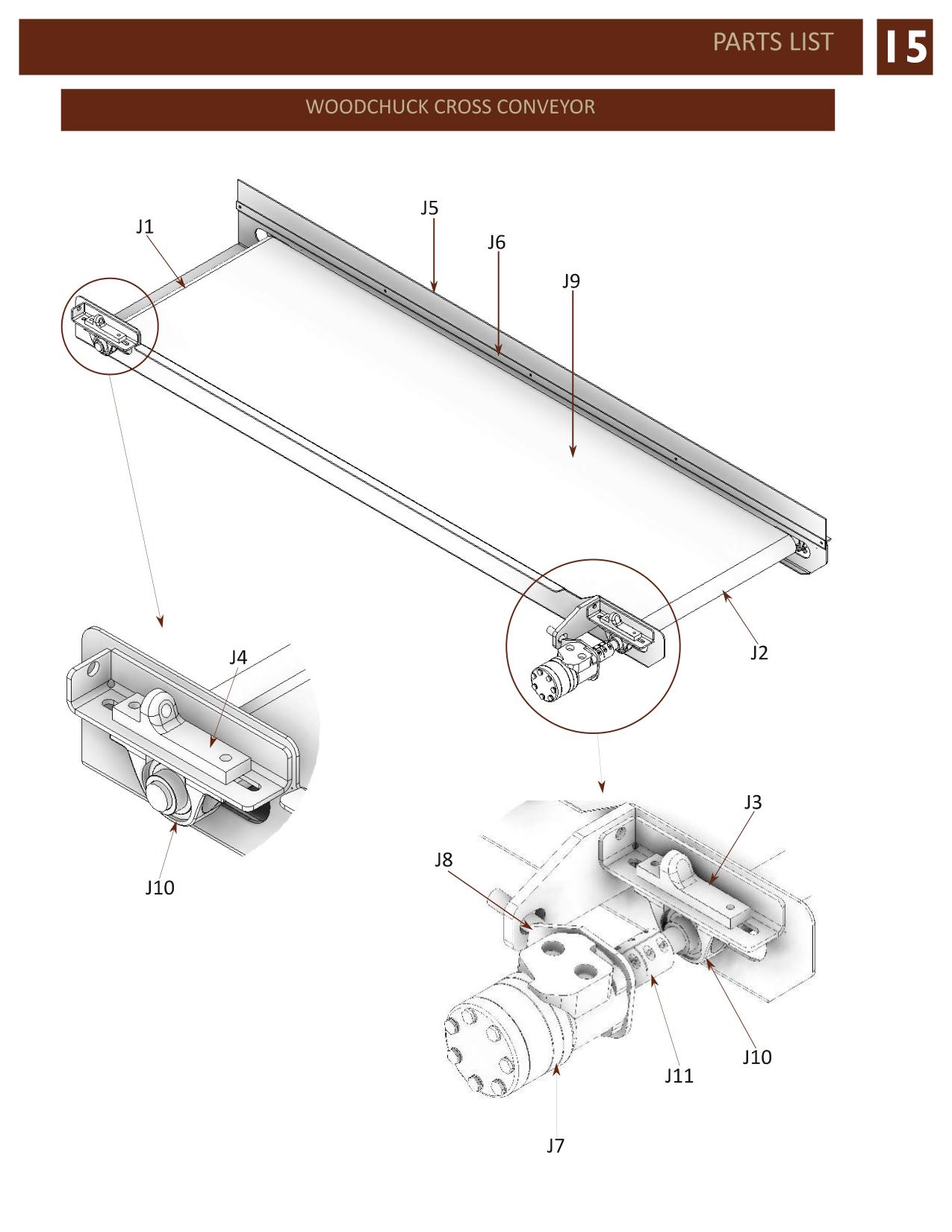

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J1 | 29443 | RUBBERIZED IDLER PULLY | |
| J2 | 29444 | RUBBERIZED DRIVE PULLY | |
| J3 | 26464B | 3/8" - BEARING PULLER | |
| J4 | 26464D | 3/8" - BEARING PUSHER | |
| J5 | 29453 | CROSS CONVEYOR SEAL | |
| J6 | 29452 | SEAL HOLD DOWN - CROSS CONVEYOR | |
| J7 | 29357 | CROSS CONV. MOTOR | |
| J8 | 24395E | TORQUE ARM WELDMENT | |
| J9 | 29462 | GIANT Z - CROSS CONVEYOR BELT | |
| J10 | 22977 | BRG PILLOW BLOCK 1" | |
| J11 | 26493 | COUPLER - 1" |
