Woodchuck · Jackrabbit Jackrabbit RA 20-30/30

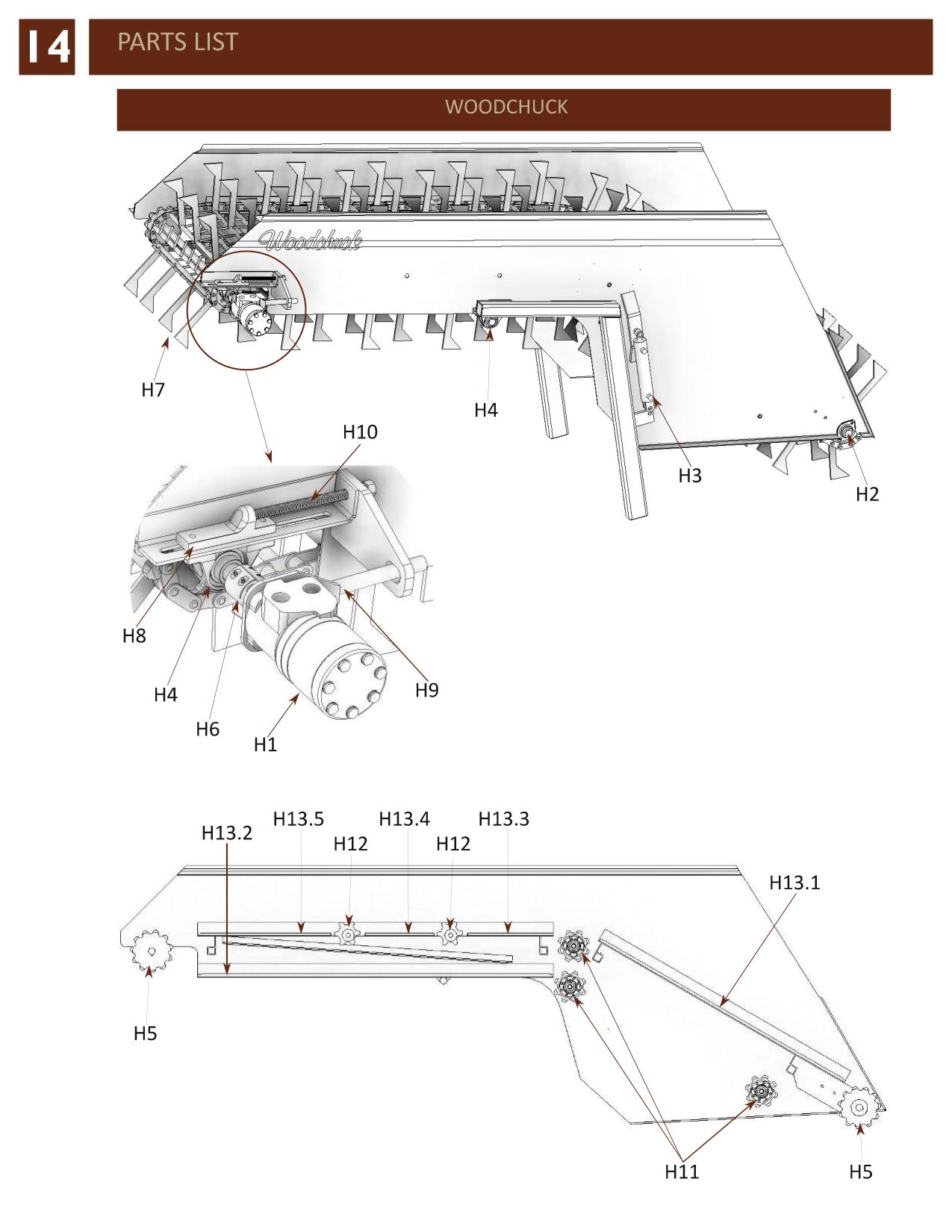

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H1 | 29358 | DESTICKER MOTOR | |
| H2 | 23524 | FLANGETTE BEARING | |
| H3 | 28937 | WOODCHUCK LIFT CYLINDER | |
| H4 | 22977 | BRG PILLOW BLOCK 1" | |
| H5 | 26202 | 11T 1" BORE SPROCKET WELD'T | |
| H6 | 26493 | COUPLER - 1" | |
| H7 | 61824 | DESTICKER CHAIN | |
| H8 | 26464D | BEARING PUSHER | |
| H9 | 24395D | TORQUE ARM WELDMENT | |
| H10 | 60812 | TAKE UP BOLT | |
| H11 | 22983 | 8T550 IDLER SPROCKET | |
| H12 | 26201 | 6T550 ECCENTRIC SPROCKET | |
| H13 | 60779 | WOODCHUCK SLIDE KIT | |
| H13.1 | 60766 | WOODCHUCK INCLINE SLIDE | |
| H13.2 | 60767 | WOODCHUCK HORIZONTAL SLIDE | |
| H13.3 | 60768 | WOODCHUCK SLIDE TOP A | |
| H13.4 | 60769 | WOODCHUCK SLIDE TOP B | |
| H13.5 | 60770 | WOODCHUCK SLIDE TOP C |
