Cat C3.4B Engine Replacement Parts · Jackrabbit Jackrabbit RA 20-30/30

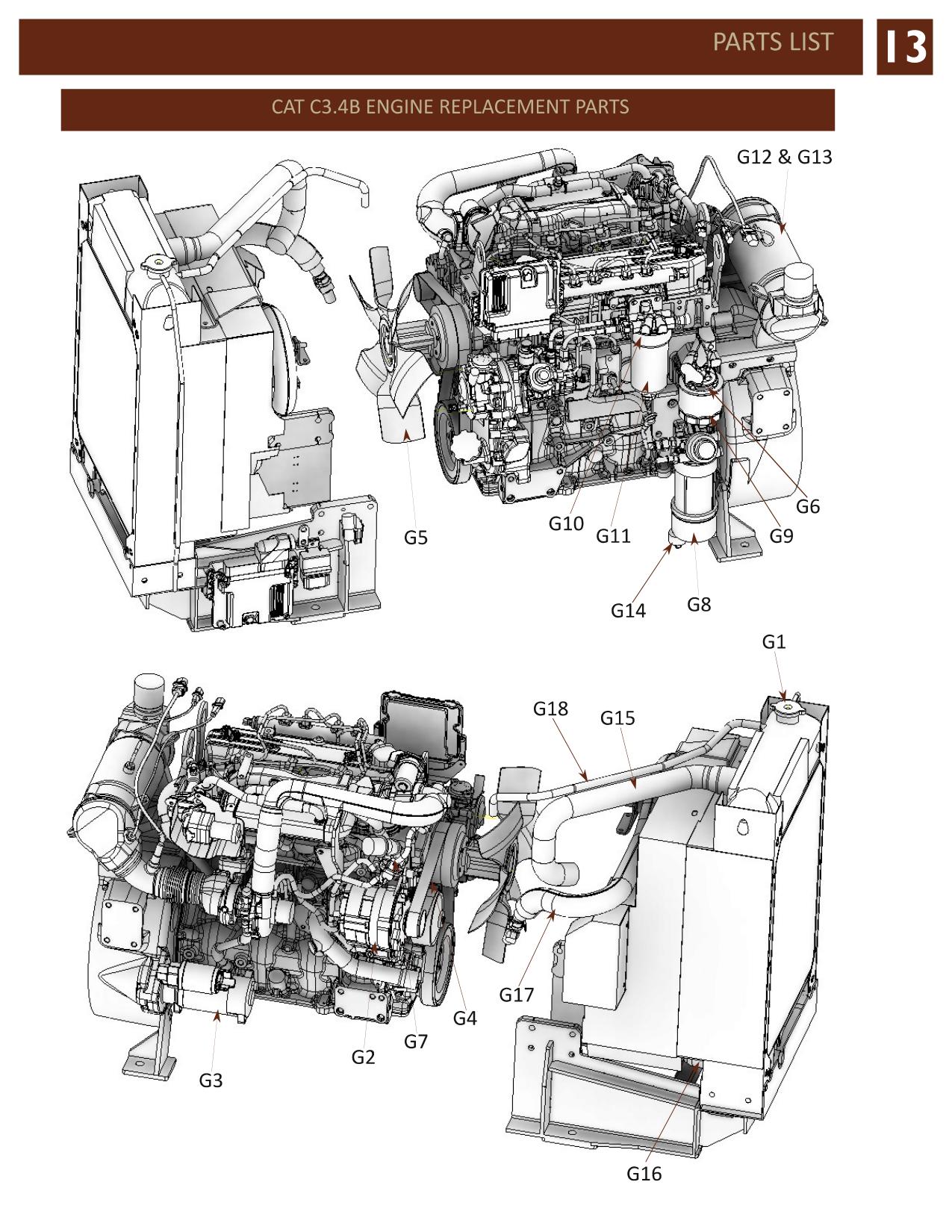

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| G1 | 33885 | RADIATOR CAP - 16PSI. | |
| G2 | 33886 | ALTERNATOR | |
| G3 | 33887 | STARTING MOTOR AS | |
| G4 | 33891 | SERPENTINE BELT | |
| G5 | 33892 | FAN - SIX BLADE | |
| G6 | 33894 | SWITCH - OIL PRESSURE | |
| G7 | 33896 | THERMOSTAT | |
| G8 | 33900 | FILTER ELEMENT - FUEL - PRIMARY | |
| G9 | 33901 | FILTER AS - OIL ENGINE OIL | |
| G10 | 33902 | FILTER GP - FUEL - SECONDARY | |
| G11 | 33903 | KIT - DRAIN FUEL FILTER | |
| G12 | 33898 | FILTER ELEMENT AS - AIR PRIMARY | |
| G13 | 33899 | FILTER ELEMENT AS - AIR SECONDARY | |
| G14 | 33888 | SENSOR - FUEL WATER SEPARATOR | |
| G15 | 61941 | UPPER RADIATOR HOSE | |
| G16 | 61942 | LOWER RADIATOR HOSE | |
| G17 | 61943 | BREATHER HOSE | |
| G18 | 61944 | VENT HOSE |
