Engine Compartment Parts · Jackrabbit Jackrabbit RA 20-30/30

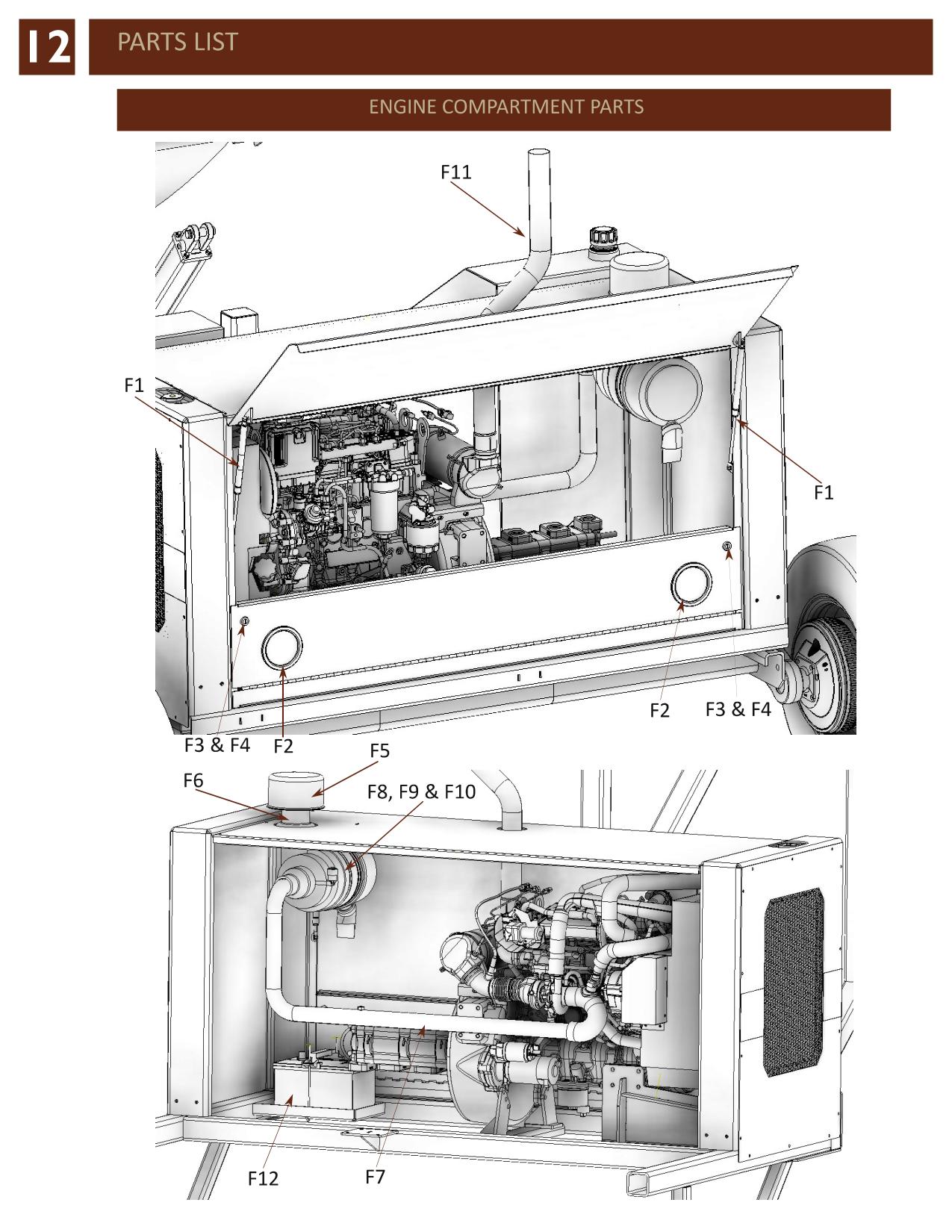

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F1 | 61692 | GAS SHOCK | |
| F2 | 30596 | RED ROUND LED | |
| F3 | 27731 | 1/4 TURN LATCH | |
| F4 | 27732 | 1/4 TURN LATCH CAM | |
| F5 | 28339 | PRE CLEANER | |
| F6 | 60162 | RUBBER INTAKE TUBE | |
| F7 | 61718 | INTAKE PIPE | |
| F8 | 56600 | AIR FILTER HOUSING | |
| F9 | 33898 | PRIMARY AIR FILTER | |
| F10 | 33899 | SECONDARY AIR FILTER | |
| F11 | 60255 | EXHAUST PIPE | |
| F12 | 61890 | BATTERY KIT |
