Horizontal Bin Conveyor · Jackrabbit Jackrabbit RA 20-30/30

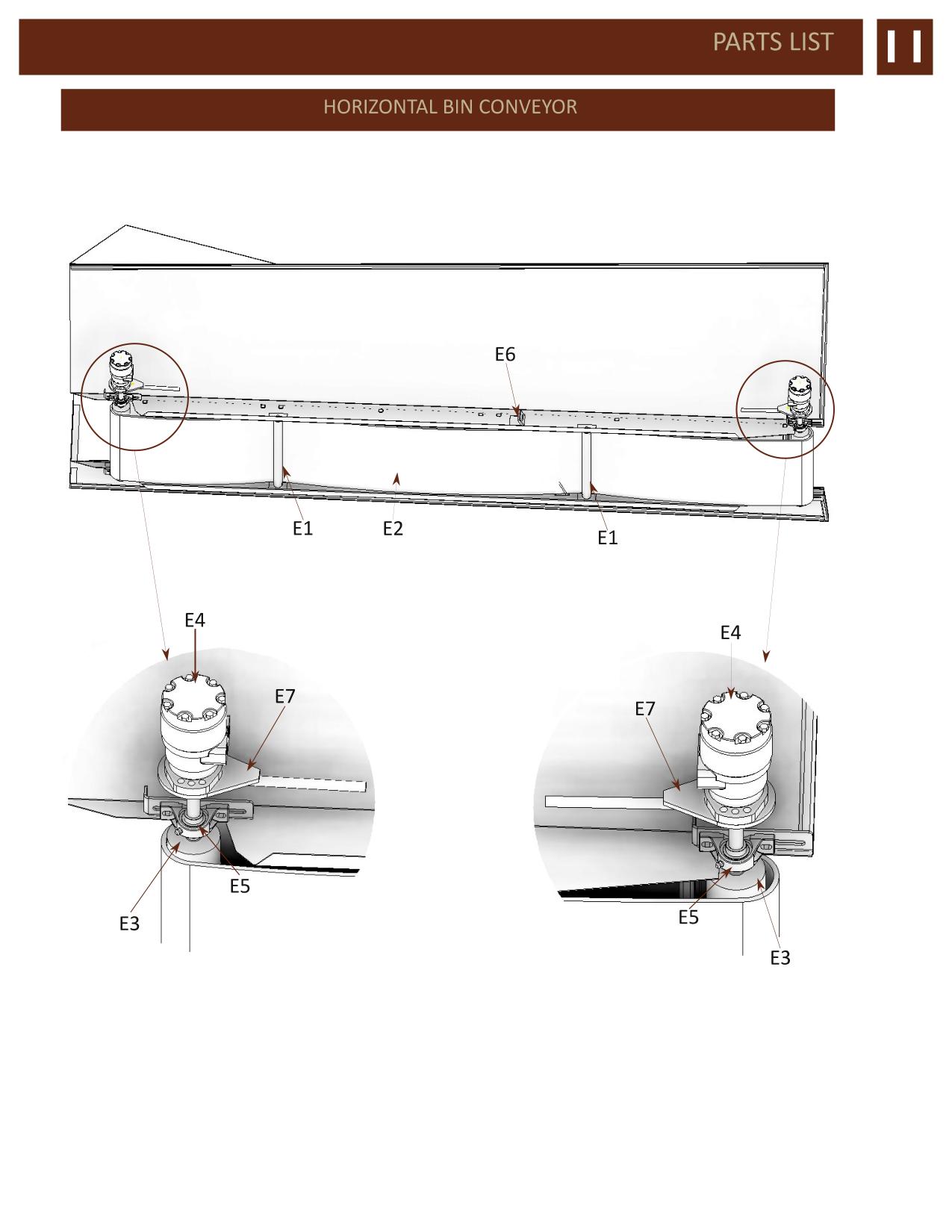

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 25070 | 20" RETURN ROLLER | |
| E2 | 61593 | GIANT Z - HZ BELT | |
| E3 | 24340A | 20" DRIVE PULLEY | |
| E4 | 29104 | BIN MOTOR | |
| E5 | 22977 | BRG PILLOW BLOCK 1" | |
| E6 | 24556 | BELT WIPER | |
| E7 | 28935 | TORQUE ARM WELDMENT |
