Upper Incline Conveyor (Lower) · Jackrabbit Jackrabbit RA 20-30/30

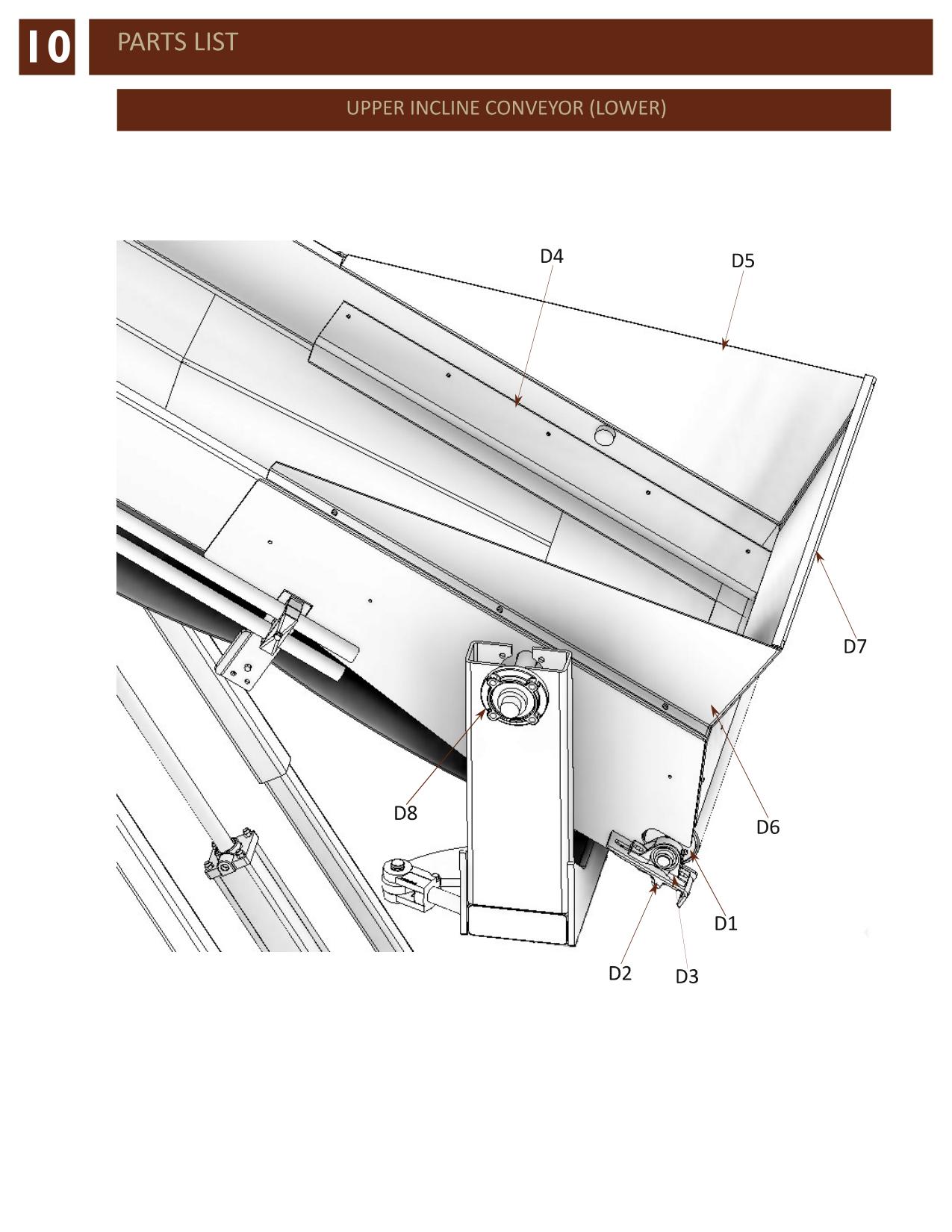

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | 24341B | 30" IDLER ROLLER | |
| D2 | 26464A | BEARING PAD | |
| D3 | 22977 | BRG PILLOW BLOCK 1" | |
| D4 | 61937 | UPPER CHUTE INNER SEAL | |
| D5 | 61820 | UPPER CHUTE FUNNEL - LH | |
| D6 | 61821 | UPPER CHUTE FUNNEL - RH | |
| D7 | 61822 | UPPER CHUTE FUNNEL - REAR | |
| D8 | 31067 | RFC 1-1/2" FLANGE BEARING |
