Upper Incline Conveyor (Upper) · Jackrabbit Jackrabbit RA 20-30/30

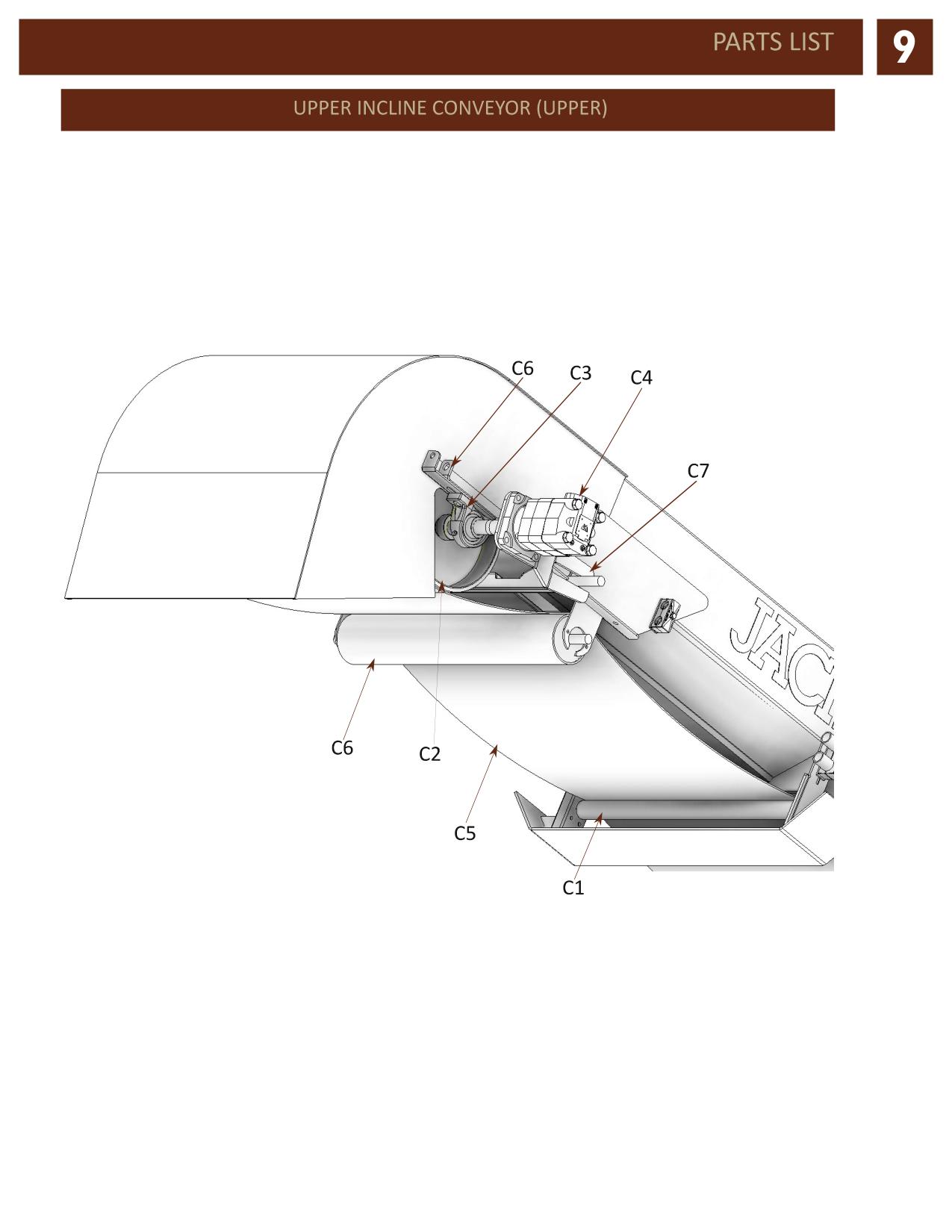

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C1 | 26018 | 30" RETURN ROLLER | |
| C2 | 28898 | INCLINE CONVEYOR DRIVE PULLEY | |
| C3 | 22097 | 1 1/2" PILLOW BLOCK | |
| C4 | 29992 | UPPER INCLINE DRIVE MOTOR | |
| C5 | 61644 | 30" GIANT Z BELT - UPPER CHUTE | |
| C6 | 23473 | BEARING TAKE UP PL. | |
| C7 | 25996 | TORQUE ARM | |
| C8 | 24374 | SNUB ROLLER WELDMENT 30" |
