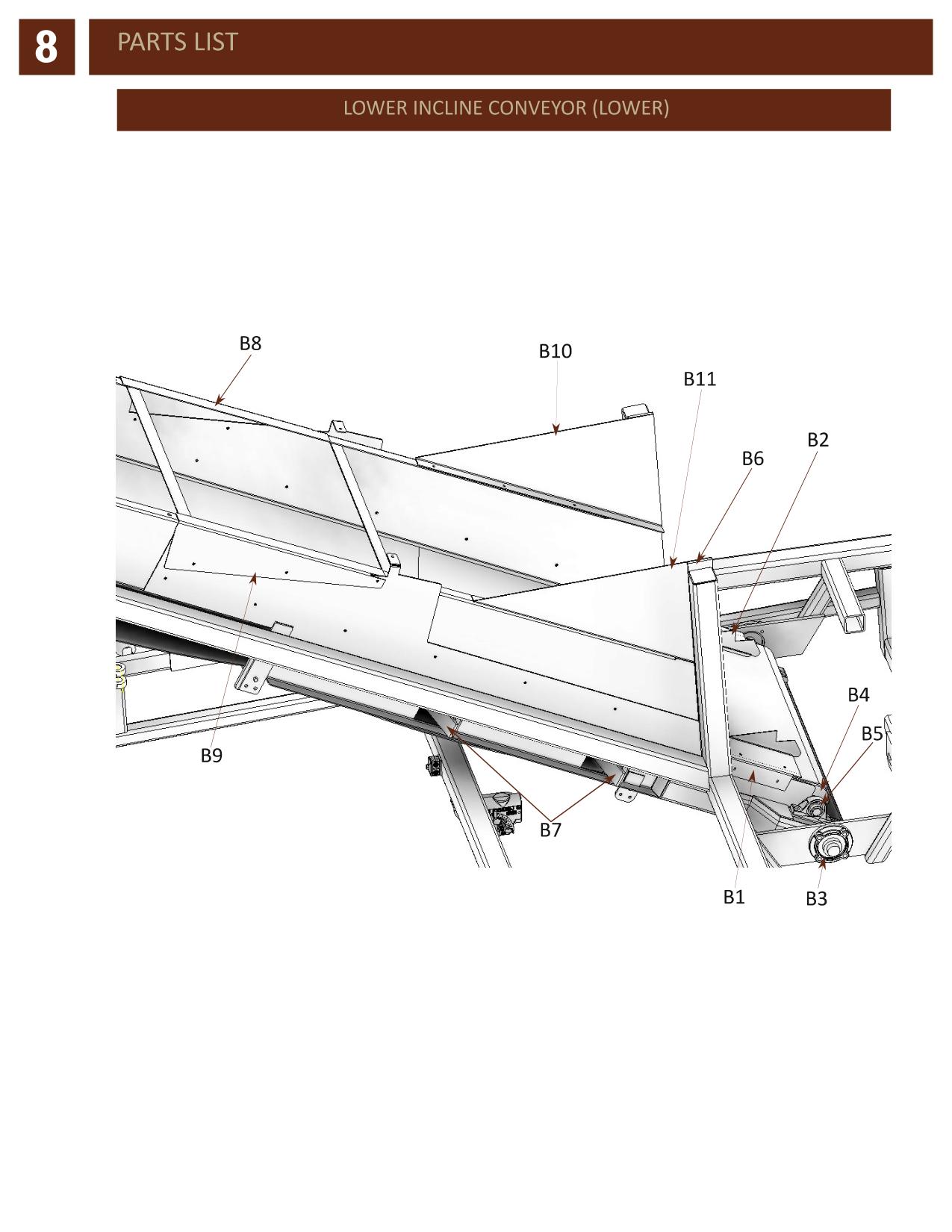

Lower Incline Conveyor (Lower) · Jackrabbit Jackrabbit RA 20-30/30
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B1 | 61775 | TRANSITION SEAL AS RH | |
| B1.1 | 61765 | TBL UHMW TRANSITION SEAL | |
| B1.2 | 61762 | RIGHT TRANSITION SEAL | |
| B2 | 61774 | TRANSITION SEAL AS LH | |
| B2.1 | 61765 | TBL UHMW TRANSITION SEAL | |
| B2.2 | 61761 | LEFT TRANSITION SEAL | |
| B3 | 31067 | RFC 1-1/2" FLANGE BEARING | |
| B4 | 24341B | 30" IDLER ROLLER | |
| B5 | 22977 | BRG PILLOW BLOCK 1" | |
| B6 | 61770 | SLIDER | |
| B7 | 26887 | BELT WIPER | |
| B8 | 60761 | CROSS CONVEYOR COVER LEFT | |
| B9 | 60762 | CROSS CONVEYOR COVER RIGHT | |
| B10 | 61830 | LOWER CHUTE FUNNEL LH | |
| B11 | 61831 | LOWER CHUTE FUNNEL RH |
