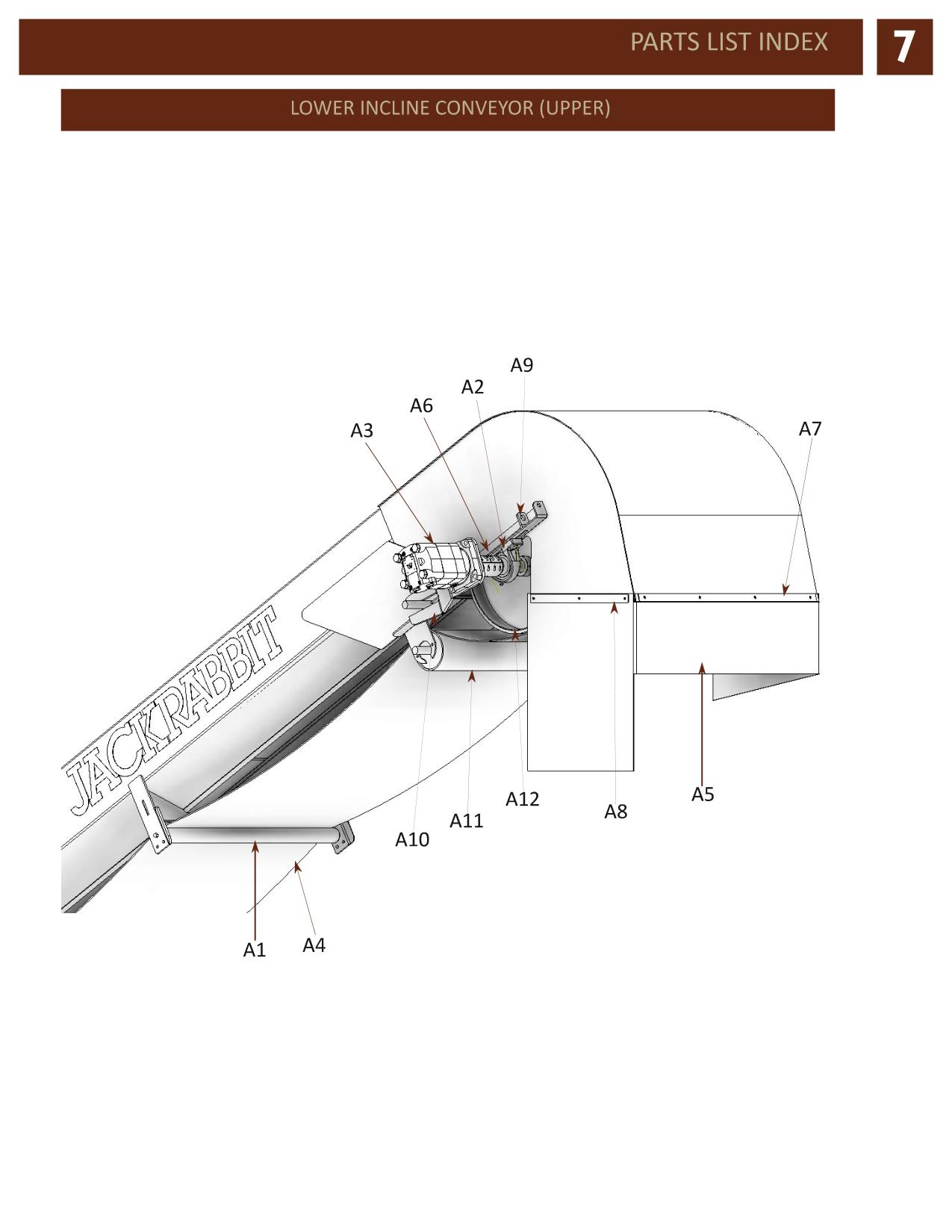

Lower Incline Conveyor (Upper) · Jackrabbit Jackrabbit RA 20-30/30
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26018 | 30" RETURN ROLLER | |
| A2 | 22097 | 1 1/2" PILLOW BLOCK | |
| A3 | 26034 | LOWER INCLINE DRIVE MOTOR | |
| A4 | 61624 | GIANT Z - LOWER INCL. BELT | |
| A5 | 61777 | CHUTE TIP RUBBER | |
| A6 | 29502 | COUPLER DBL SPLT 1.5X4.5 | |
| A7 | 61778 | CHUTE TIP CLAMP STRIP FRONT | |
| A8 | 61779 | CHUTE TIP CLAMP STRIP SIDE | |
| A9 | 23473 | BEARING TAKE UP PL. | |
| A10 | 25996 | TORQUE ARM | |
| A11 | 24374 | SNUB ROLLER WELDMENT 30" | |
| A12 | 26011 | INCLINE CONVEYOR DRIVE PULLEY |
