← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Cat C3.4L Engine Replacement Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

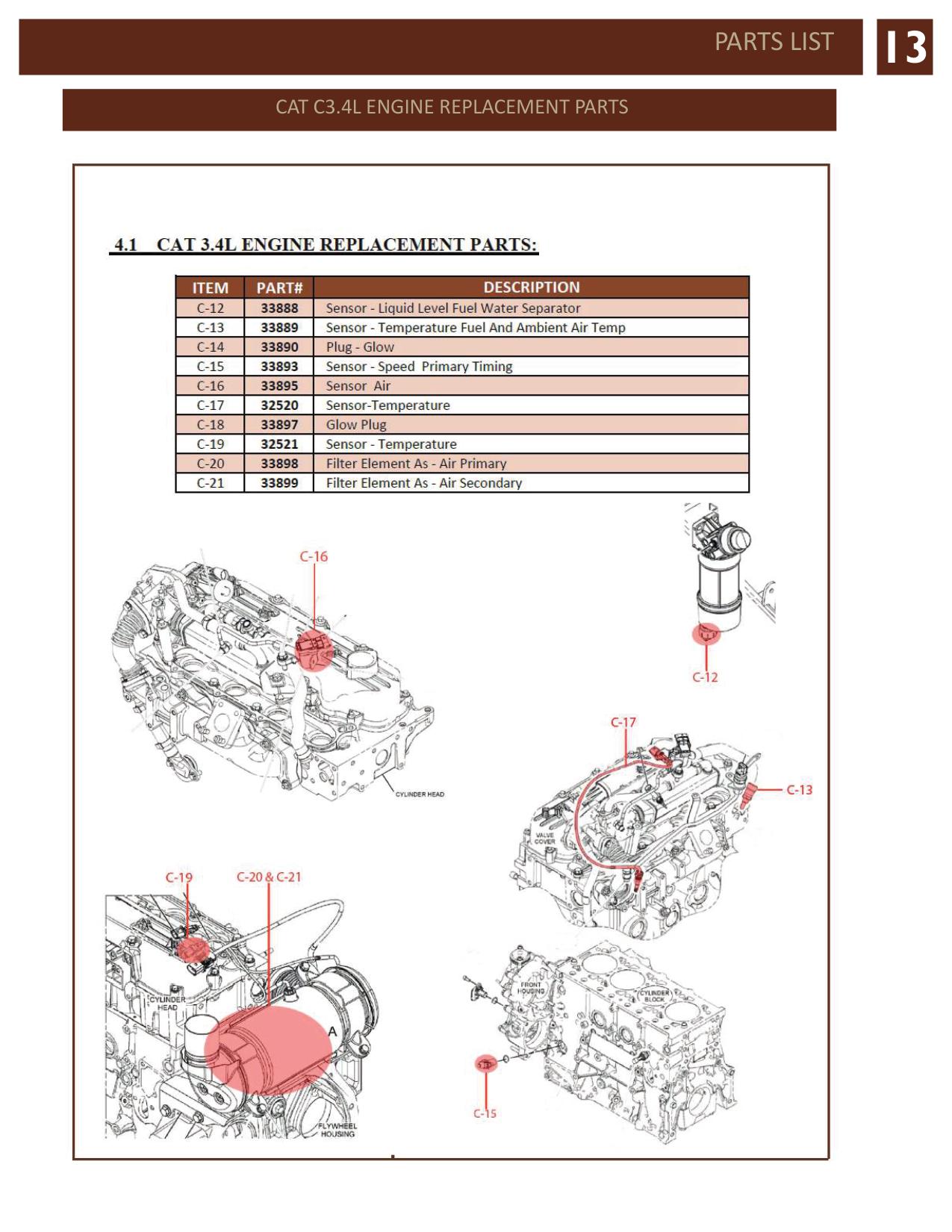

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C-12 | 33888 | Sensor - Liquid Level Fuel Water Separator | |
| C-13 | 33889 | Sensor - Temperature Fuel And Ambient Air Temp | |
| C-14 | 33890 | Plug - Glow | |
| C-15 | 33893 | Sensor - Speed Primary Timing | |
| C-16 | 33895 | Sensor Air | |
| C-17 | 32520 | Sensor-Temperature | |
| C-18 | 33897 | Glow Plug | |
| C-19 | 32521 | Sensor - Temperature | |
| C-20 | 33898 | Filter Element As - Air Primary | |
| C-21 | 33899 | Filter Element As - Air Secondary |
