← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

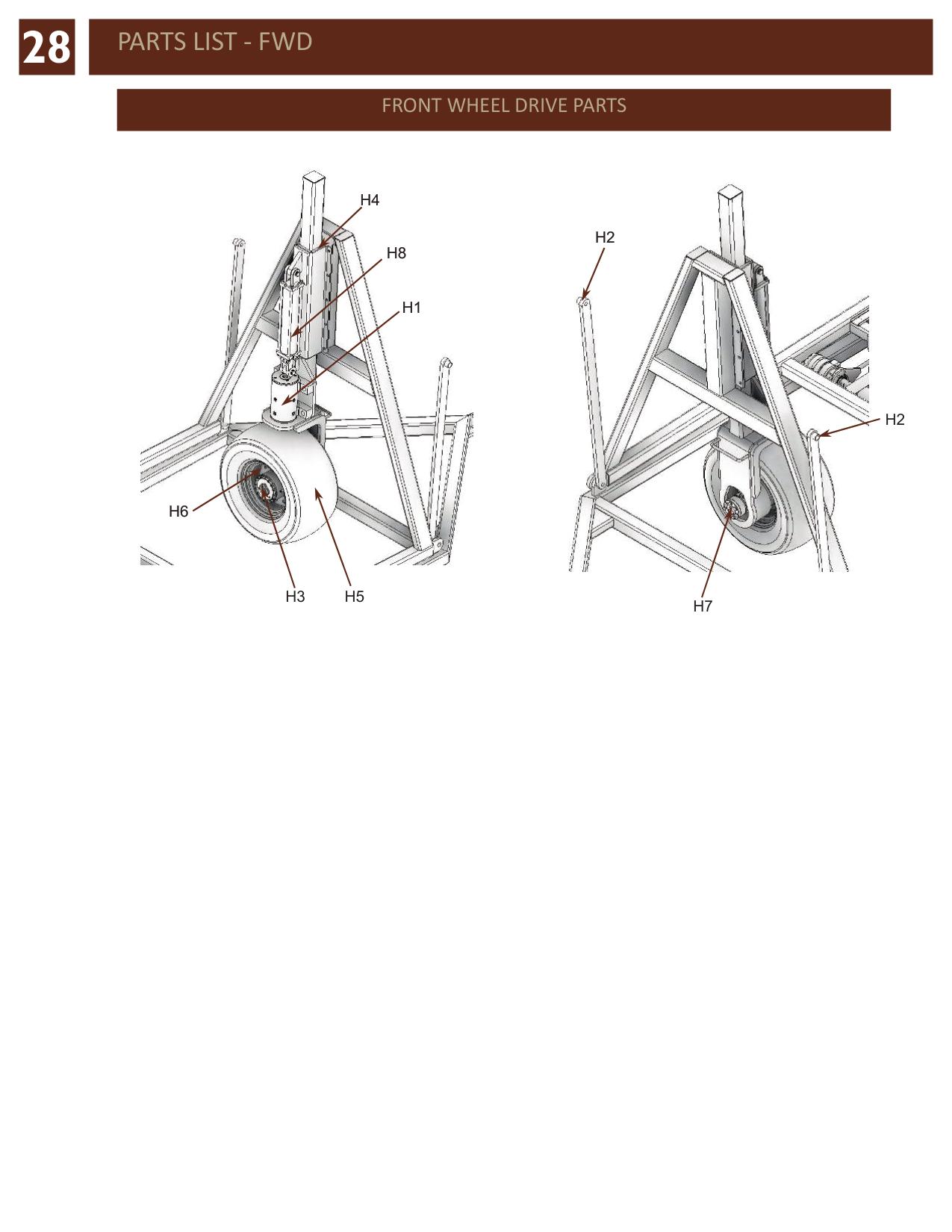

Front Wheel Drive Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| H1 | 28239 | HELAC ROTARY ACTUATOR | |
| H2 | 64097 | FWD TRANSIT LINK | |
| H3 | 26483A | WHEEL HUB | |
| H4 | 28328 | UHMW SLIDE FWD | |
| H5 | 26481A | FWD WHEEL TIRE | |
| H6 | 26482 | FWD WHEEL RIM | |
| H7 | 61725 | HYDRAULIC MOTOR | |
| H8 | 28354 | GAS CYLINDER | |
| 24537 | JACKRABBIT (WHITE) | ||
| 24538 | JACKRABBIT (BROWN) | ||
| 24546 | DIESEL (WHITE) | ||
| 24548 | HYDRAULIC (WHITE) | ||
| 24548A | HYDRAULIC (BROWN) | ||
| 24986 | CONTROL PANEL | ||
| 27583 | WARNING (DECAL) | ||
| J1 | 28834 | AXEL ASSEMBLY | |
| 8 | 27817 | PD341 ORB | 2 |
