← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Miscellaneous Components · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

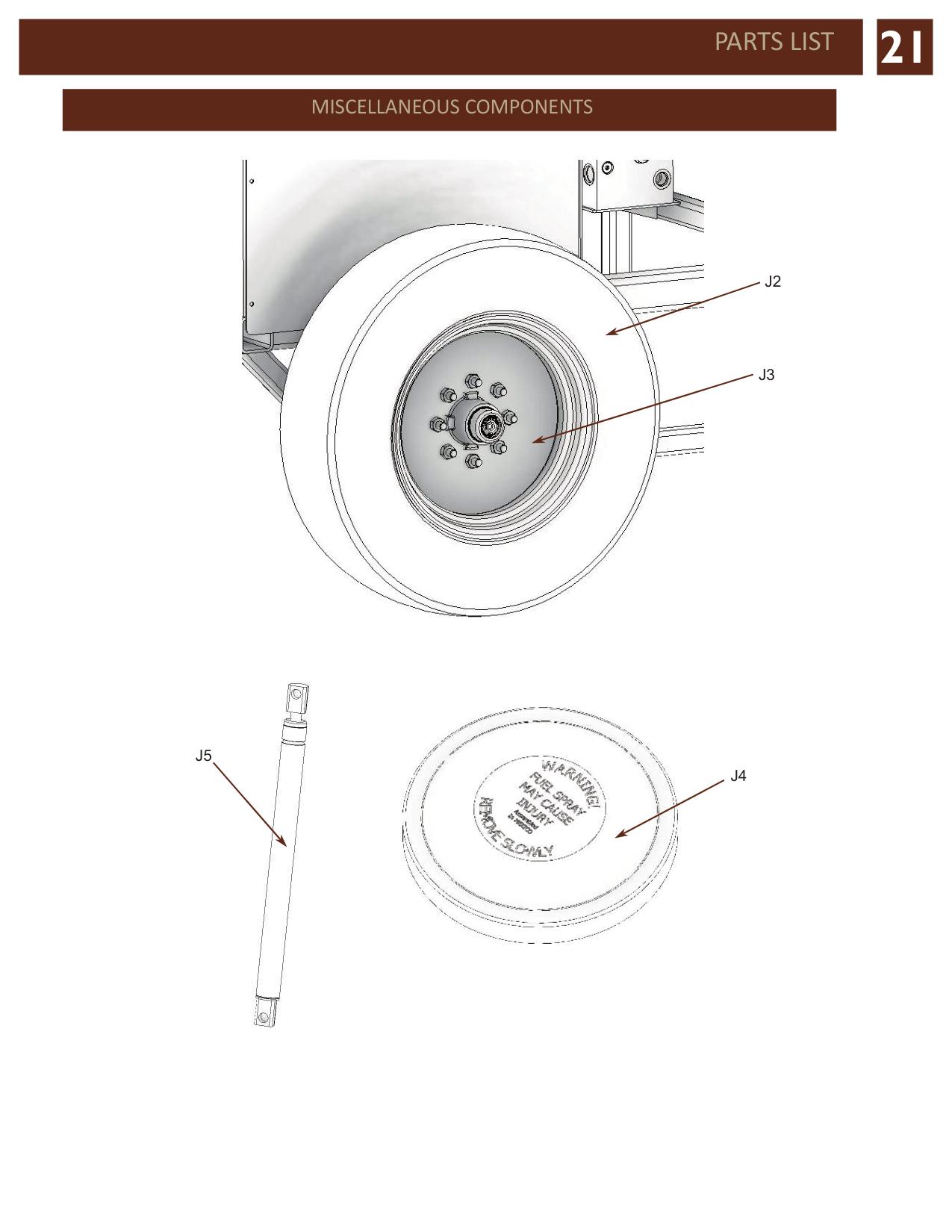

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J2 | 30549 | TIRE 12-16.5/12 PLY COMM LH TR | |
| J3 | 61749 | RIM - 16.5 x 9.75 | |
| J4 | 24751 | FUEL CAP #703-1060 | |
| J5 | 27285 | GAS SHOCK | |
| 25750 | BEIGE TOUCH UP | ||
| 25750A | BROWN TOUCH UP | ||
| 27553 | PRIMER, MIXED | ||
| 27552-1 | PRIMER, 1 GAL. | ||
| 27552-2 | ACTIVATOR, 1 GAL. | ||
| 27552-A | BEIGE, MIXED, 1 GAL. | ||
| 27552-AA | BEIGE, NOT MIXED, 1 GAL. | ||
| 27552-B | BROWN, MIXED, 1 GAL. | ||
| 27552-BB | BROWN, NOT MIXED 3/4 GAL | ||
| 27552-C | HARDENER, 1 PT. | ||
| 27552D | ENHANCER, 1 PT. | ||
| 8 | 27817 | PD341 ORB | 2 |
