← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Control Pod Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

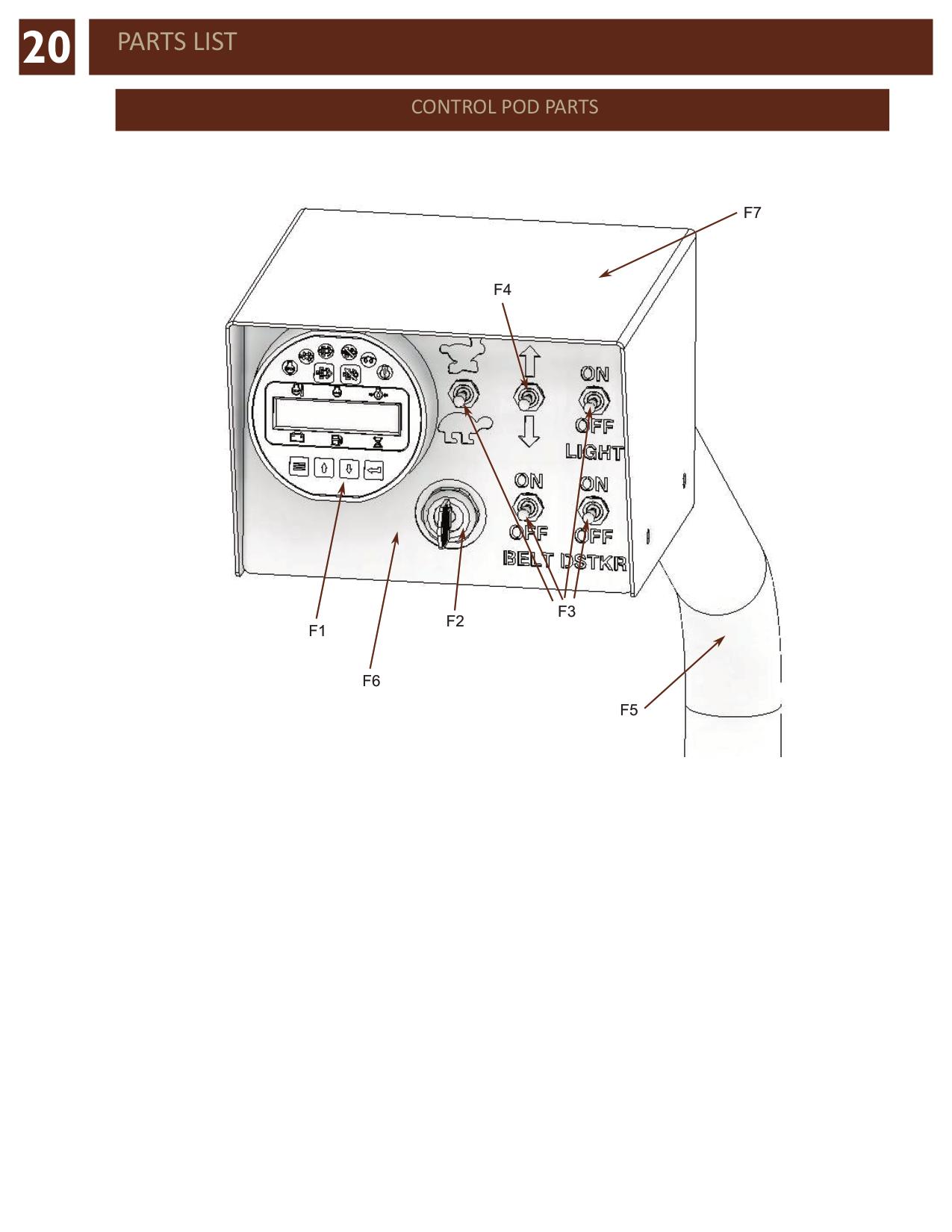

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F1 | 30862 | ENGINE DISPLAY GAUGE | |
| F2 | 22416 | KEY IGNITION SWITCH | |
| F3 | 27527 | ON/OFF SWITCH | |
| F4 | 27867 | MOMENTARY SWITCH | |
| F5 | 60481 | PIVOT TUBE | |
| F6 | 60489 | MAIN CONTROL BOX | |
| F7 | 60489 | CONTROL PANEL HOOD |
