Woodchuck Cross Conveyor Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

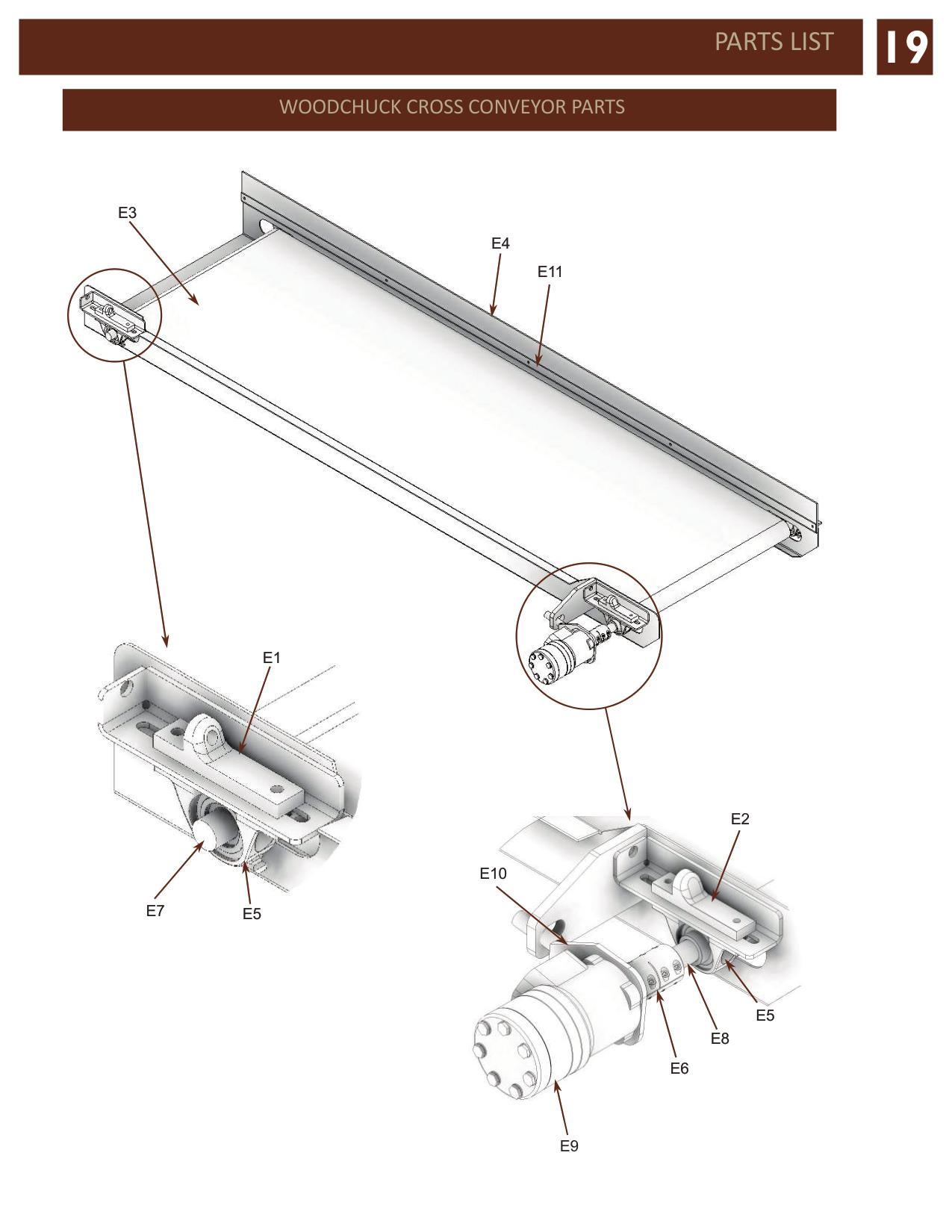

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E1 | 26346B | 3/8" - BEARING PUSHER LEFT | |
| E2 | 26464D | 3/8" - BEARING PUSHER RIGHT | |
| E3 | 29462 | GIANT Z BELT 24X160 | |
| E4 | 29453 | CROSS CONVEYOR SEAL | |
| E5 | 22977 | BRG PILLOW BLOCK 1" | |
| E6 | 26493 | RULAND 1" COUPLING | |
| E7 | 29443 | RUBBERIZED IDLER PULLY WITH SHAFT | |
| E8 | 29444 | RUBBERIZED DRIVE PULLY WITH SHAFT | |
| E9 | 29357 | CONVEYOR MOTOR | |
| E10 | 24395E | TORQUE ARM WELDMENT (CROSS CONVEYOR 2.5" ARM PIN) | |
| E11 | 29452 | SEAL HOLD DOWN - CROSS CONVEYOR |
