← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Woodchuck Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

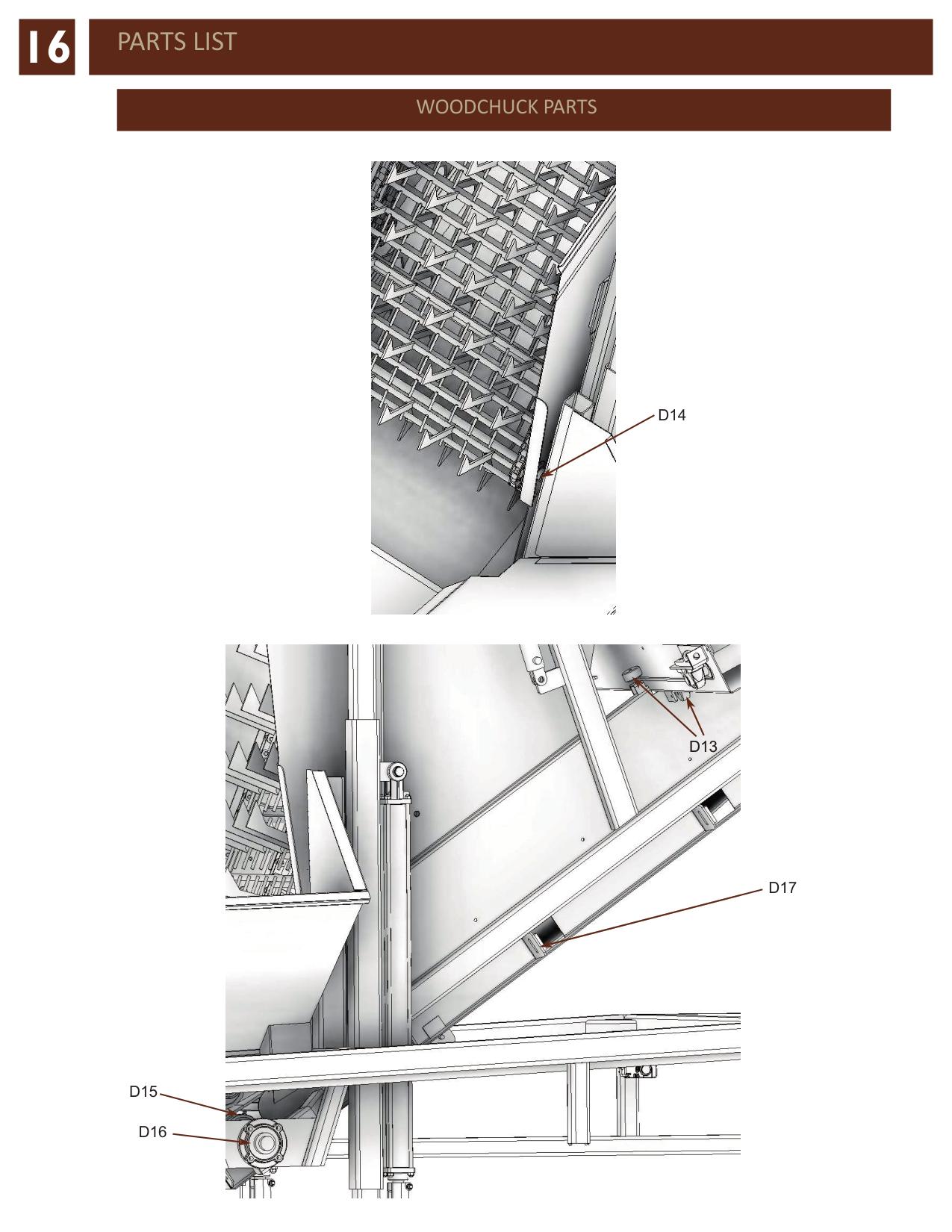

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D14 | 23524 | FLANGETTE BEARING | |
| D15 | 22096 | BRG PILLOW BLOCK 1.25" | |
| D16 | 31067 | RFC 1-1/2" FLANGE BEARING | |
| D17 | 28936 | 36" BELT WIPER | |
| 1 | 60795 | WOODCHUCK CA557 CHAIN ASSEMBLY | 2 |
| 2 | 29562 | SPREADER BAR WELDMENT | 36 |
| 3 | 29559 | SPREADER BAR WELDMENT - B | 18 |
| 4 | 29560 | SPREADER BAR WELDMENT - A | 18 |
