← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Woodchuck Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

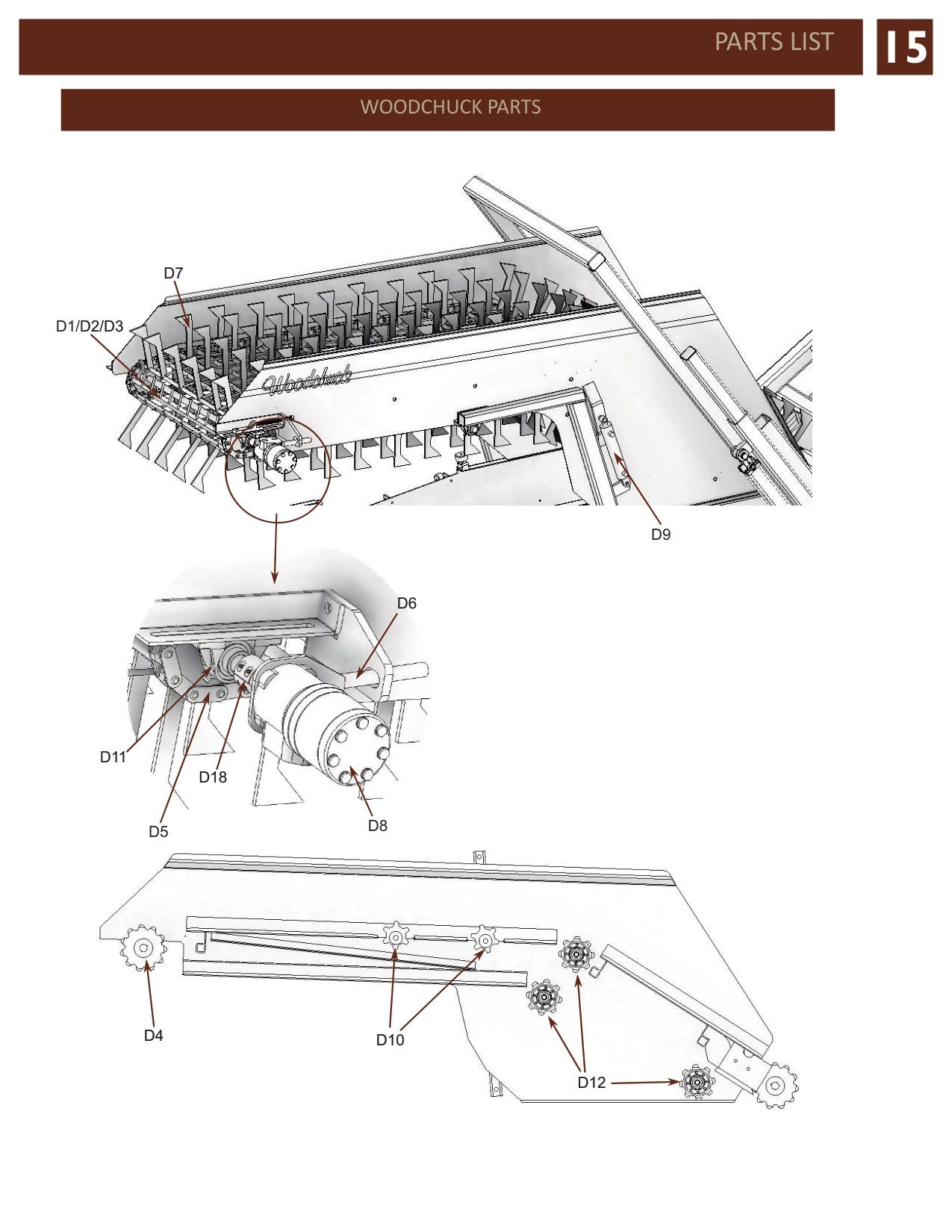

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| D1 | 29562 | SPREADER BAR (NO FLAGS) | |
| D2 | 29560 | SPREADER BAR (6 FLAGS) | |
| D3 | 29559 | SPREADER BAR (5 FLAGS) | |
| D4 | 26202 | 11T 550 1 BORE SPROCKET | |
| D5 | 60795 | WOODCHUCK CA557 CHAIN | |
| D6 | 24395D | TORQUE ARM WELDMENT ?WOODCHUCK 5.25" ARM PIN) | |
| D7 | 60808 | 36 IN WOODCHUCK CHAIN | |
| D8 | 29358 | WOODCHUCK CHAIN MOTOR | |
| D9 | 28937 | CYLINDER 1-1/2" X 6" WOODCHUCK LIFT | |
| D10 | 26201 | 6T 550 ECCENTRIC SPROCKET WITH BEARING 5/8" BORE | |
| D11 | 22977 | VAK. 1" PILLOW BLOCK BEARING | |
| D12 | 22983 | 8T 550 IDLER - 5/8" BORE G&G | |
| D13 | 29820 | WOODCHUCK UHMW ROLLER | |
| D18 | 26493 | RULAND 1" COUPLING |
