← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

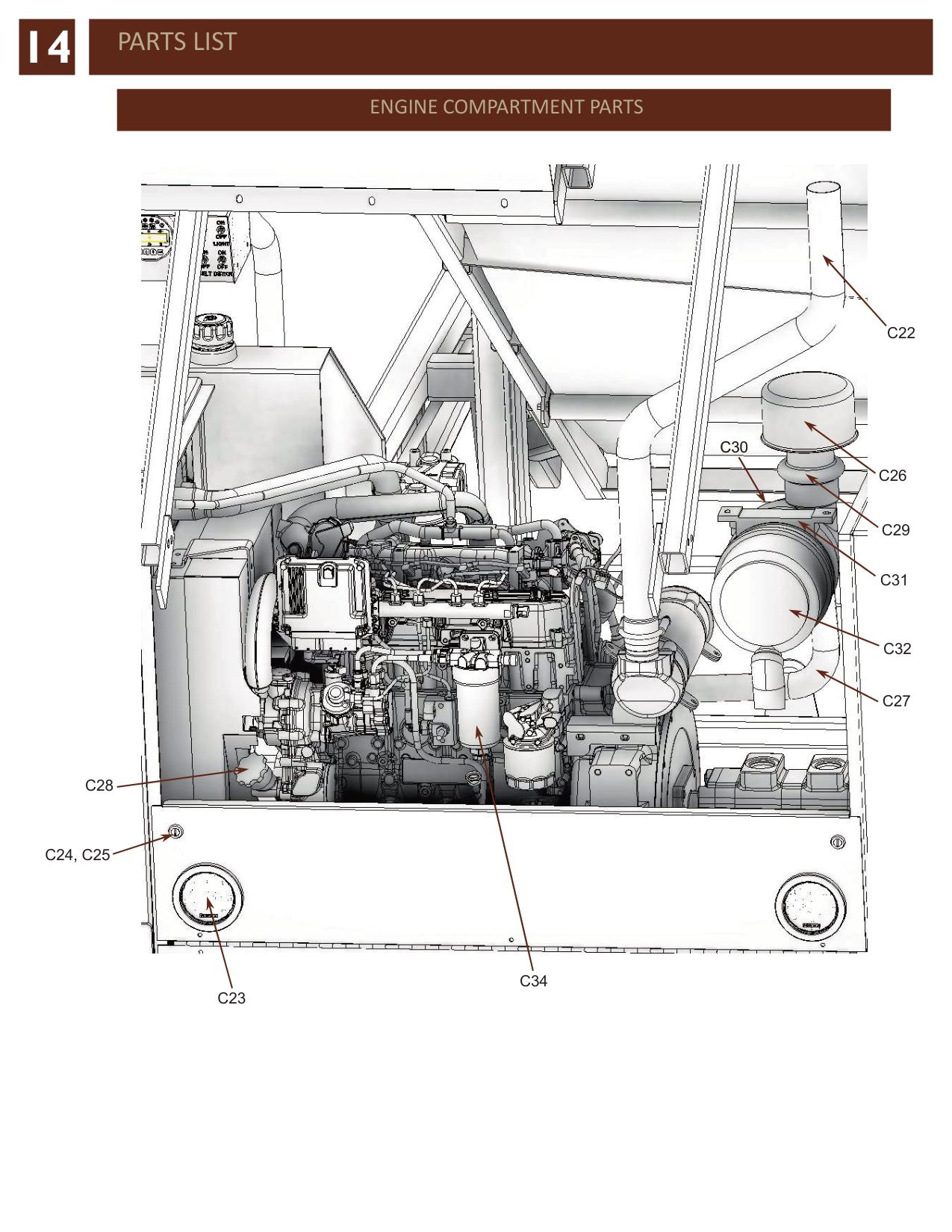

Engine Compartment Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| C22 | 60164 | CAT EXHAUST PIPE 30/36 | |
| C23 | 30596 | RED ROUND LED | |
| C24 | 27731 | 1/4 TURN LATCH | |
| C25 | 27732 | 1/4 TURN LATCH CAM | |
| C26 | 28339 | PRECLEANER EX-30 | |
| C27 | 60166 | CAT 30/36 INTAKE PIPE | |
| C28 | 30865_OIL CAP | OIL CAP | |
| C29 | 60162 | RUBBER INTAKE TUBE | |
| C30 | 30865_D | RUBBER ADAPTER | |
| C31 | 30865_C | AIR CLEANER STRAP | |
| C32 | 30865_B | AIR CLEANER BODY | |
| C33 | 30865_EL | RUBBER ELBOW (NOT SHOWN) | |
| C34 | 33900 | FUEL FILTER ULTRA-HIGH EFFICIENCY |
