Bin Conveyor Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

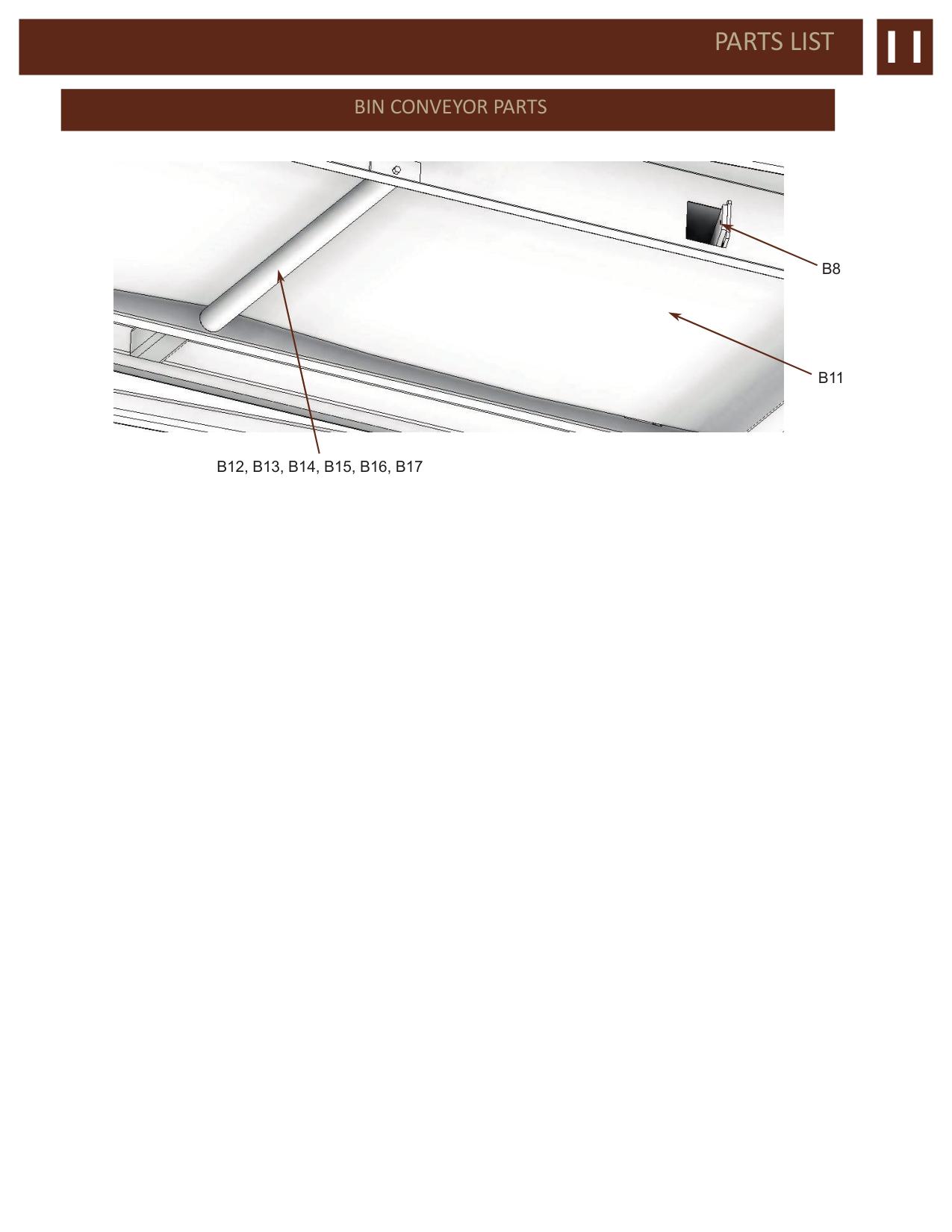

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B8 | 26887 | BELT WIPER UHMW 37" | |
| B11 | 64256 | 3036 PRECLEANER - HORIZONTAL BIN BELT - 30 X 364 | |
| B12 | 33284 | 30" RETURN ROLLER | |
| B13 | 29844 | HEX SHAFT FOR RETURN ROLLER | |
| B14 | 28188 | COMPRESION SPRING | |
| B15 | 27306 | BRG RETURN ROLLER (BEARING) | |
| B16 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| B17 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| C-1 | 33885 | Radiator Cap - 16PSI. | |
| C-2 | 33886 | Alternator | |
| C-3 | 33887 | Starting Motor AS | |
| C-4 | 33891 | Belt - Serpentine | |
| C-5 | 33892 | Fan - Six Blade | |
| C-6 | 33894 | Switch - Oil Pressure | |
| C-7 | 33896 | Thermostat | |
| C-8 | 33900 | Filter Element - Fuel - Primary | |
| C-9 | 33901 | Filter As - Oil Engine Oil | |
| C-10 | 33902 | Filter GP - Fuel - Secondary | |
| C-11 | 33903 | Kit - Drain Fuel Filter |
