Bin Conveyor Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

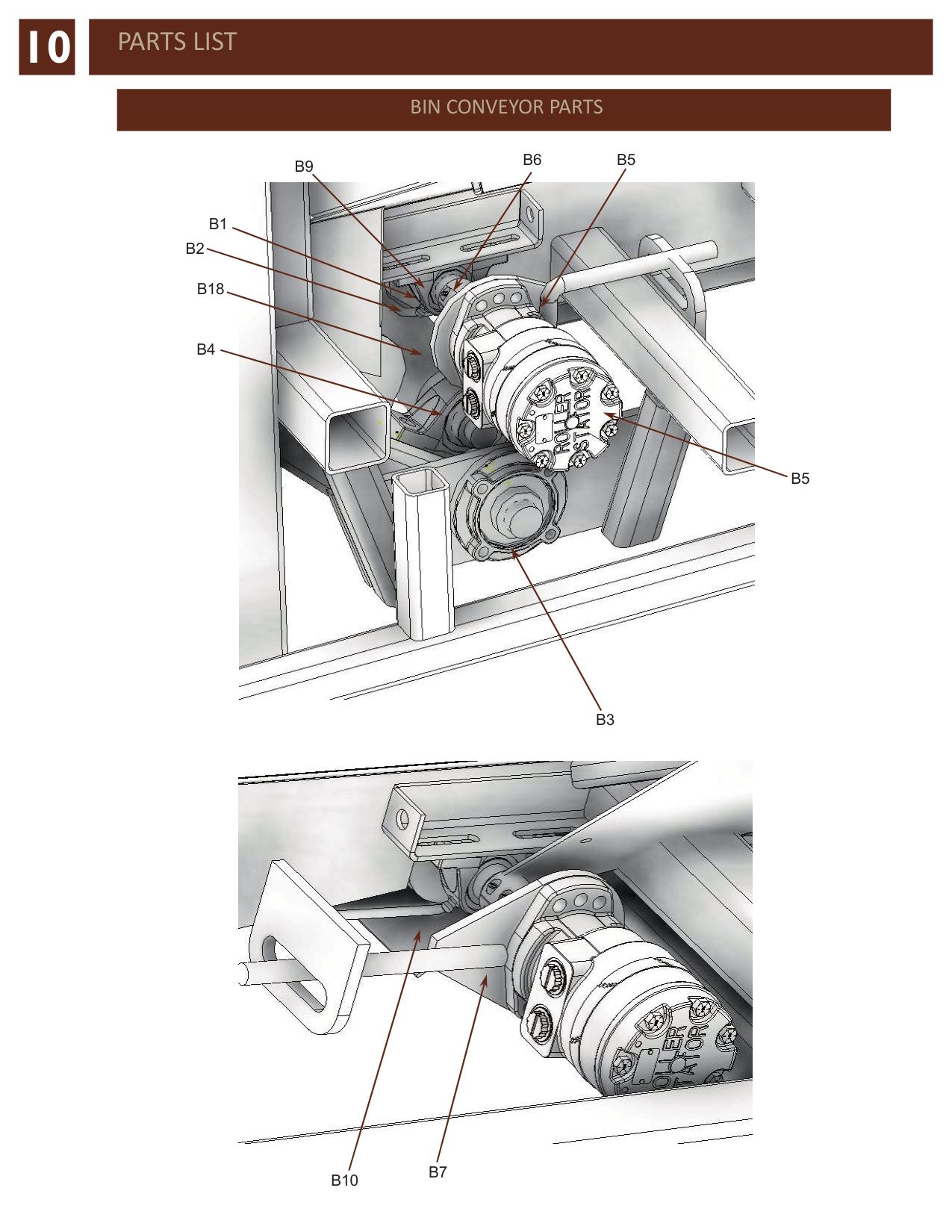

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| B1 | 28832 | 30" HORIZONTAL DRIVE SHAFT | |
| B2 | 28832A_L | 30" DRIVE LAGGING ROLLER | |
| B3 | 31067 | RFC 1-1/2" FLANGE BEARING | |
| B4 | 22096 | BRG PILLOW BLOCK 1.25" | |
| B5 | 29104 | HYDRAULIC MOTOR - RE18 | |
| B6 | 26493 | RULAND 1" MOTOR COUPLER | |
| B7 | 28935 | TORQUE ARM | |
| B9 | 22977 | BRG PILLOW BLOCK 1" | |
| B10 | 28883 | TRANSITION SEAL 4INX33IN BLK | |
| B18 | 28417 | 36 IDLER PULLEY | |
| B19 | 60856 | BENT TORQUE ARM WELDMENT | |
| B20 | 64139 | HORIZONTAL BIN BELT ( USE INSTEAD OF B11) |
