← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

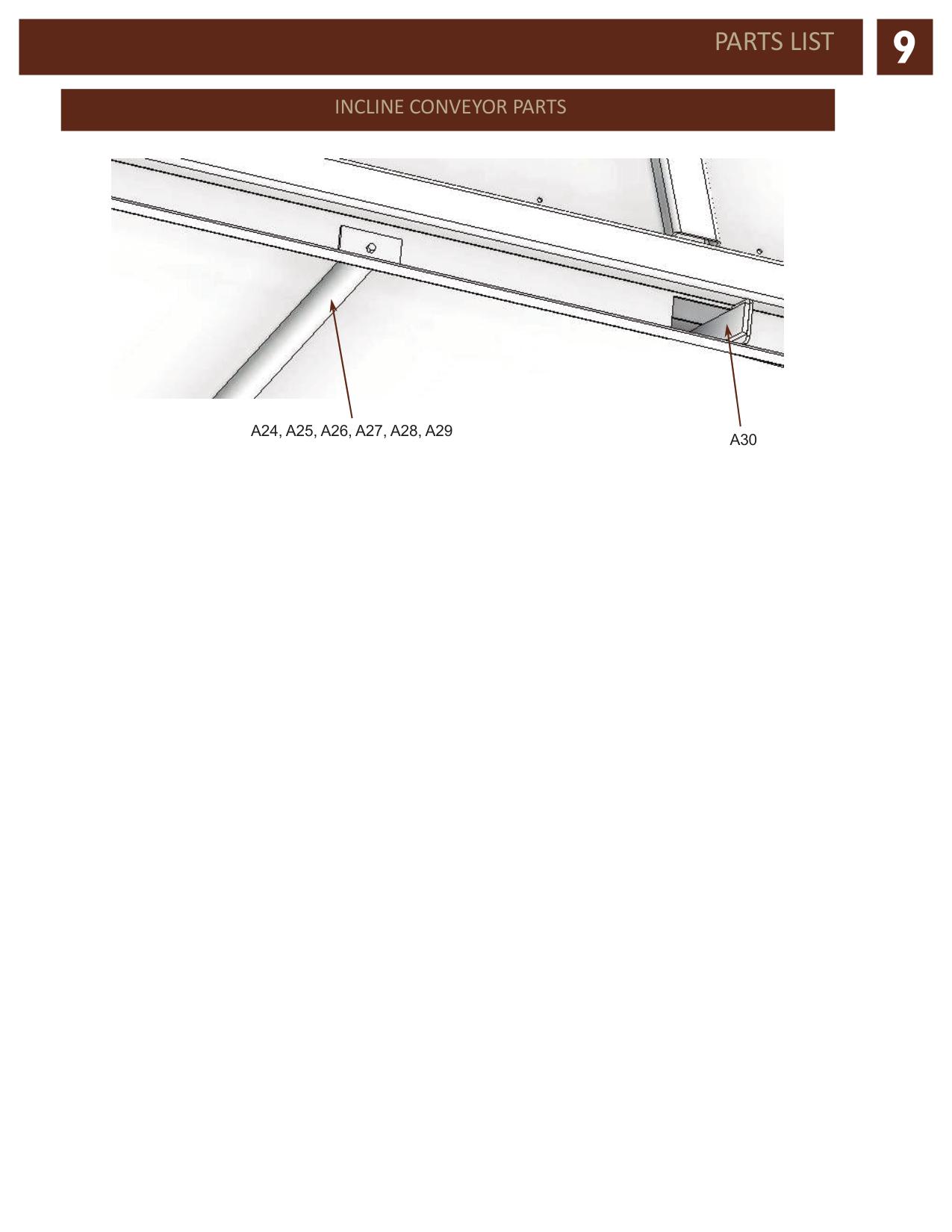

Incline Conveyor Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A24 | 27306 | BRG RETURN ROLLER (BEARING) | |
| A25 | 27307 | BRG HOUSING RETURN ROLLER (END CAP) | |
| A26 | 28506-4 | 7/16X38 3/8 HEX ROD FOR RETURN | |
| A27 | 1164083 | 1/8" X 1" SLOTTED SPRING PIN | |
| A28 | 28188 | COMPRESSION SPRING RETURN ROLL | |
| A29 | 33284 | 30" RETURN ROLLER PIPE | |
| A30 | 28936 | 36" BELT WIPER |
