← Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)

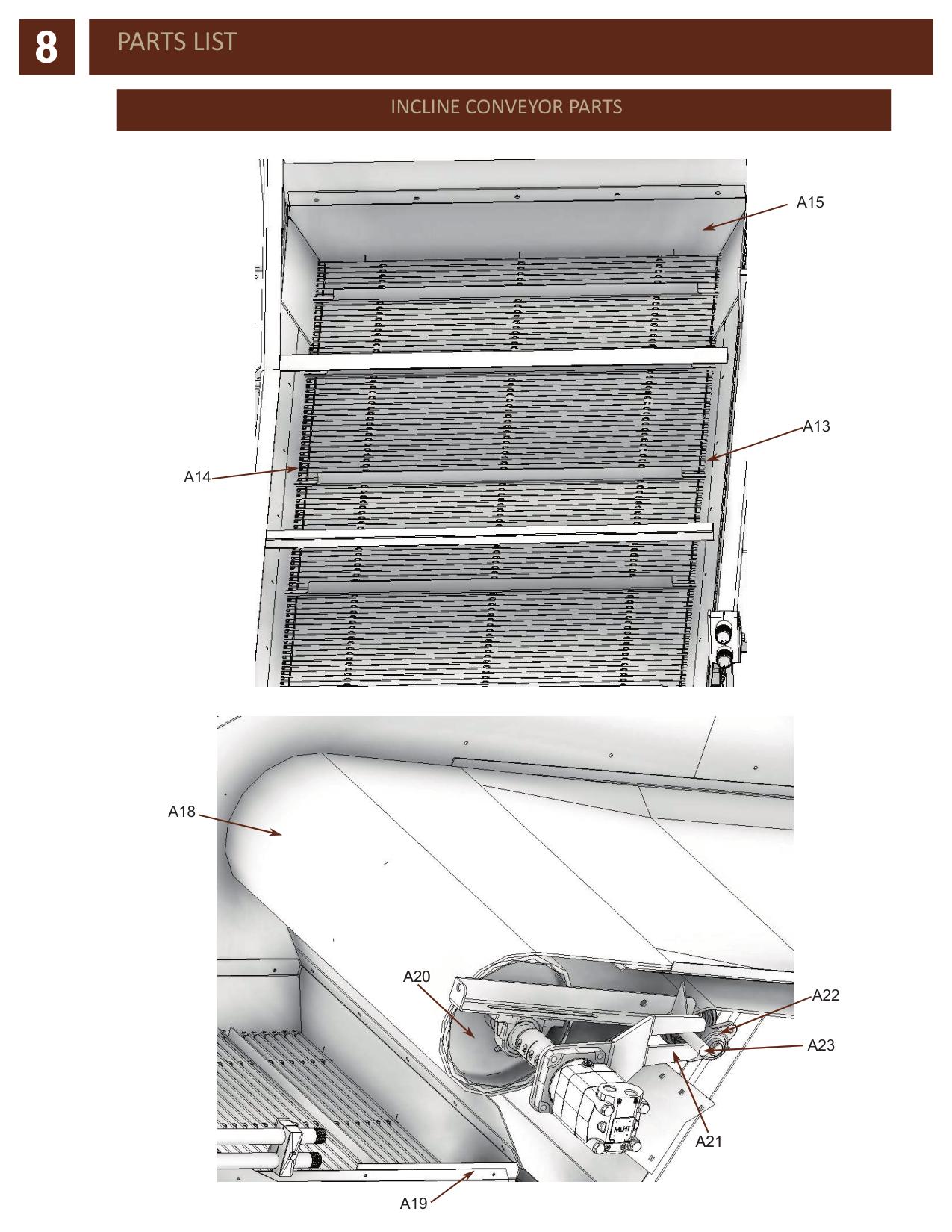

Incline Conveyor Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A13 | GC065 | UPPER ROD BELT SEAL - LH | |
| A14 | GC066 | UPPER ROD BELT SEAL - RH | |
| A15 | 64174 | CHUTE TRANSITION SEAL | |
| A18 | 64176 | 36 PRECLEANER INCLINE BELT | |
| A19 | GC067 | ROD BELT RUBBER SEAL | |
| A20 | 33224 | PRECLEANER DRIVE PULLEY WITH DRIVE SHAFT | |
| A21 | 29801 | WALNUT SNUB ROLLER CASTERS | |
| A22 | 26614 | BRG TWO-BOLT FLANGED 1" BEARING | |
| A23 | 29479 | WALNUT SNUB ROLLER SHAFT |
