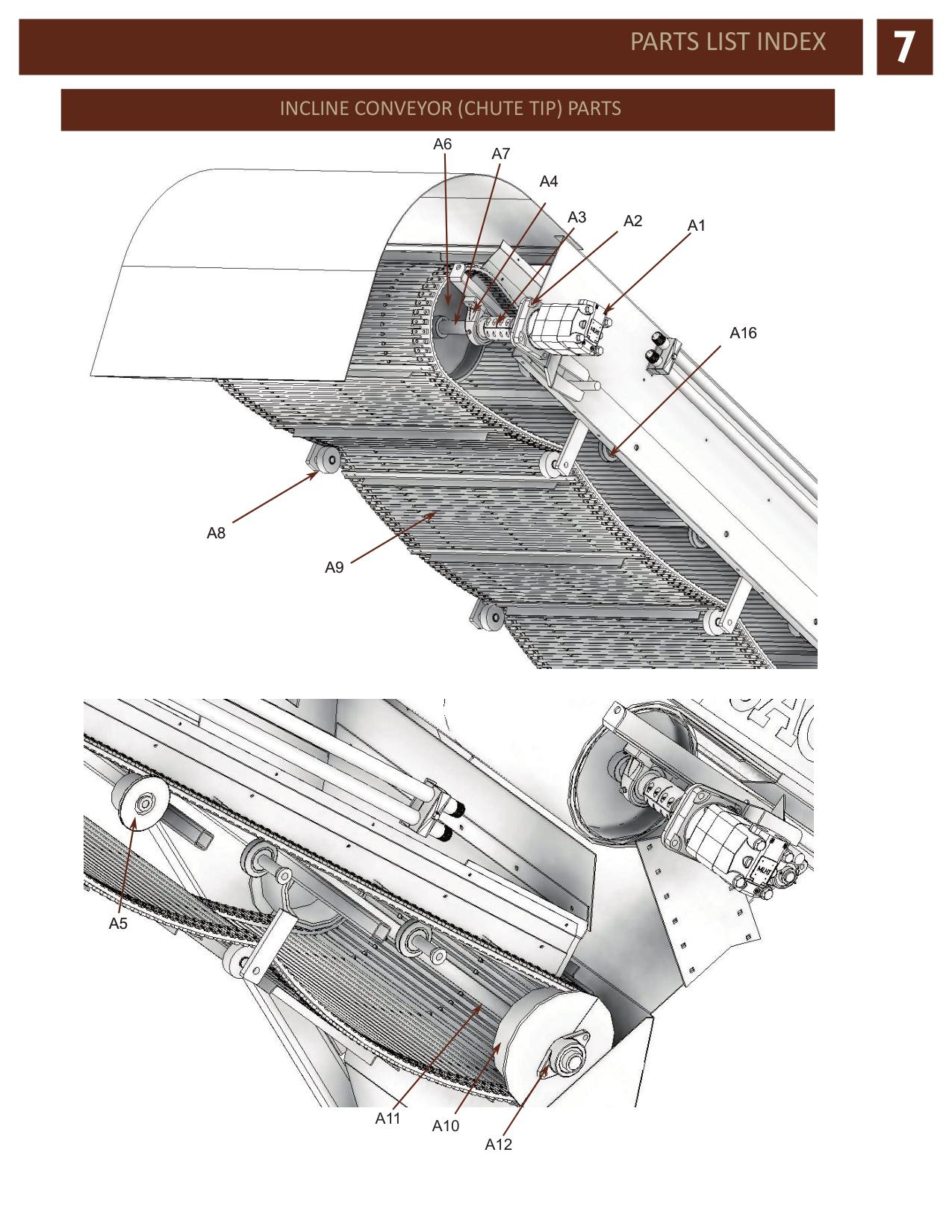

Incline Conveyor (Chute Tip) Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 3.4L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| A1 | 26034 | INCLINE CONVEYOR MOTOR | |
| A2 | 25996 | UPPER TORQUE ARM | |
| A3 | 29502 | COUPLER DBL SPLT 1.5X4.5 | |
| A4 | 22097 | BRG PILLOW BLOCK 1.5" | |
| A5 | GC078 | RUBBER FLANGE ROLLER | |
| A6 | 64169L | TWIN ROD DRIVE PULLEY | |
| A7 | 64170 | TWIN ROD DRIVE PULLEY SHAFT | |
| A8 | GC076 | 3" UR ROLLER W/ BEARING | |
| A9 | 64171 | ALMOND TWIN ROD CHAIN - 30/36 PRECLEANER | |
| A10 | GC077 | 9" FRICTION DRIVE ROLLER | |
| A11 | 64173 | TWIN ROD RETURN SHAFT | |
| A12 | 28518 | VCJT1-1/4S BEARING | |
| A16 | GC074 | 3/4" PPD ROLLER |
