← Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Front Wheel Drive Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

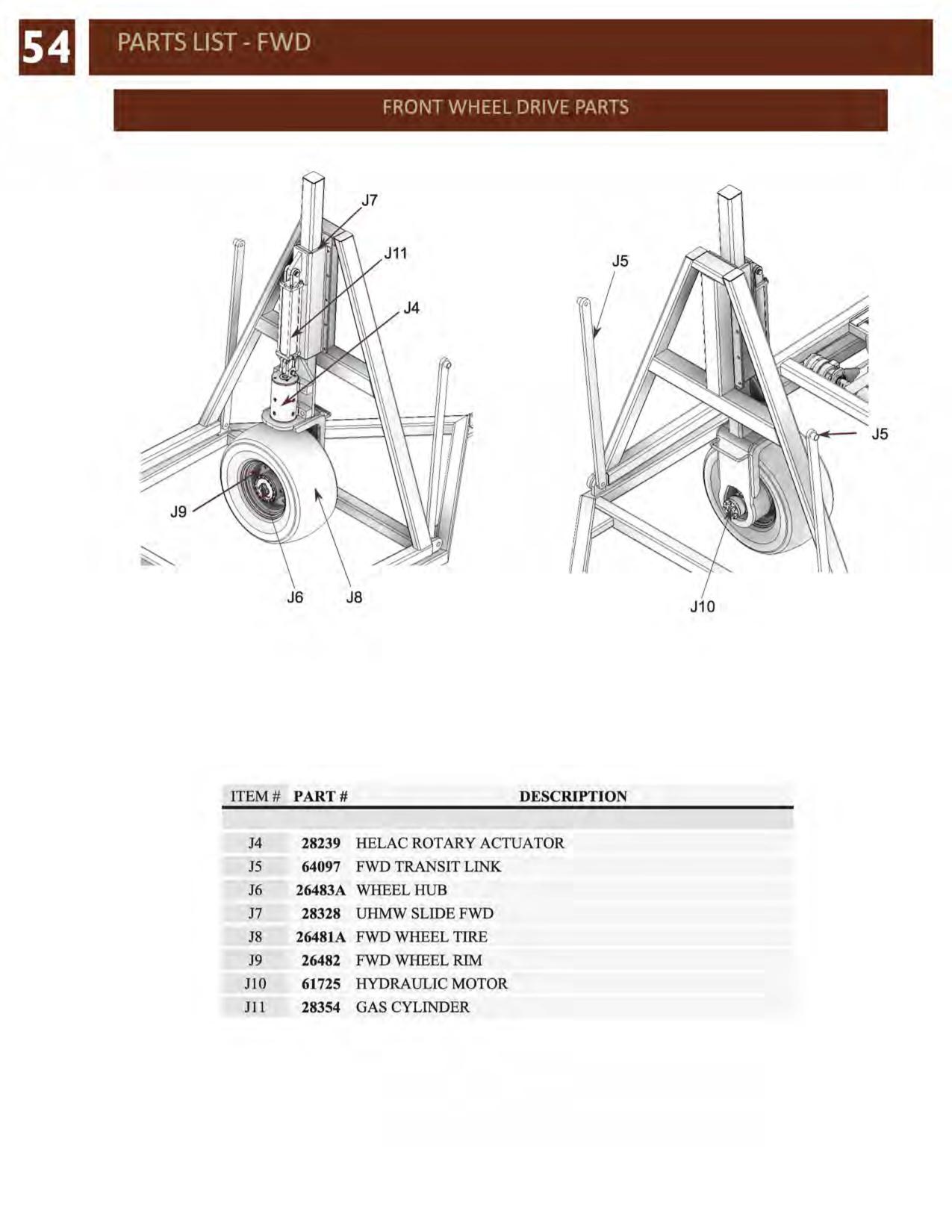

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| J4 | 28239 | HELAC ROTARY ACTUATOR | |
| J5 | 64097 | FWD TRANSIT LINK | |
| J6 | 26483A | WHEEL HUB | |
| J7 | 28328 | UHMW SLIDE FWD | |
| J8 | 26481A | FWD WHEEL TIRE | |
| J9 | 26482 | FWD WHEEL RIM | |
| J10 | 61725 | HYDRAULIC MOTOR | |
| J11 | 28354 | GAS CYLINDER | |
| 38 | 27817 | PD 341 ORB | 3 |
| 41 | S6J8JF8 | S6J8-JF8 LIVE SWIVEL | 2 |
| 42 | PD34BTX | PD34 BTX | 1 |
