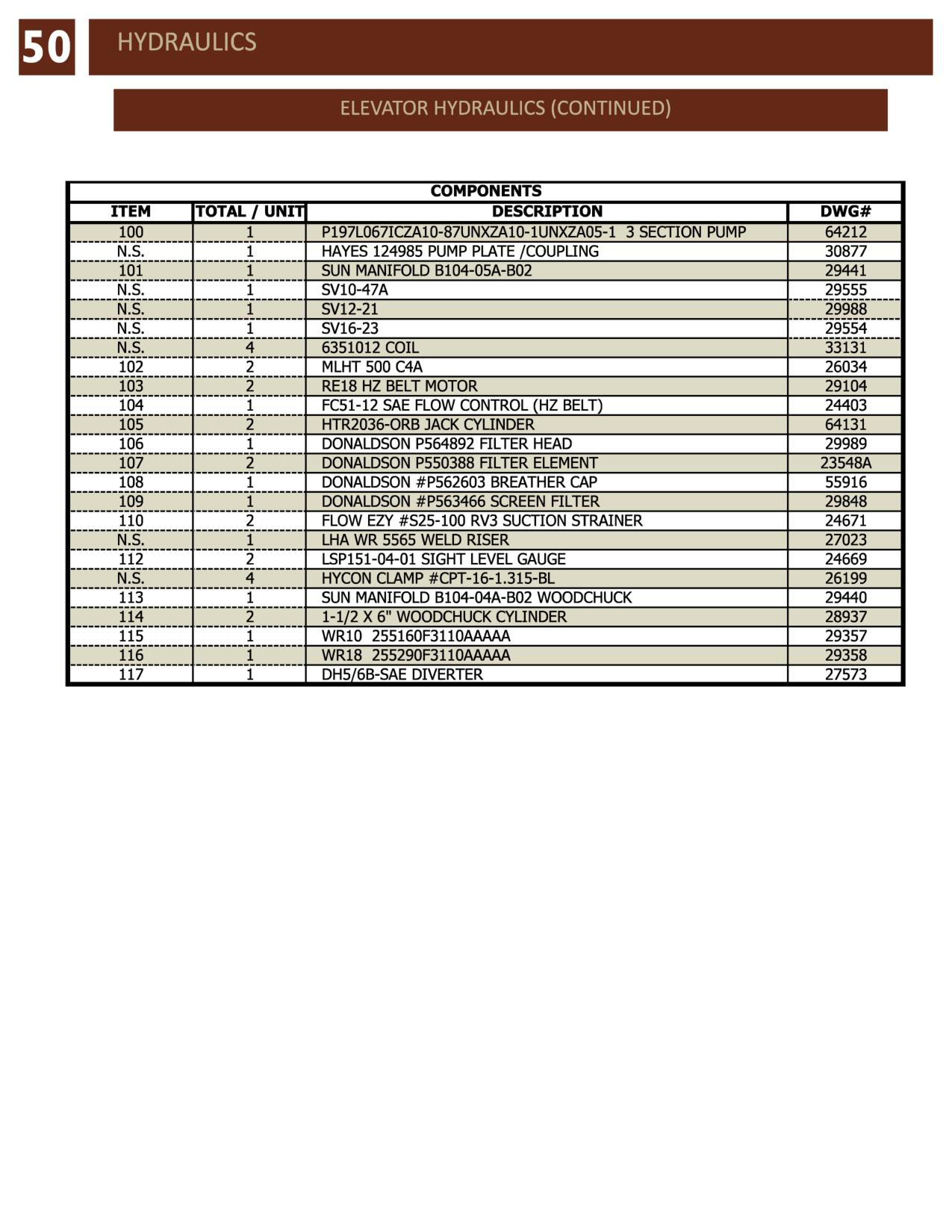

Elevator Hydraulics (Continued) - Components · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| N.S. | 30877 | HAYES 124985 PUMP PLATE /COUPLING | 1 |
| N.S. | 29555 | SV10-47A | 1 |
| N.S. | 29988 | SV12-21 | 1 |
| N.S. | 29554 | SV16-23 | 1 |
| N.S. | 33131 | 6351012 COIL | 4 |
| N.S. | 27023 | LHA WR 5565 WELD RISER | 1 |
| N.S. | 26199 | HYCON CLAMP #CPT-16-1.315-BL | 4 |
| 100 | 64212 | P197L067ICZA10-87UNXZA10-1UNXZA05-1 3 SECTION PUMP | 1 |
| 101 | 29441 | SUN MANIFOLD B104-05A-B02 | 1 |
| 102 | 26034 | MLHT 500 C4A | 2 |
| 103 | 29104 | RE18 HZ BELT MOTOR | 2 |
| 104 | 24403 | FC51-12 SAE FLOW CONTROL (HZ BELT) | 1 |
| 105 | 64131 | HTR2036-ORB JACK CYLINDER | 2 |
| 106 | 29989 | DONALDSON P564892 FILTER HEAD | 1 |
| 107 | 23548A | DONALDSON P550388 FILTER ELEMENT | 2 |
| 108 | 55916 | DONALDSON #P562603 BREATHER CAP | 1 |
| 109 | 29848 | DONALDSON #P563466 SCREEN FILTER | 1 |
| 110 | 24671 | FLOW EZY #S25-100 RV3 SUCTION STRAINER | 2 |
| 112 | 24669 | LSP151-04-01 SIGHT LEVEL GAUGE | 2 |
| 113 | 29440 | SUN MANIFOLD B104-04A-B02 WOODCHUCK | 1 |
| 114 | 28937 | 1-1/2" X 6" WOODCHUCK CYLINDER | 2 |
| 115 | 29357 | WR10 255160F3110AAAAA | 1 |
| 116 | 29358 | WR18 255290F3110AAAAA | 1 |
| 117 | 27573 | DH5/6B-SAE DIVERTER | 1 |
