Woodchuck · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

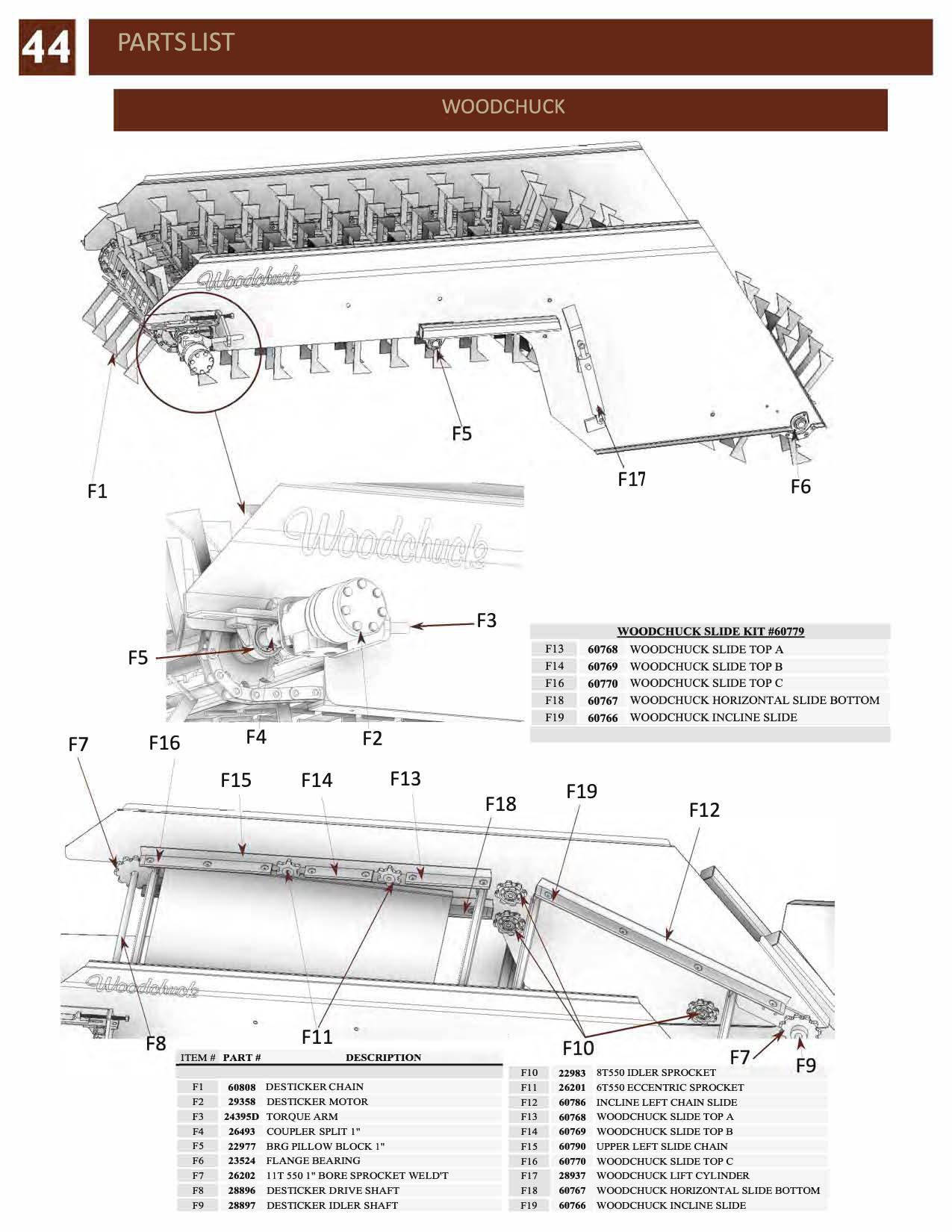

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| F13 | 60768 | WOODCHUCK SLIDE TOP A | |
| F14 | 60769 | WOODCHUCK SLIDE TOP B | |
| F16 | 60770 | WOODCHUCK SLIDE TOP C | |
| F18 | 60767 | WOODCHUCK HORIZONTAL SLIDE BOTTOM | |
| F19 | 60766 | WOODCHUCK INCLINE SLIDE | |
| F1 | 60808 | DESTICKER CHAIN | |
| F2 | 29358 | DESTICKER MOTOR | |
| F3 | 24395D | TORQUE ARM | |
| F4 | 26493 | COUPLER SPLIT 1" | |
| F5 | 22977 | BRG PILLOW BLOCK 1" | |
| F6 | 23524 | FLANGE BEARING | |
| F7 | 26202 | 11T 550 1" BORE SPROCKET WELD'T | |
| F8 | 28896 | DESTICKER DRIVE SHAFT | |
| F9 | 28897 | DESTICKER IDLER SHAFT | |
| F10 | 22983 | 8T550 IDLER SPROCKET | |
| F11 | 26201 | 6T550 ECCENTRIC SPROCKET | |
| F12 | 60786 | INCLINE LEFT CHAIN SLIDE | |
| F13 | 60768 | WOODCHUCK SLIDE TOP A | |
| F14 | 60769 | WOODCHUCK SLIDE TOP B | |
| F15 | 60790 | UPPER LEFT SLIDE CHAIN | |
| F16 | 60770 | WOODCHUCK SLIDE TOP C | |
| F17 | 28937 | WOODCHUCK LIFT CYLINDER | |
| F18 | 60767 | WOODCHUCK HORIZONTAL SLIDE BOTTOM | |
| F19 | 60766 | WOODCHUCK INCLINE SLIDE | |
| G1 | 29462 | Z BELT - CROSS CONVEYOR | |
| G2 | 29453 | CROSS CONVEYOR SEAL | |
| G3 | 29452 | SEAL HOLD DOWN | |
| G4 | 29357 | CROSS CONVEYOR MOTOR | |
| G5 | 24395E | TORQUE ARM | |
| G6 | 26493 | COUPLER SPLIT 1" | |
| G7 | 22977 | BRG PILLOW BLOCK 1" | |
| G8 | 26464C | BEARING PUSHER | |
| G9 | 26464B | BEARING PULLER | |
| G10 | 29443 | CROSS CONVEYOR IDLER PULLEY | |
| G11 | 29444 | CROSS CONVEYOR DRIVE PULLEY |
