← Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)
Cat C2.8 Engine Replacement Parts · Jackrabbit Jackrabbit PC 30-36 Pre-Cleaner (CAT 2.8L)

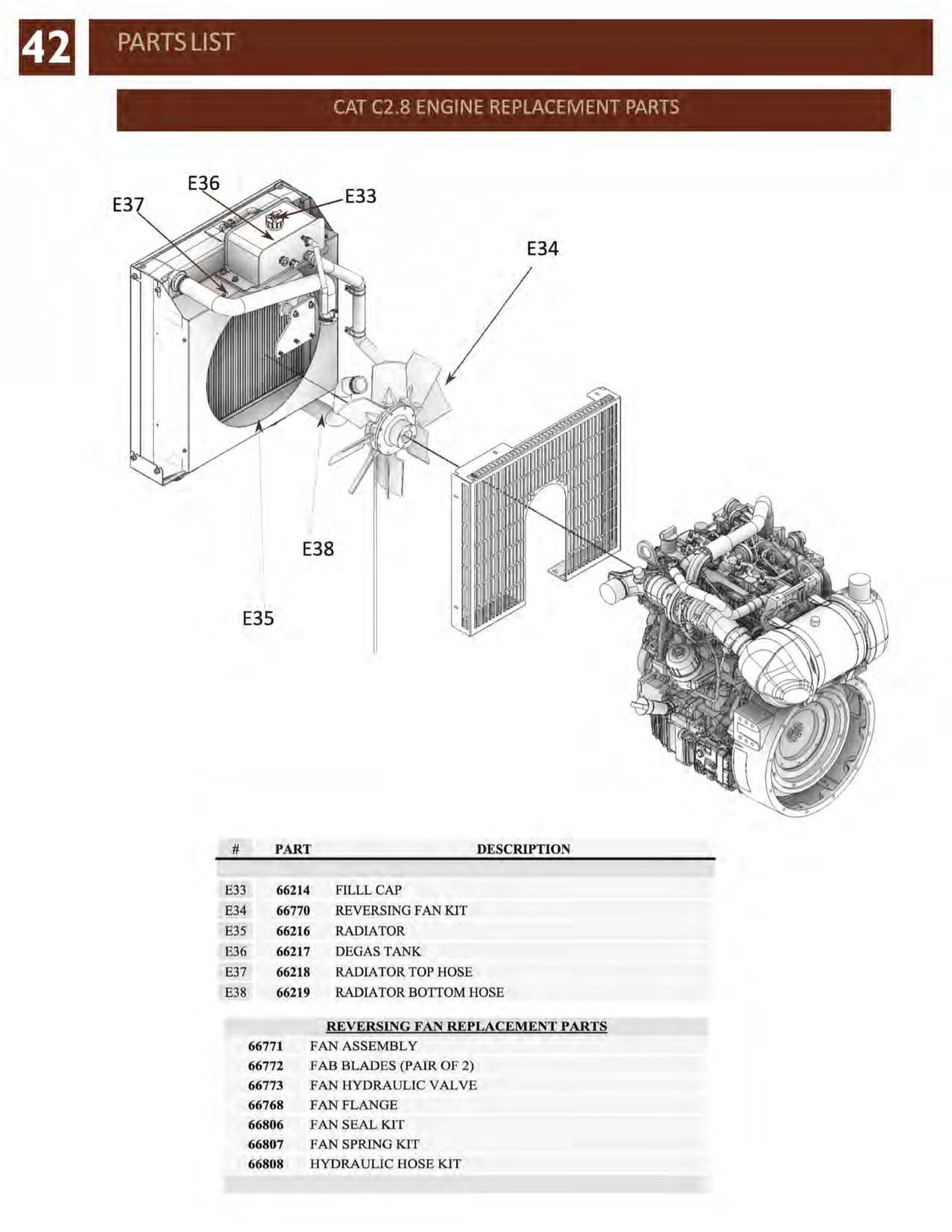

Tap a circled number on the diagram to identify the part.
✕
| # | Part number | Description | Qty |
|---|---|---|---|
| E33 | 66214 | FILLL CAP | |
| E34 | 66770 | REVERSING FAN KIT | |
| E35 | 66216 | RADIATOR | |
| E36 | 66217 | DEGAS TANK | |
| E37 | 66218 | RADIATOR TOP HOSE | |
| E38 | 66219 | RADIATOR BOTTOM HOSE | |
| 66771 | FAN ASSEMBLY | ||
| 66772 | FAB BLADES (PAIR OF 2) | ||
| 66773 | FAN HYDRAULIC VALVE | ||
| 66768 | FAN FLANGE | ||
| 66806 | FAN SEAL KIT | ||
| 66807 | FAN SPRING KIT | ||
| 66808 | HYDRAULIC HOSE KIT | ||
| E2 | 66165 | STARTER | |
| E4 | 66167 | WATER PUMP | |
| E5 | 66168 | WATER PUMP GASKET | |
| E8 | 66172 | COOLANT TEMP SENSOR | |
| E9 | 66175 | NRS (EGR) INLET TEMP SENSOR | |
| E10 | 66176 | NRS (EGR) OUTLET TEMP SENSOR | |
| E11 | 66177 | NRS (EGR) DIFF PRESSURE SENSOR | |
| E12 | 66178 | INTAKE MANIFOLD PRESSURE SENSOR | |
| E13 | 66179 | INTAKE MANIFOLD PRESSURE SENSOR SEAL | |
| E14 | 66180 | INTAKE MANIFOLD TEMP SENSOR | |
| E15 | 66181 | INTAKE MANIFOLD TEMP SENSOR SEAL | |
| E16 | 66182 | FUEL TEMP SENSOR | |
| E17 | 66183 | FUEL RAIL PRESSURE SENSOR | |
| E20 | 66186 | SECONDARY SPEED POSITION SENSOR | |
| E21 | 66187 | SECONDARY SPEED POSITION SENSOR SEAL | |
| E22 | 66188 | EXHAUST TEMP SENSOR (DPF) | |
| E23 | 66189 | EXHAUST PRESSURE SENSOR (DPF) | |
| E24 | 66190 | FUEL INJECTOR | |
| E25 | 66191 | HIGH PRESSURE FUEL PUMP | |
| E26 | 66192 | HIGH PRESSURE CONTROL VALVE | |
| E27 | 66202 | INTAKE THROTTLE VALVE | |
| E30 | 66207 | EGR VALVE | |
| E32 | 66213 | FAN BELT |
